Kramer AV CA-HM-82
Active High Speed HDMI Cable with Ethernet

Description

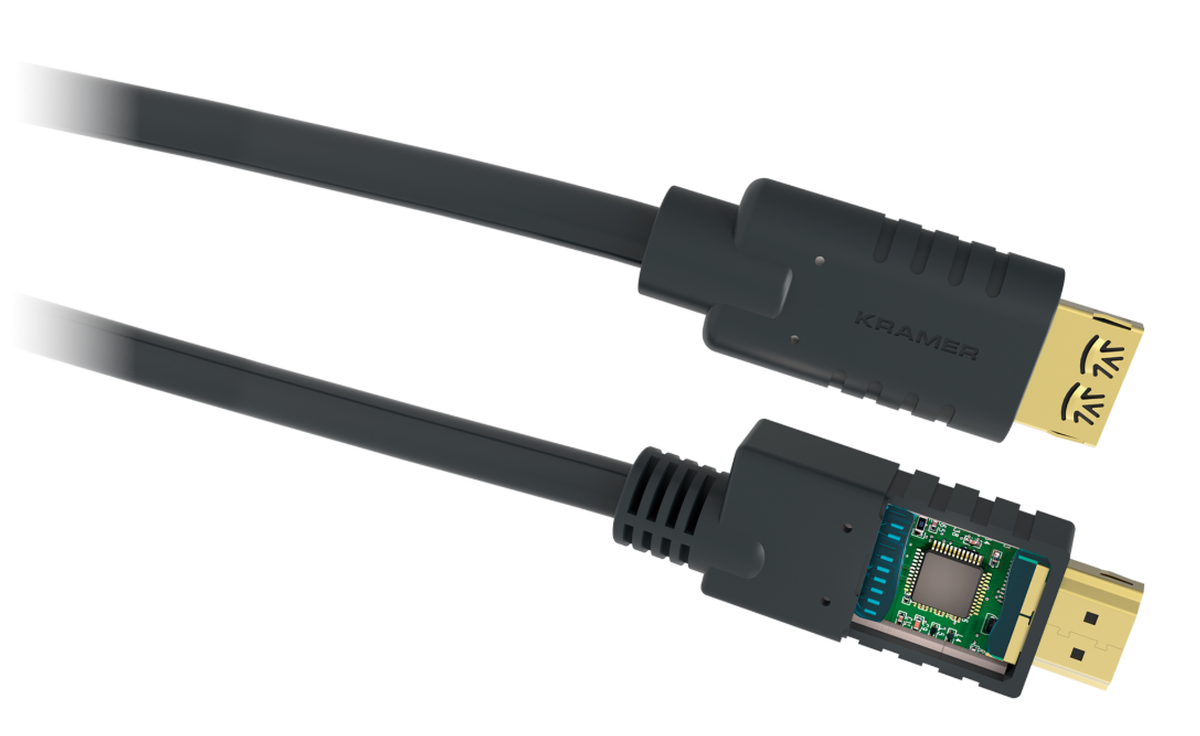

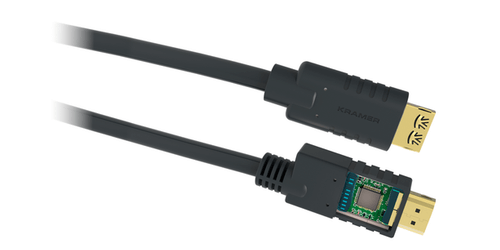

Kramer's CA-HM-82 active HDMI copper cable provides a perfect cable solution for delivering HDMI signals 82 feet. The innovative cable’s connector features superior equalizing and signal compensation to meet the most demanding challenges in professional AV installations.

This unique solution simplifies long distance installations by using a true plug and play cable that draws power from the HDMI source. There is no need for an external power source.

• Video Resolution: Up to 4K@60Hz (4:4:4)
• High Data Transfer Rate: Up to 18Gbps
• HDMI Support: HDCP 2.2, HDR, EDID, ARC, and CEC
• Deep Color x.v.Color, 5.1/7.1 lossless Dolby TrueHD and DTS-HD surround sound
• High-quality Connectors: 24K gold-plated, corrosion-resistant connectors
• Pull-resistant: K-Lock connectors with 15 lbs of restraining force
• Triple Shielded: For maximum EMI protection
• UL Listed: CL3/FT4 rated for in-wall installations
• Varied Selection of Lengths: Available in versions of 15 to 98 ft

Specifications

• Supported Formats: Dolby Digital Plus, Dolby TrueHD, DTS HD Master Audio, DVD Audio, SA CD
• Physical
• HDMI Source on a male type-A, 24K gold-plated K-Lock connector
• HDMI Display on a male type-A, 24K gold-plated K-Lock connector (optional external power input via micro USB connector)
• Conductors
• 66-98ft lengths: 24AWG
• Screening
• TMDS pairs: Aluminum/mylar
• Overall: Aluminum/mylar + aluminum braid
• Jacket
• Material: PVC
• Color: Black
• Diameter - 66-98 ft lengths: 9.5 0.25mm
• Mechanical
• Cable Bending radius - 66-9 8ft lengths: 47.5mm
• Connector Max. Pulling Strength: 15lbs
• Electrical
• Power Consumption: 90mA (18Gbps)/ 1mA (standby mode)
• Temperature Rating: 80 C
• Voltage Rating: 30V
• Conductor Resistance: 24AWG: 381 /km
• Regulatory
• Electrical: UL listed, CL3/FT4 Environmental: RoHS 2011/65/EU
• Warranty
• 7 years limited
