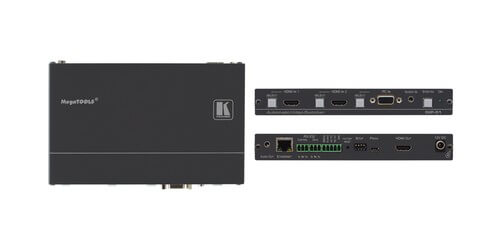

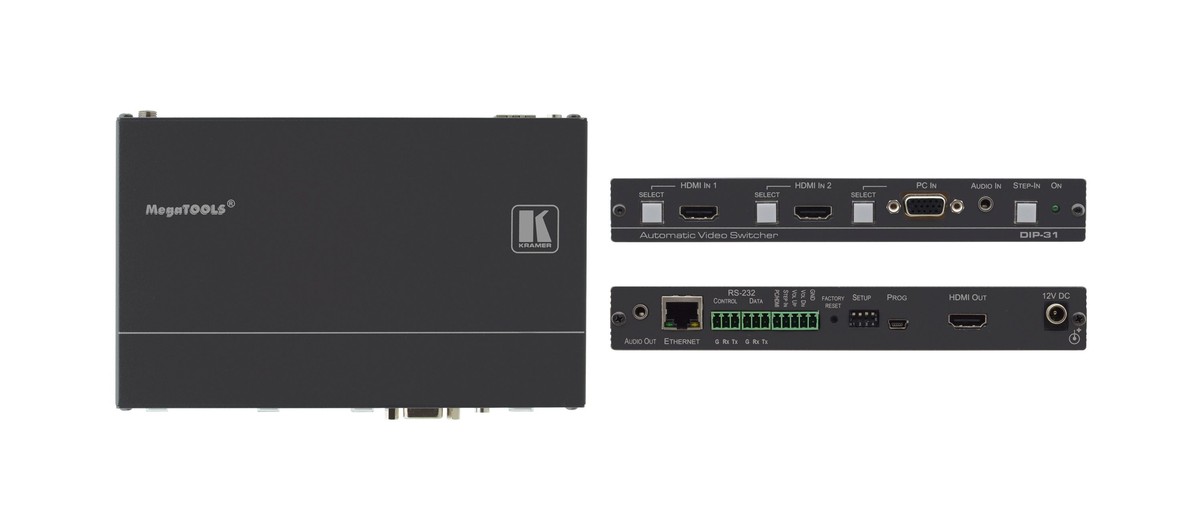

Kramer AV DIP-31
4K/60 4:2:0 HDMI & Computer Graphics Automatic Video Switcher
- Inputs: 2 x HDMI, 1 x VGA, 1 x unbalanced stereo audio 1V RMS on 3.5mm mini jack
- Outputs: 1 x HDMI, 1 x unbalanced stereo audio 1V RMS on 3.5mm mini jack
- Maximum Resolution: 4K@60Hz (4:2:0) UHD and WUXGA
- Maximum Data Rate: 10.2Gbps (3.4Gbps per channel)
-Chad R.
Description

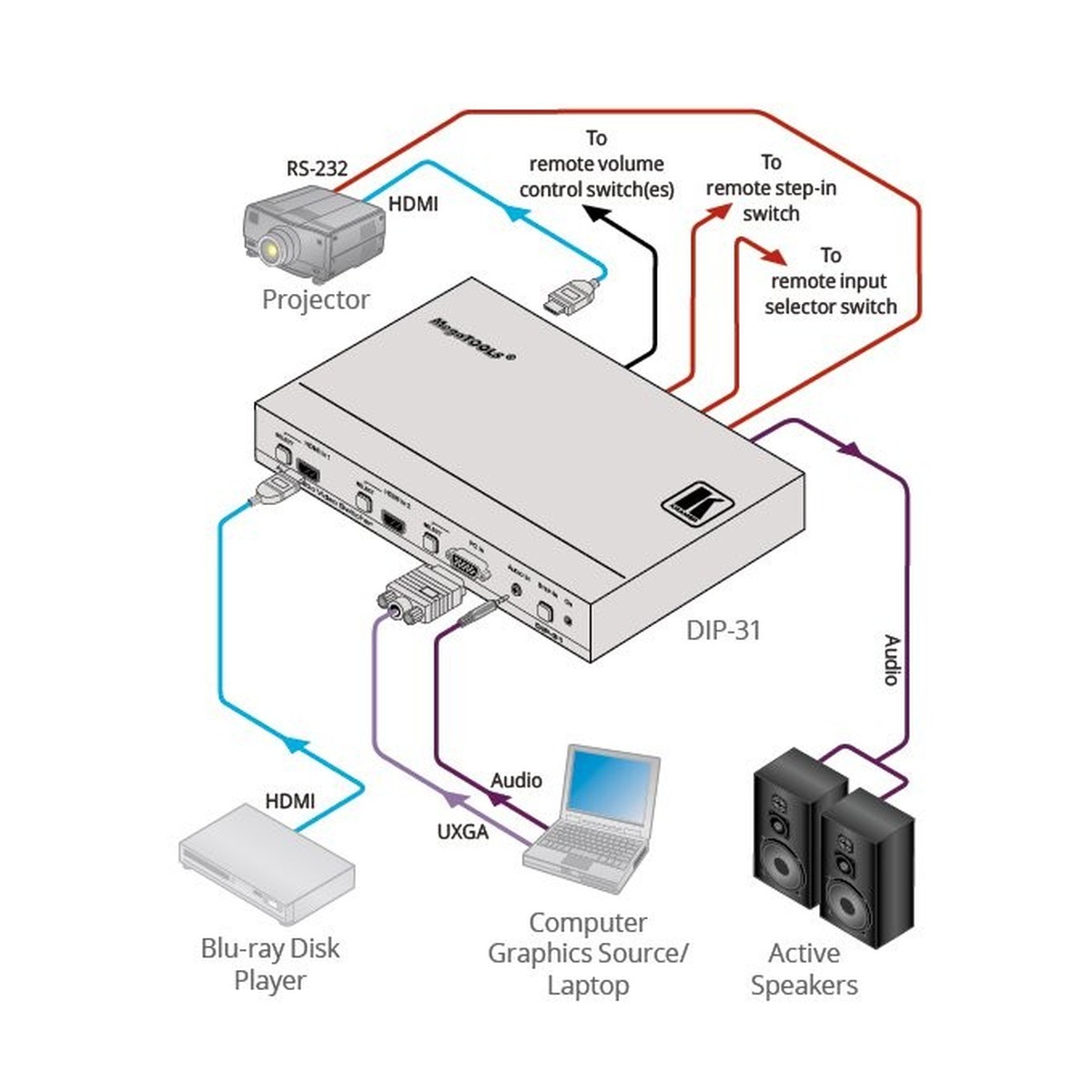

The DIP-31 from Kramer is a 4K UHD Mult-Format Auto Switcher for HDMI, VGA, Ethernet, data and unbalanced audio signals. This unit will support digital video resolutions up to 4K/60Hz (4:2:0) UHD at 10.2Gbps and various modes of input selection and transmits the signal via HDMI cable to a compatible receiver for when connection directly to a display or projector. When connected to a matrix switcher the DIP-31 is a Step-in commander that supports Step-in over HDMI such as the VS-62H (not included). It also features RS-232 commands to support monitor/projector on/off control. This unit is HDTV compatible and is HDCP compliant with sources that support HDCP repeater mode. HDMI support includes Deep Color, x.v Color and 3D. Automatic live input detection is based on video clock presence while automatic input selection is based on priority selection or last connected input, there is also manual input selection for further flexibility and control. The DIP-31 offers convenient control via Kramer Protocol 3000 and embedded Web pages over LAN or via RS-232 command support. The I-EDID Pro Kramer Intelligent EDID Processing is built-in and is a intelligent EDID handling & processing algorithm that ensures Plug and Play operation for HDMI systems.
The Kramer DIP-31 is a perfect solution for display systems requiring simple automatic input selection, multimedia and presentation source selection, or in video distribution settings like in hotel rooms and schools. This device comes with its own power adapter and DisplayPort to HDMI adapter cable for connecting a DisplayPort source to the HDMI input, and is backed by a 7 year warranty from Kramer.
Specifications
- Ports: 1 x Ethernet on an RJ 45 connector, 1 x RS 232 3 pin terminal block control port, 1 x RS 232 3 pin terminal block data port (internal use), 1 x USB on mini USB connector
- HDTV Compliant
- HDCP Compliant: With sources that support HDCP repeater mode
- HDMI Support: Deep Color, x.v. Color and 3D
- Automatic Live Input Detection: Based on video clock presence
- Automatic Input Selection: Based on priority selection or last connected input
- Manual Input Selection
- Step-in Support
- Automatic Analog Audio Detection & Embedding
- Control: Via Kramer Protocol 3000 and embedded Web pages over a LAN
- RS-232 Command Support
- I-EDIDPro Kramer Intelligent EDID Processing: Intelligent EDID handling & processing algorithm ensure plug and play operation for HDMI systems
- Rack Mounting: 2 units can be mounted side-by-side in a 1U rack space
- Included Accessories: Power adapter, ADC-DPM/HF DisplayPort (M) to HDMI (F) adapter cable (for connecting a DisplayPort source to the HDMI input)
- Warranty: 7 Years
