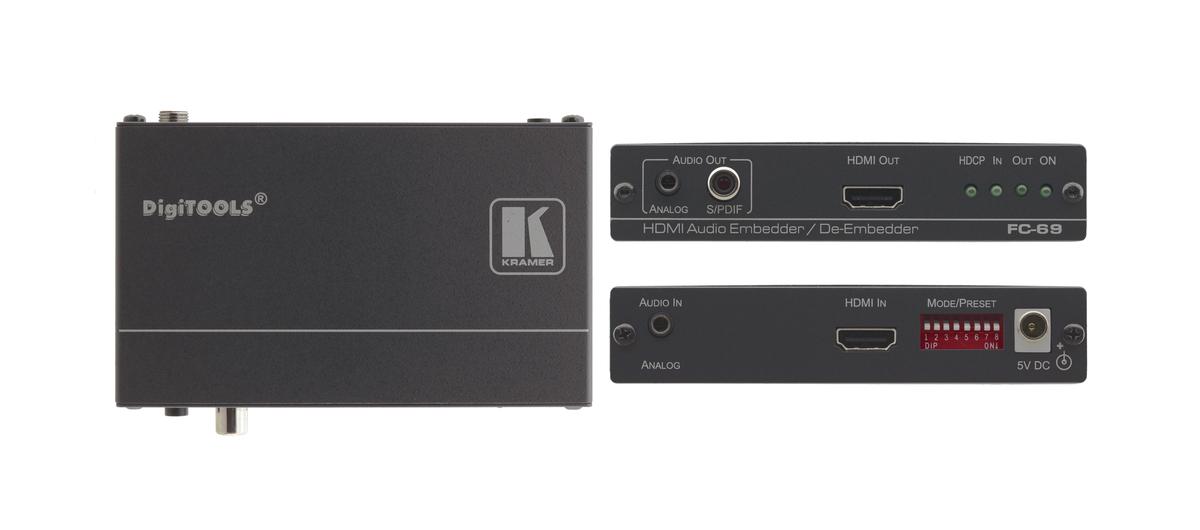

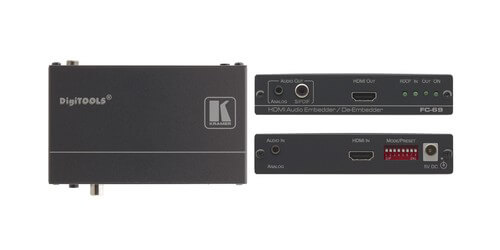

Kramer AV FC-69
4K HDMI Audio De-embedder and Analog Embedder
- Inputs: 1 HDMI, one 3.5mm audio
- Outputs: 1 HDMI, 1 S/PDIFF, one 3.5mm audio
- Data Rate: 8.91Gbps
- Resolution: Up to 4K@60Hz (4:2:0) UHD, 4Kx2K
Description
The Kramer FC-69 is a 4K HDMI audio de-embedder and also embedder. It can embed analog audio to the HDMI output or de-embed the audio from the HDMI input, the audio can also be de-embedded on the output via Audio Return Channel (ARC) to S/PDIF, as well as unbalanced stereo audio outputs at the same time. The FC-69 is HDCP compliant and will also reclock and equalize the signal allowing your HDMI to be sent further. There is a sleep mode function that will turn off your display when no video is being detected. The unit can be controlled via DIP switches that allow locking and modifying EDID, HDCP, embedding/de−embedding, and sleep mode functionality.
The Kramer FC-69 can handle your Ultra HD 4K signals and is easy to operate with LED indicator lights, the 7 year warranty is an added bonus for long term operation.
Specifications
- HDMI Support: ARC and HDMI uncompressed audio channels, 36-bit deep color, CEC
- Embedding: Analog audio to the HDMI output
- De-embedding: Audio from the HDMI input, the audio can also be de-embedded on the output via Audio Return Channel (ARC) to S/PDIF, as well as unbalanced stereo audio outputs at the same time
- LED status lights
- Includes: Power supply
- Sleep mode automatically turns off display
- HDTV Compatible
- HDCP compliant
- 8 way dip switch control
- Warranty: 7 years
