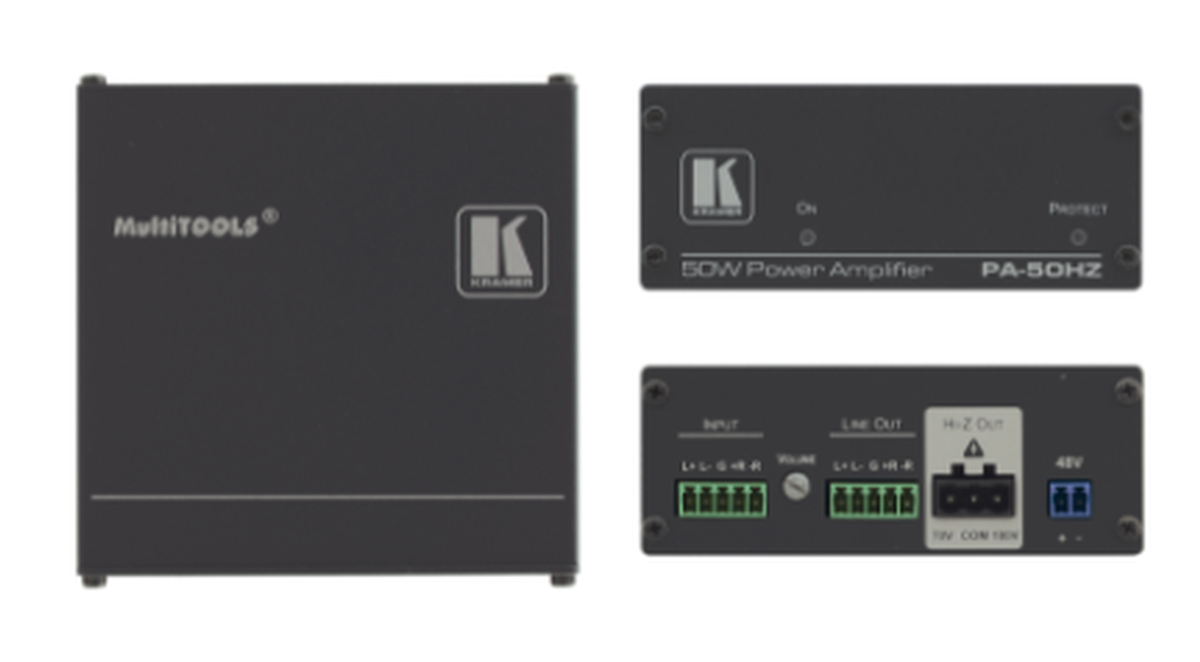

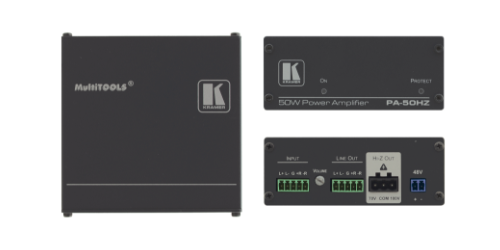

Kramer AV PA-50HZ
Power Amplifier, 50W @70V/100V

Description

Kramer's PA-50HZ (PA-50Z) is a compact Hi-Z (70V/100V) power amplifier with line-level output.

Features

• Simple and flexible speaker array installation.

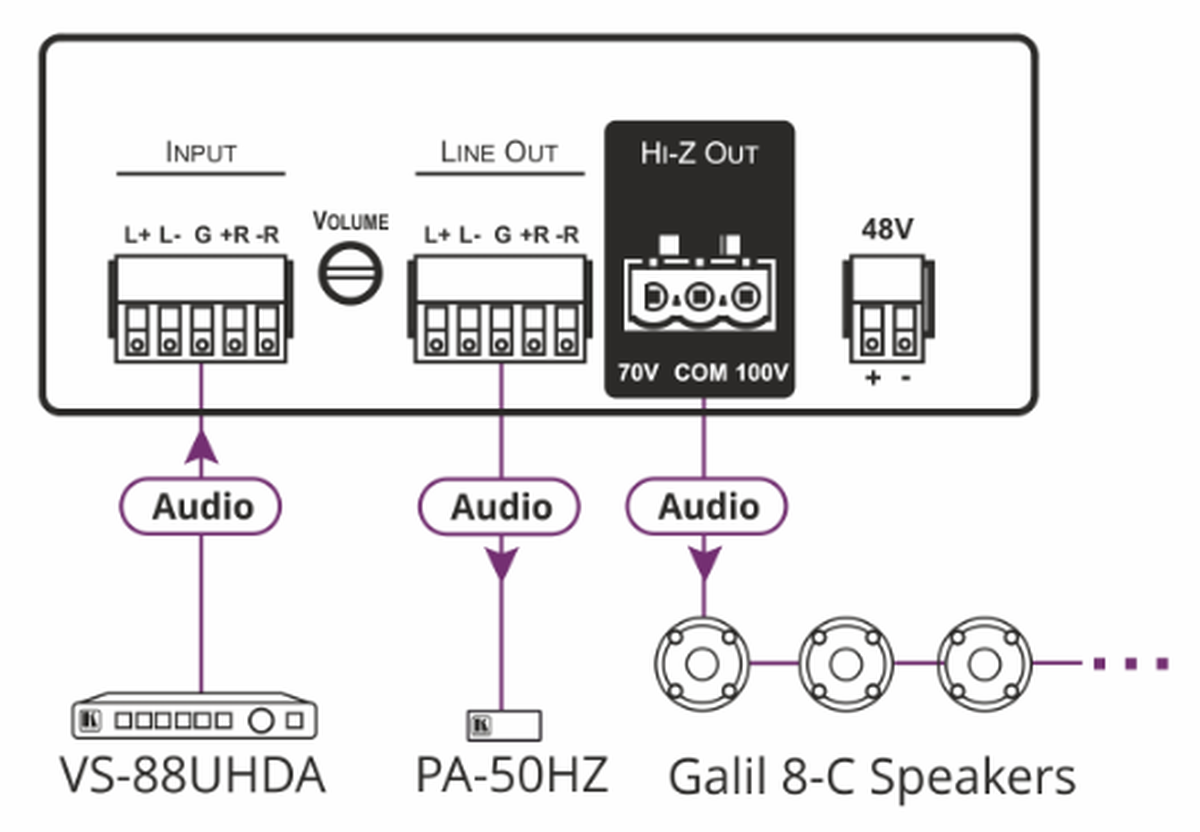

• Line level output for cascading, recording or conferencing scenarios.
• Small form factor and convection cooling for simple installation.
• 50W of power into a 70V or 100V line.

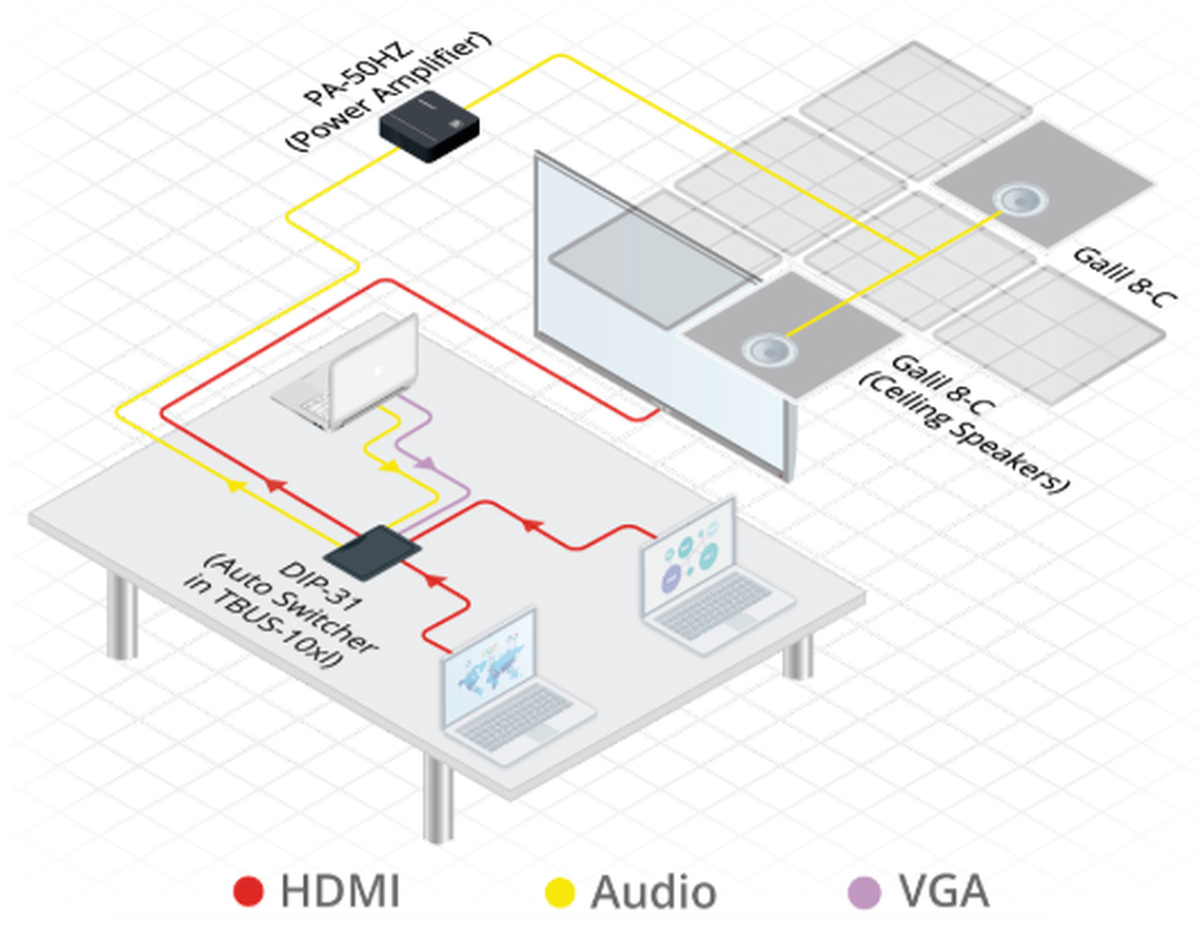

Applications

• Small to medium-size meeting spaces
• Classrooms and educational facilities

Specifications

• 1 Mono Speaker: On a 3-pin large terminal block
• Input Sensitivity
• Full power @1.5V (+5dBV)
• Amplifier
• Class: D
• Output Power: 1 x 50W @ 70V or 100V
• Maximum Voltage Gain: 37dB BTL
• Dynamic Range: >120dB
• Frequency Response: Speaker output 50Hz to 20kHz @ +/ 3dB
• Frequency Response: Line level output 20Hz to 20kHz @ +/ 0.3dB
• S/N Ratio: 90dB, 20 Hz 20 kHz
• Audio THD + Noise: Speaker output THD+N (1kHz @ 1W) 0.01 %
• Audio 2nd Harmonic: 0.00006%
• Controls: Screw trimmer input volume attenuator
• Power
• Consumption: 48V DC, 1.2A
• Source: 48V DC, 1.36A
• Environmental Conditions
• Operating Temperature: 32 to 104 F
• Storage Temperature: 40 to 158 F
• Humidity: 10% to 90%, RHL non-condensing
• Regulatory Compliance
• Safety: CE, UL
• Environmental: RoHs, WEEE
• Enclosure
• Size: 1/4 19" 1U
• Type: Aluminum
• Cooling: Convection Ventilation
• Accessories
• Included: Power adapter, power cord
• Optional: RK 1 rack adapter
• Product Dimensions
• 4.20" x 4.07" x 1.72" W, D, H Product Weights
• 1.7lbs approx.
• Shipping Dimensions
• 9.13" x 5.35" x 3.94" W, D, H
• Shipping Weight
• 3.0lbs approx.
