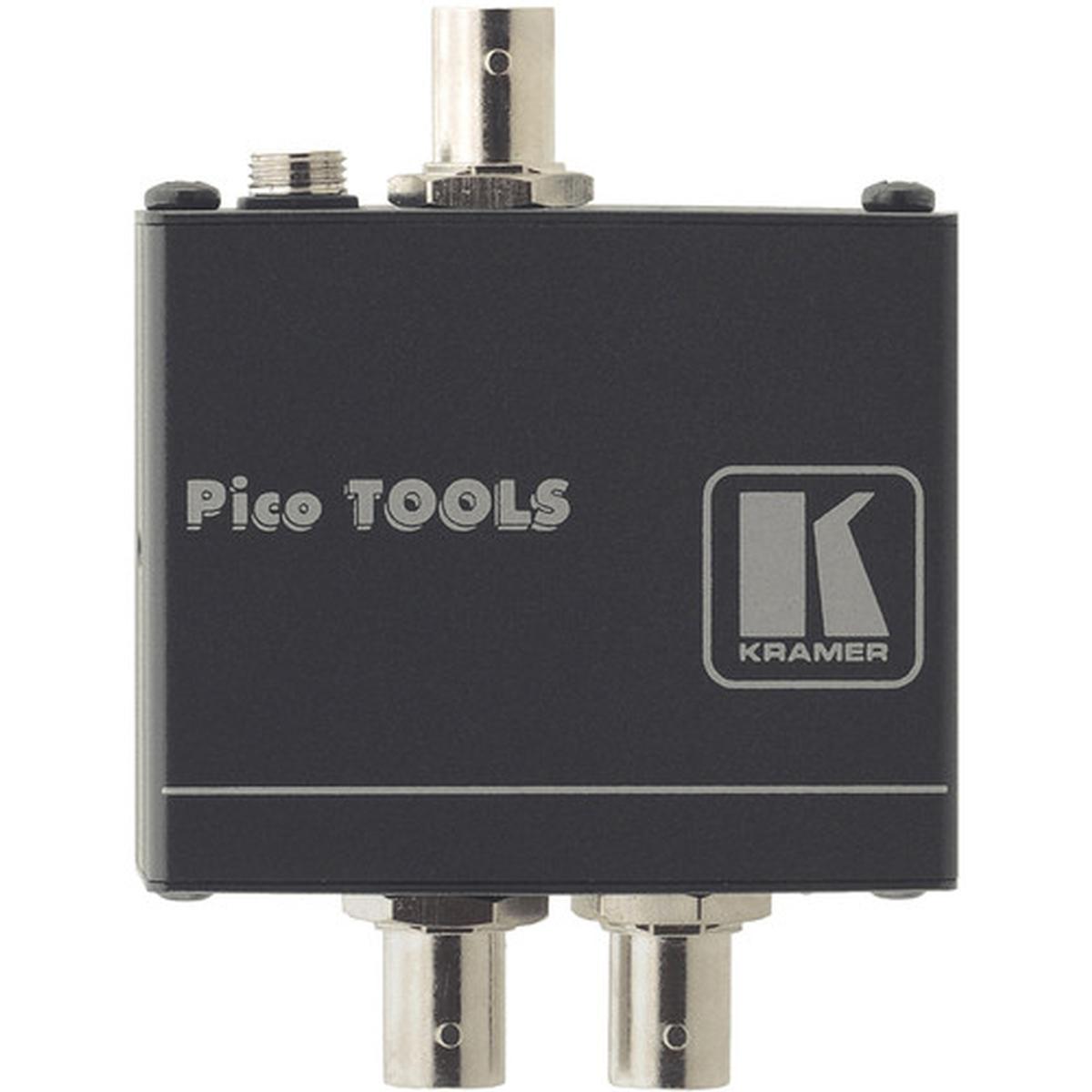

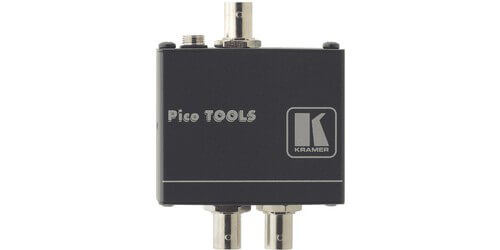

Kramer AV PT-102VN
1:2 Composite Distribution Amplifier
- 1x2 Composite Distribution Amplifier
- Inputs: 1 composite or SDI video on BNC connector
- Outputs: 2 composite or SDI video on BNC connectors
- Supports AC Coupling
-Patrick S.
Description

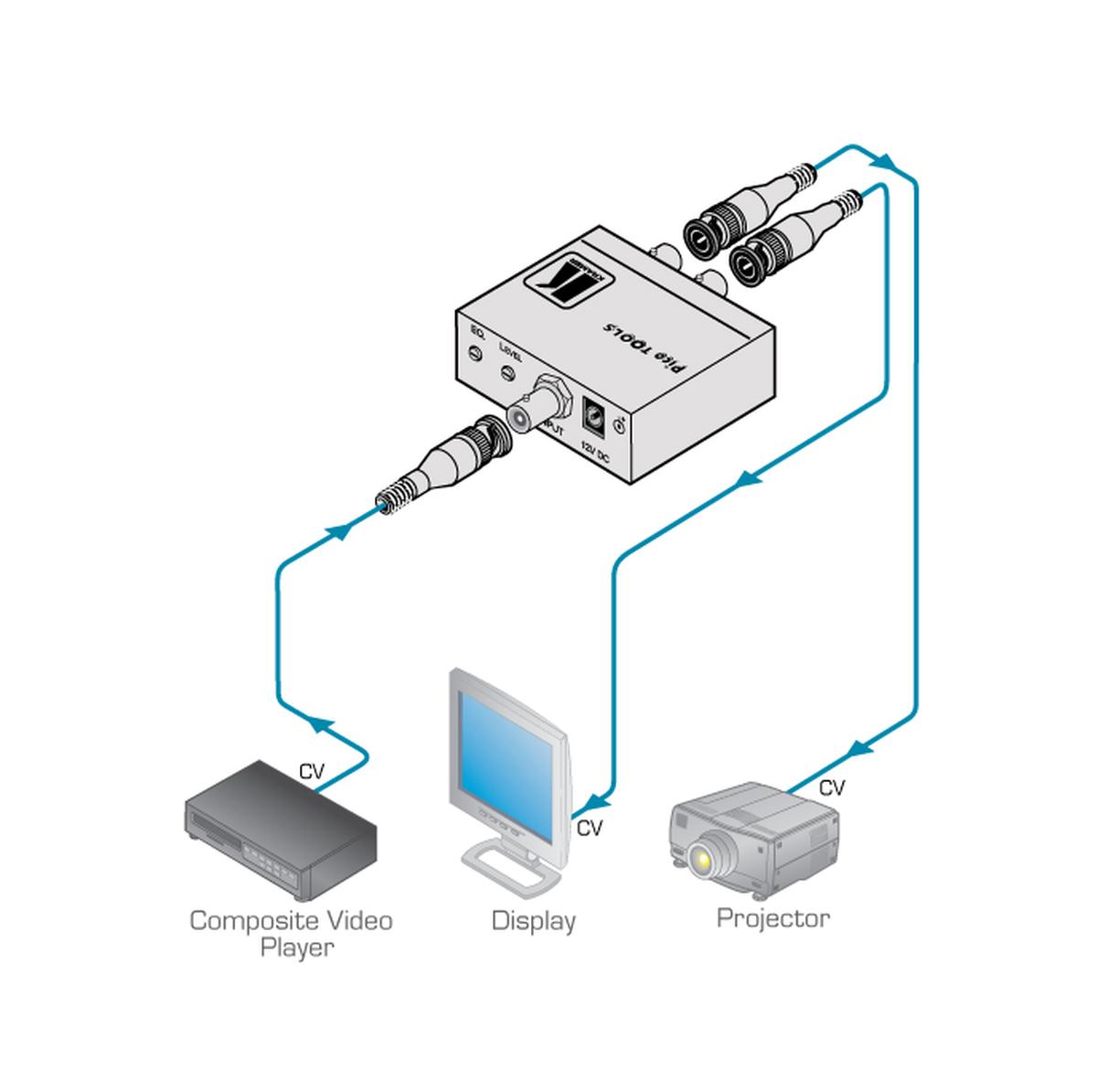

The PT-102VN by Kramer is a distribution amplifier for composite video or SDI signals. It will take one input, provide correct buffering and isolation and distribute the signal to two identical outputs. This amplifier is ideal in video duplication studios where you have display systems that require the same images displayed on several monitors like in CCTV and home theater use. The PT-102VN offers gain and equalization control to compensate for cable losses. A high video bandwidth of 430 MHz ensures a quick response time for most of the applications. You also have the option to connecting this device to a high-resolution video switcher to increase the number of inputs.

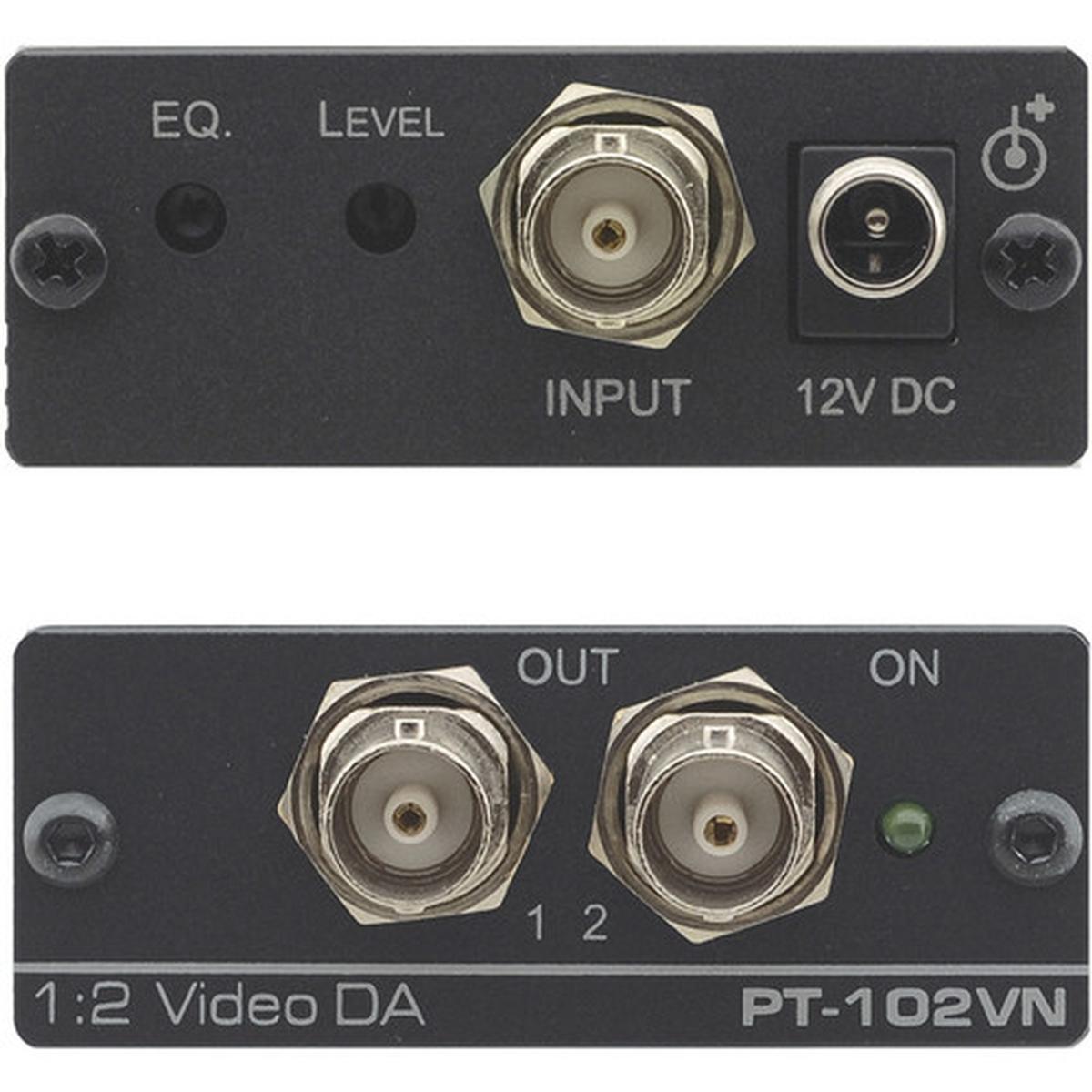

The PT-102VN 1x2 has 1 composite or SDI video input, and 2 composite or SDI video outputs, all on BNC connectors. It supports AC coupling and with the help of the trimmers provided on the front panel, the gain of the amplifier can be controlled .This amplifier can be fitted into an optional RK-13 rack adapter for mounting up to four units side-by-side in a 1 RU space. The PT-120VN comes with a 7 year warranty from Kramer.
Specifications
- Provides Level and EQ Control
- Max. Video Output: 2Vpp
- Video Bandwidth: 430MHz
- Diff. Gain: 0.05%
- Diff. Phase: 0.05Deg
- S/N Ratio: 76.1dB
- Control: Gain: 1.2 to +6dB / EQ.: 0 to +7.5dB @50MHz via trimmers accessible from the front panel
- Power Consumption: 12V DC
- Included Accessories: Power Supply
- Dimensions: 2.45" x 2.04" x 0.96" (W, D, H)
- Weight: 0.3lbs
- Warranty: 7 Years
