Kramer AV PT-871/2XR-KIT
4K HDR HDMI Compact PoC Extender Over Long-Reach DGKat 2.0

Description

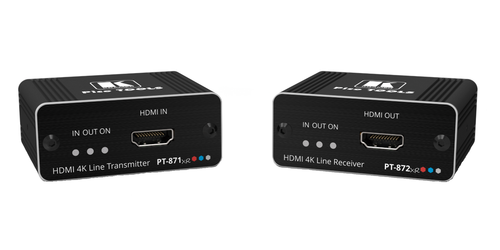

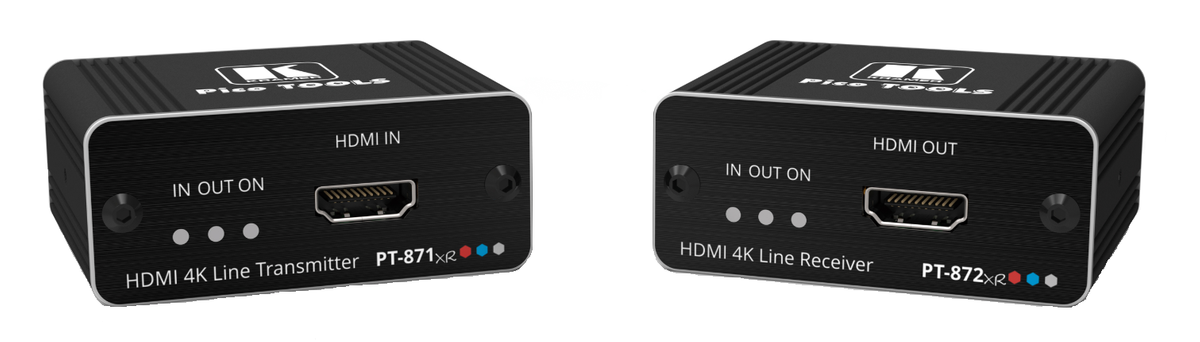

Kramer's PT-871/2XR-KIT is an extender kit containing a transmitter and receiver. The PT-871/2XR-KIT is a high-performance, long-reach DGKat 2.0 extender kit for 4K@60Hz (4:4:4) HDR HDMI 2.0 and HDCP 2.2 signals. This kit features 2-way power over twisted pair. PT-871/2XR-KIT extender employs low-level video compression technology.

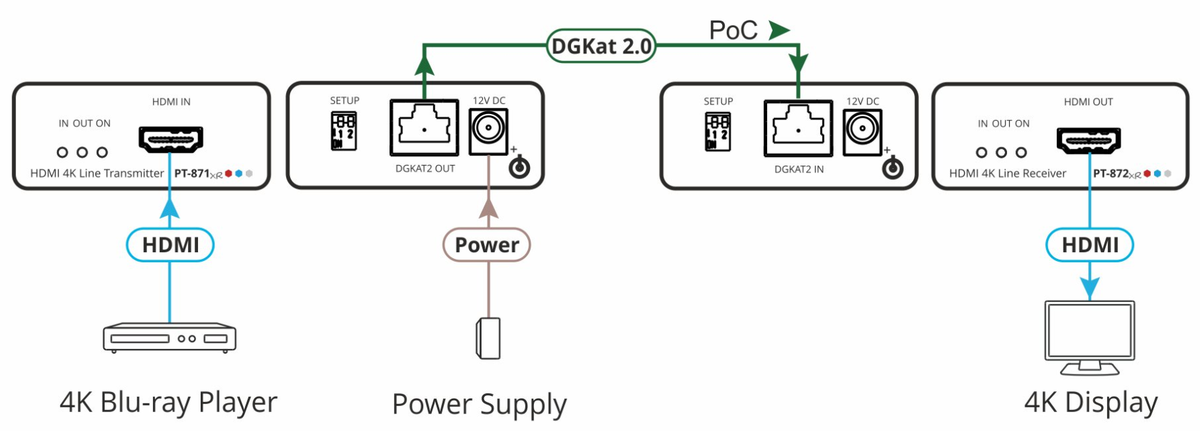

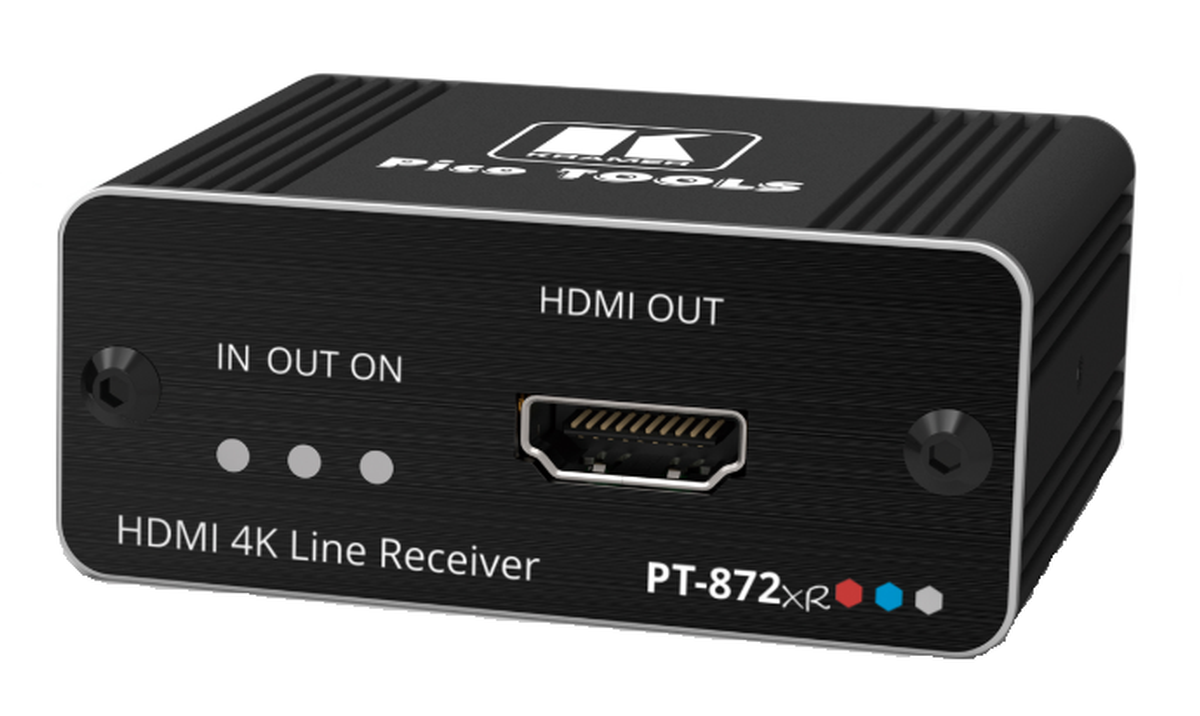

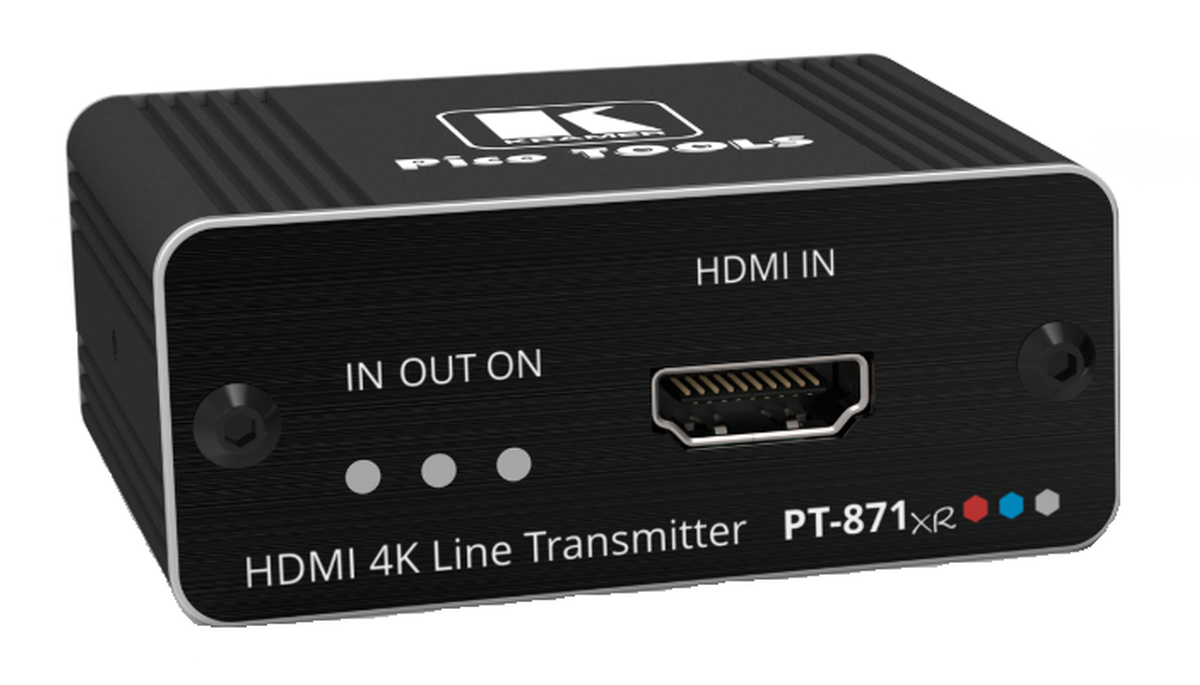

The PT-871XR transmitter converts the HDMI input signal into a DGKat 2.0 signal, while the PT-872XR receiver converts the transmitted DGKat 2.0 signal into an HDMI signal. Extend 4K video signals to up to 200 ft at 4K@60Hz (4:4:4) resolution or up to 230 ft at 4K@60Hz (4:2:0) 24bpp resolution over Kramer shielded cables.

Key Features

• Delivers lossless performance for 4K@60Hz (4:4:4) HDR signals with near-zero latency
• HDR, HDMI 2.0, and HDCP 2.2 compliant
• Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D
• EDID signals are passed from source to display
• Intelligent EDID handling, processing, and pass-through algorithm ensures Plug and Play operation for HDMI source and display systems
• Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound

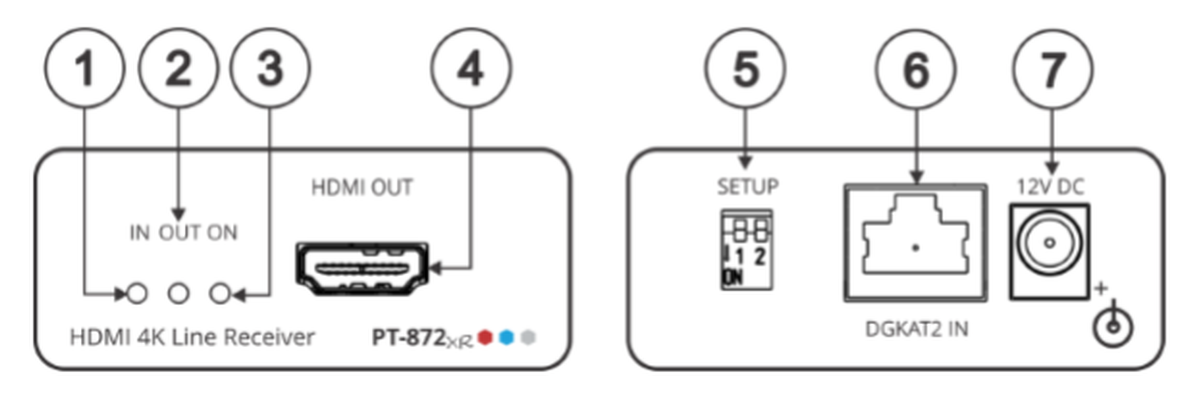

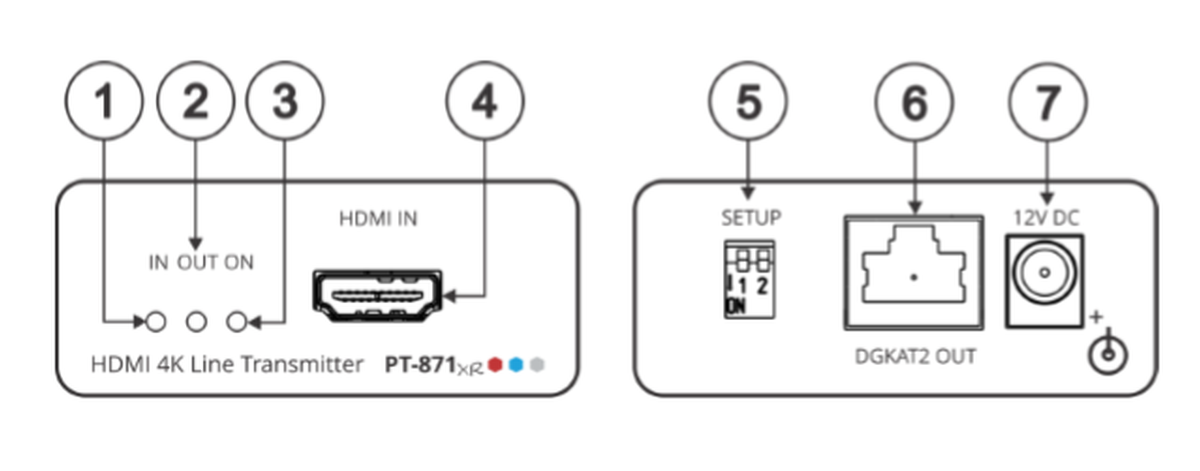

• Status LED indicators for HDMI and DGKat 2.0 ports
• Compact Pico TOOLS fan-less enclosure for mounting

Specifications

• 1 DGKat: On an RJ-45 female connector for extension line (PT-871XR)
• 1 HDMI: On an HDMI female connector (PT-872XR)
• Video
• Transmitted Data Bandwidth: Up to 18 Gbps (6 Gbps per graphic channel)
• Max Resolution at High Compression Level: 3840x2160@60Hz (4:4:4) 24 bpp
• Max Resolution at Standard Compression Level: 4096x2160@60Hz (4:4:4) 24 bpp
• Standards Compliance: HDR10, HDMI 2.0, HDCP 2.2
• High Compression Reach Extension
• Up to 60m (200ft) at 4K@60Hz (4:4:4)
• Up to 70m (230ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)
• Note: When using shielded UNIKAT cables
• Standard Compression Reach Extension
• Up to 130 ft at 4K@60Hz (4:4:4)
• Up to 230 ft at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)
• Note: When using shielded UNIKAT cables
• Extension Line
• Signal Compression: Standard low-level compression is applied to line-transmitted signals above 1080p resolution. The user can apply high-level compression to all line-transmitted signals
• Compliance: DGKat 2.0
• User Interface
• Indicators: IN, OUT, and ON LEDs
• Controls: Dip-switches to define compression level
• Power
• Source: 12V DC, 2A
• Consumption: 600mA
• Enclosure
• Size: Pico Tools
• Type: Aluminium
• Cooling: Convection ventilation
• Accessories
• Included: 1 power adapter with cord, 2 bracket sets
• Optional: RK-4PT 19" rack adapter
• Regular
• Safety: CE, UL
• Environmental: RoHs, WEEE
• Dimensions
• 2.45" x 2.04" x 0.96" (W x D x H)
• Product Weight
• 0.5 lbs
• Shipping Dimensions
• 6.18" x 4.72" x 3.43" (W x D x H)
• Shipping Weight
• 1.4 lbs
