Kramer AV TBUS-10xl-KIT5
Conference Room Multi-Connection Table Box, Retracting Lid

Description

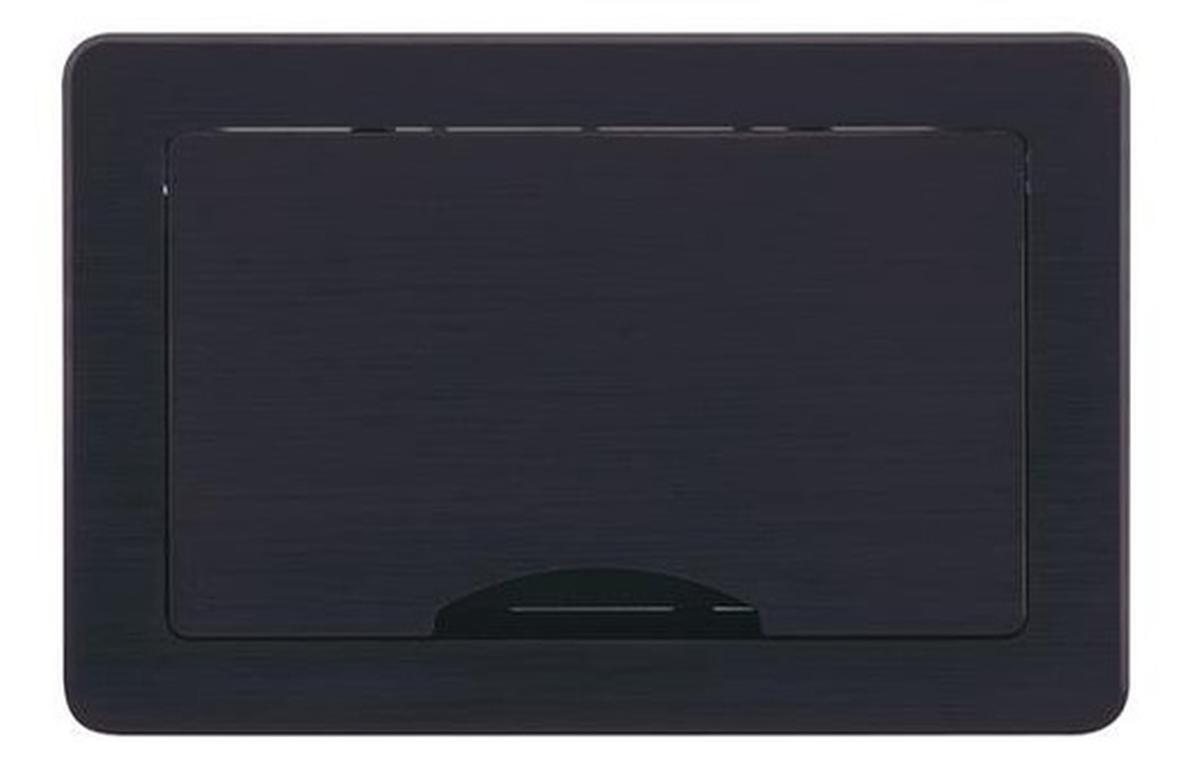

The Kramer TBUS-10xl-KIT5 is a modular table well box kit includes the most desired connections in a conference room setting.  The tilting lid also retracts down into the unit when needed, the lid also has an opening that allows cables to be plugged in with the lid closed.

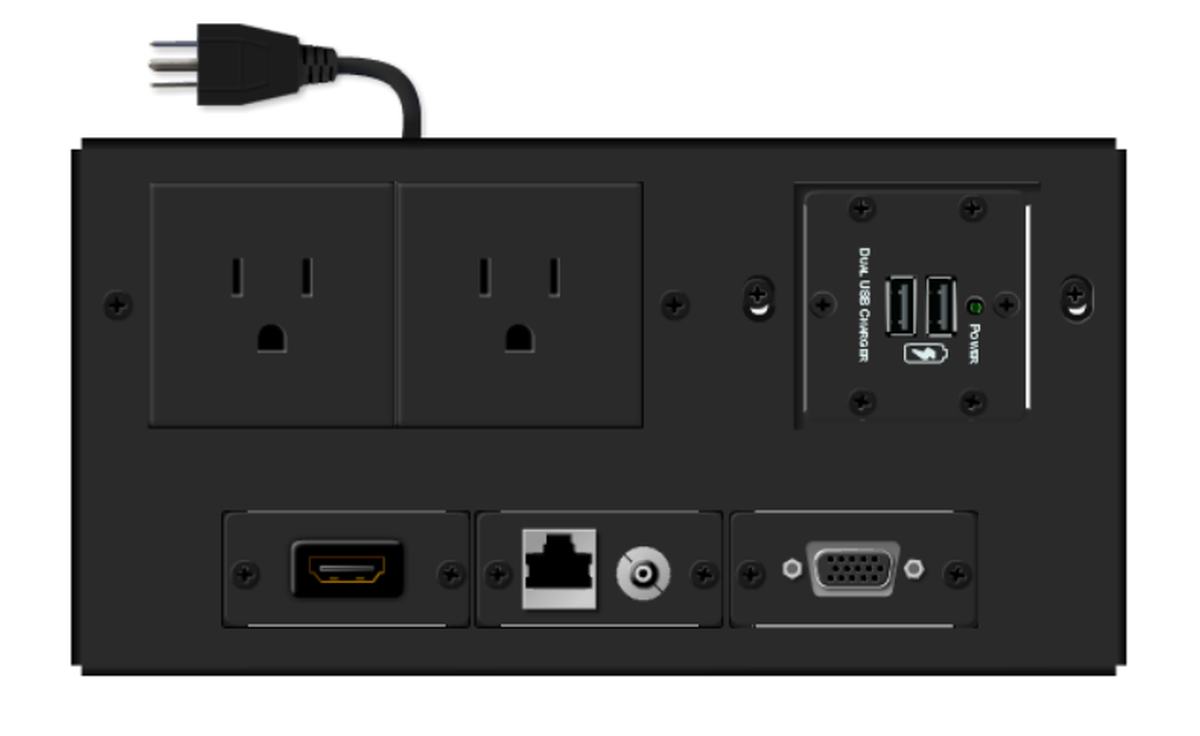

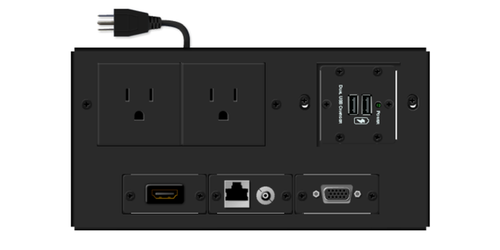

The kit includes 2 power with one 6' cord, 1 HDMI, 1 data, 1 VGA, 1 audio, and 2 charging USB ports. All the connections are F-F for easy plug and play.

Choose between black anodized aluminum and (silver) clear anodized aluminum.

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Cutout dimensions: 9.65" x 6.08"
• The box is 5.1" deep, you can install the connections at different levels in the box in case you need space for cable storage
• Will work in tables from 3/4" to 3" thick
• Mounting hardware included
• Warranty: 7 years

Downloads

• Kramer AV TBUS-10xl-KIT5 Specifications (PDF)
• Kramer TBUS-10xl(B)-KIT5 Cutout template (PDF)
