Kramer AV TBUS-10xl-KIT8
Cable Well Retractable Cable Table Box w/ Slide Away Lid

Description

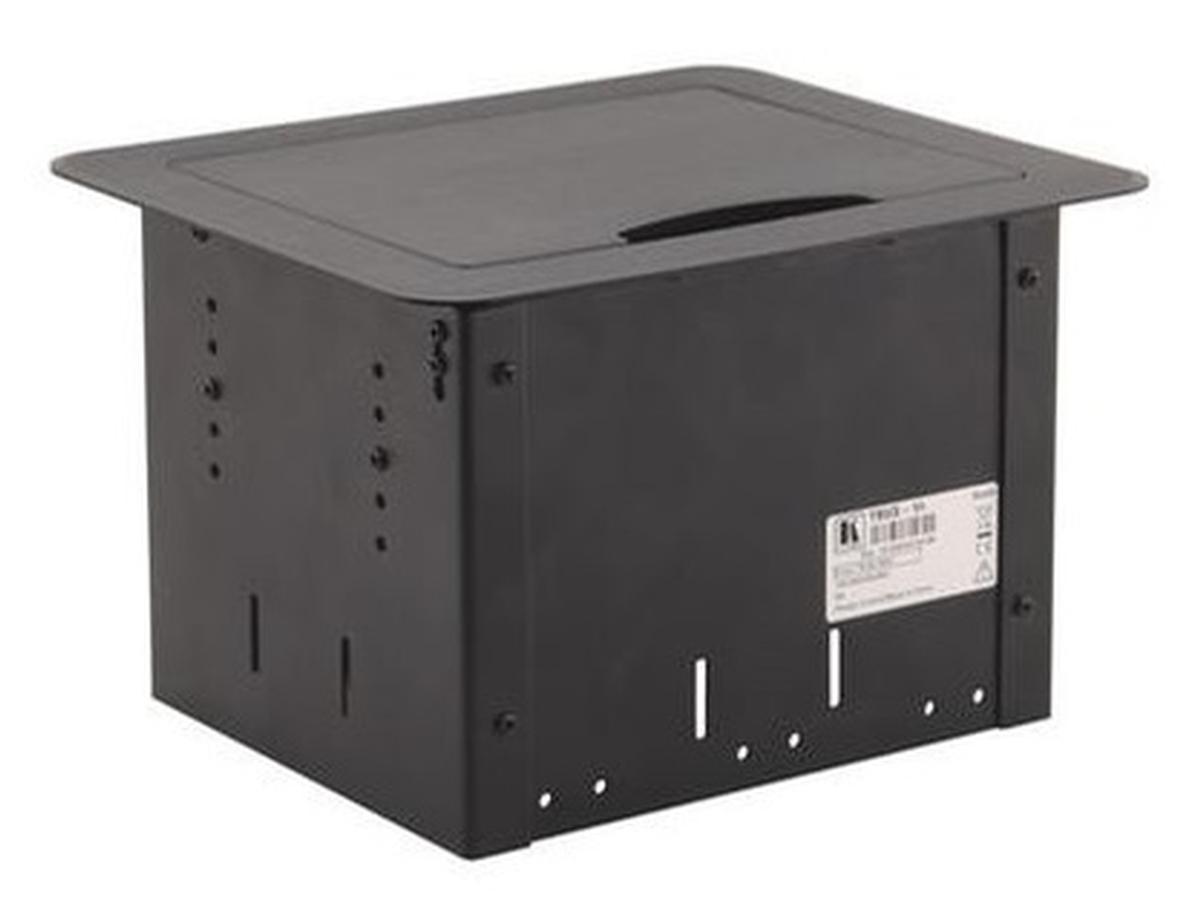

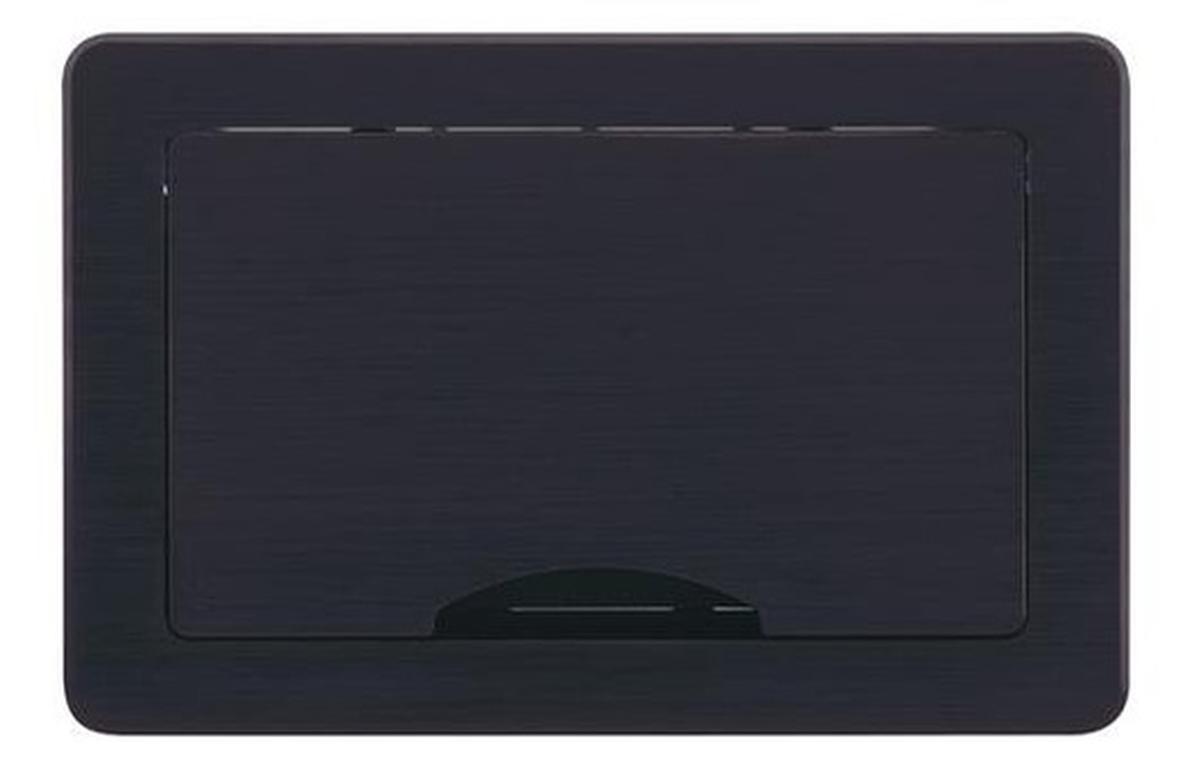

The Kramer TBUS-10xl-KIT8 is a table well box with power and retractable cables.  Retractable cables ensure that you always have the correct cable for your presentation while keeping your table nice and tidy.  The tilting lid also retracts down into the unit when needed, the lid also has an opening that allows cables to be plugged in with the lid closed.  This allows people to reach to the box from both sides of the table without a lid being in the way.

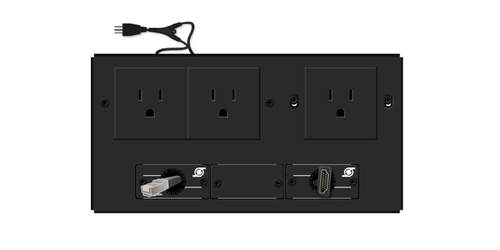

The kit includes (3) power with one 6' cable, (1) 5.9' retractable HDMI, (1) 5.9' retractable RJ45 (Data), and (1) Blank Plate. The retractable cables all feature a 15" female ended pig tail on the bottom for easy connection.

Choose between black anodized aluminum and (silver) clear anodized aluminum.

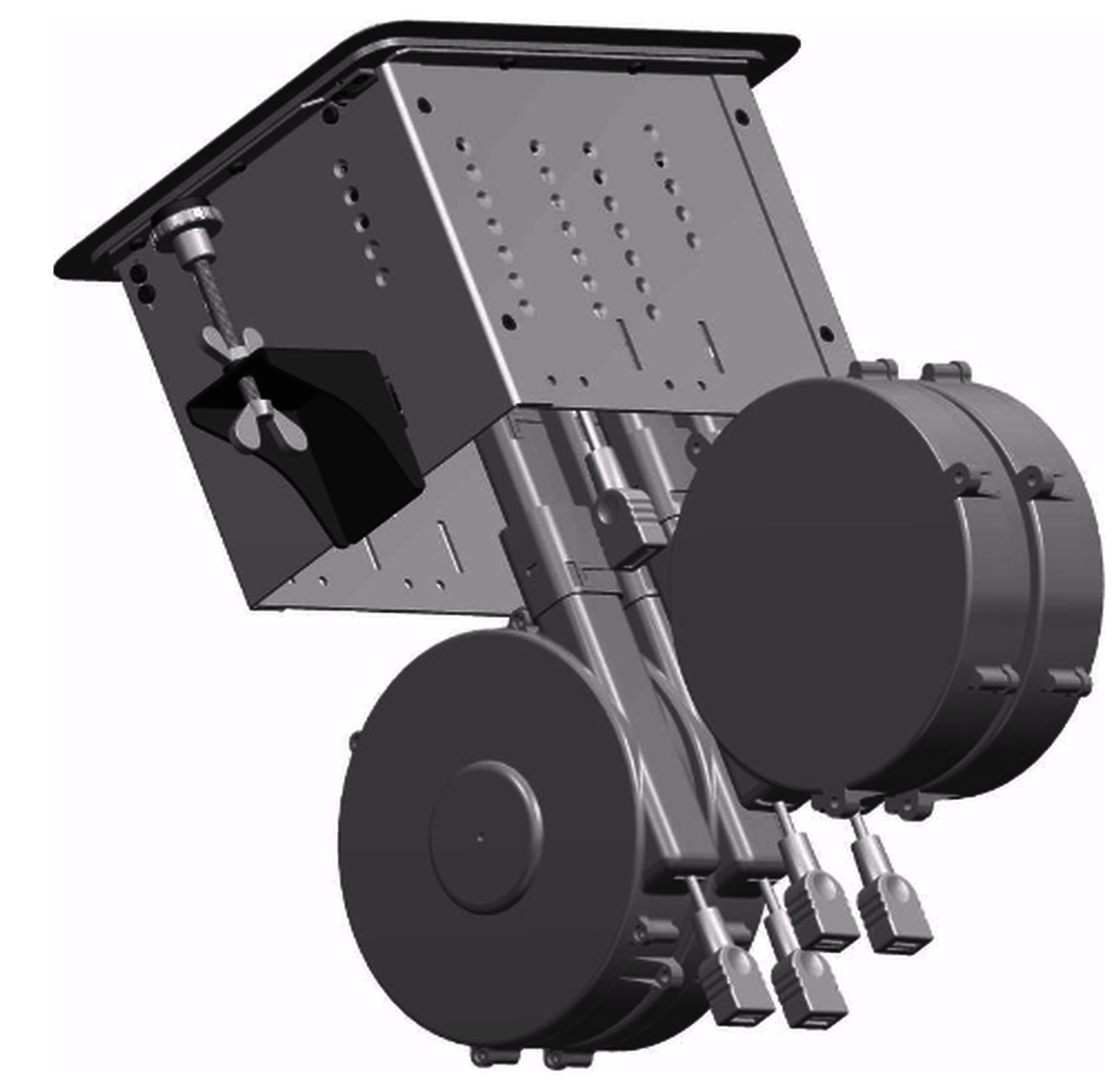

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Bezel dimensions: 10.3" x 6.8"
• Cutout dimensions: 9.65" x 6.08"
• The box is 5.1" deep, you can install the connections at different levels in the box in case you need space for cable storage
• Will work in tables from 3/4" to 3" thick
• Mounting hardware included
• Warranty: 7 years

Downloads

• Kramer AV TBUS-10xl-KIT8 Specifications (PDF)
• Kramer TBUS-10xl(B)-KIT8 Cutout Template (PDF)
