Kramer AV TBUS-1Axl-KIT10
AV Table Box with 4 Power, 1 HDMI, 2 RJ45, 2 Charging USB

Description

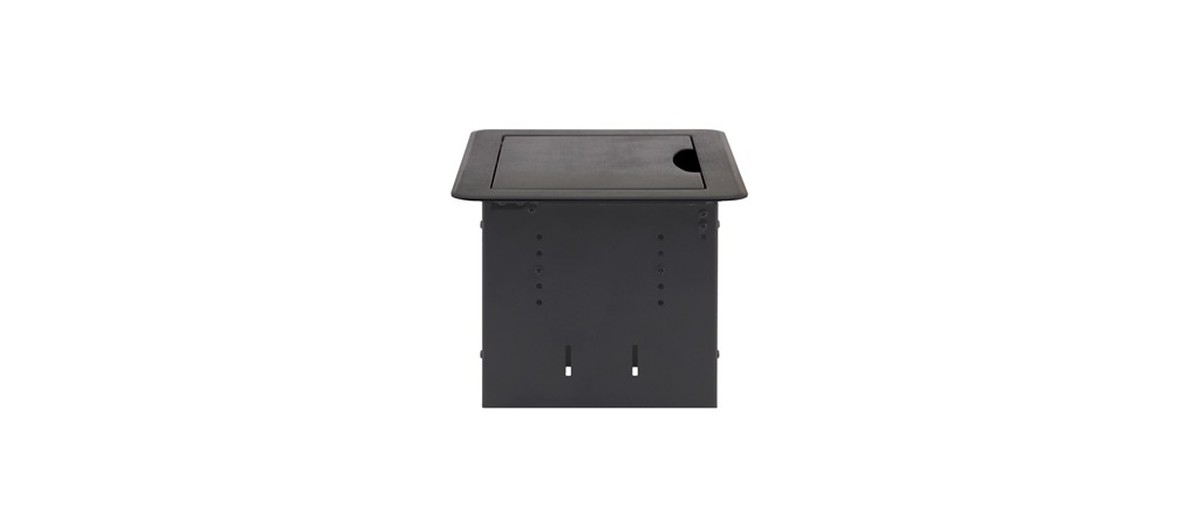

The Kramer TBUS-1Axl-KIT10 is a enclosure with a tilt up lid that is specifically designed for those looking for the most popular connections needed in a conference room table.  Not only does it have 4 power sockets but it has 1 HDMI, 2 CAT5, and 2 charging USB ports.  The opening in the lid allows for cables to be plugged in with the lid closed!

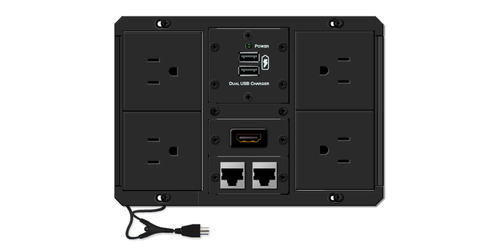

Includes:  4 power with one 6' cable, 1 HDMI, 2 CAT6, and 2 charging USB with power cable.  The USB ports are a stellar 2 amps each to charge any device. The HDMI and RJ45 connections are female to female so it is easy to install the cables on the backside.

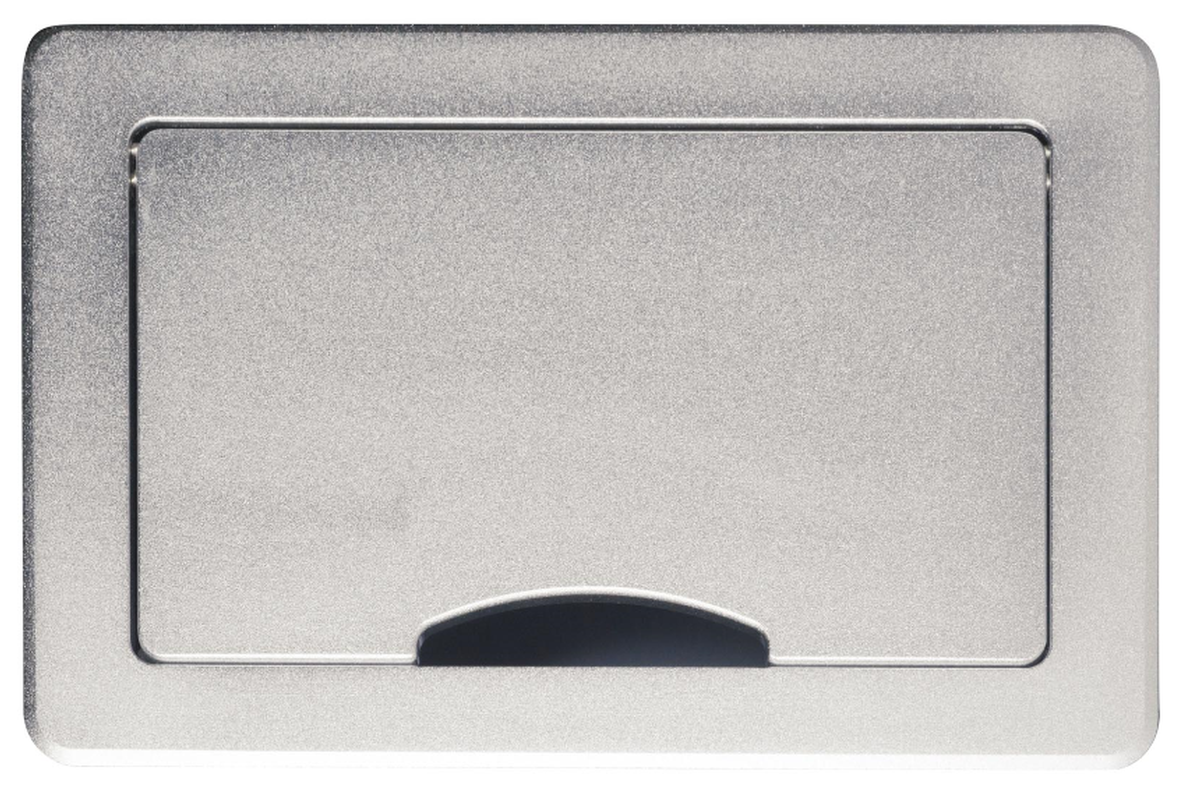

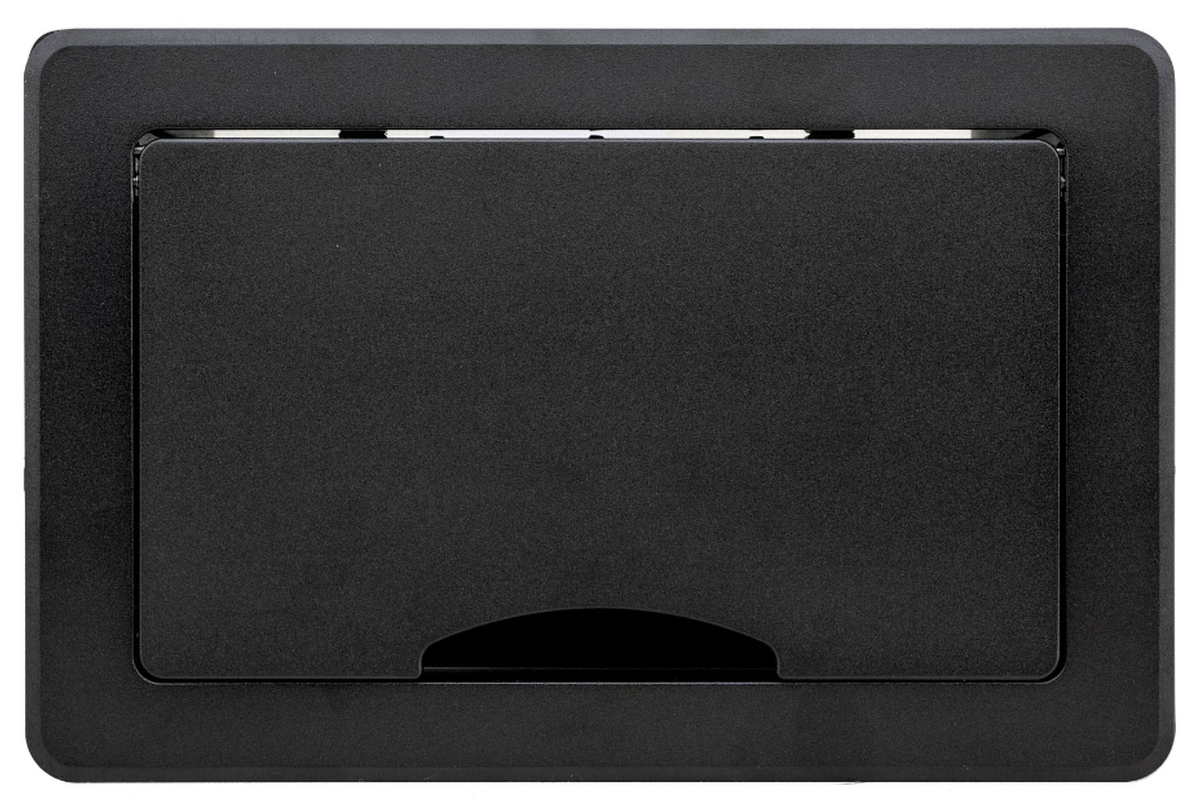

Choose between black anodized aluminum and (silver) clear anodized aluminum.

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

Applications include: boardrooms, conference rooms, classrooms, training facilities, lab tables and lecterns.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? Want a lid that provides wireless charging? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Box dimensions: 8.07"W x 6.69"D x 5.20"H
• Table cutout: 7.51in x 5.98in
• Mounting hardware included
• Works in tables up to 3" thick
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-1Axl-KIT10 Specifications (PDF)
• Kramer AV TBUS-1Axl-KIT10 Manual (PDF)
• Kramer TBUS-1Axl(B)-KIT10 Cutout Template (PDF)
