Kramer AV TBUS-1Axl-KIT12
Table Well Configured AV Box with Tilt Up Lid

Description

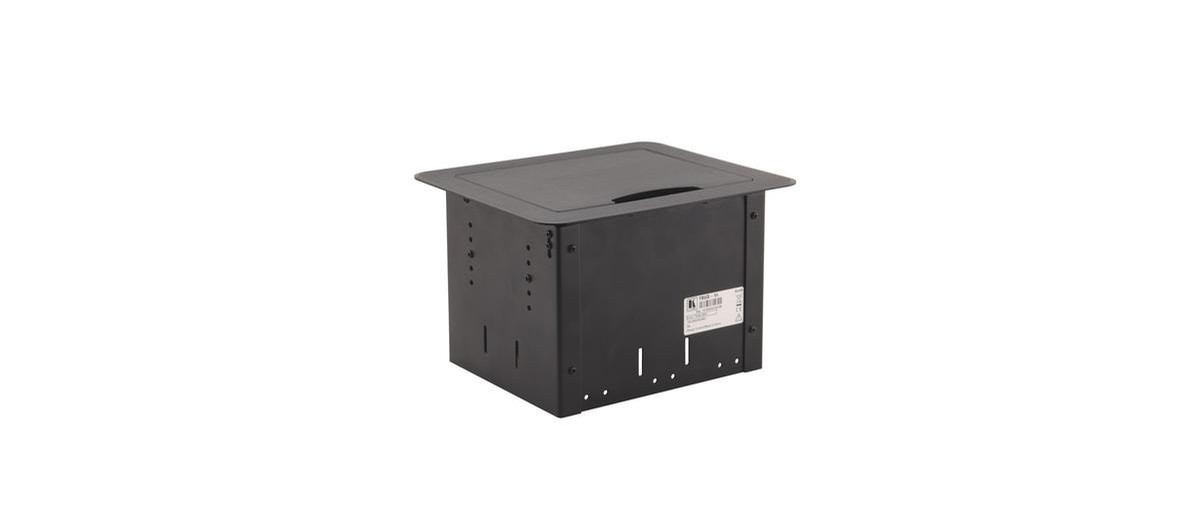

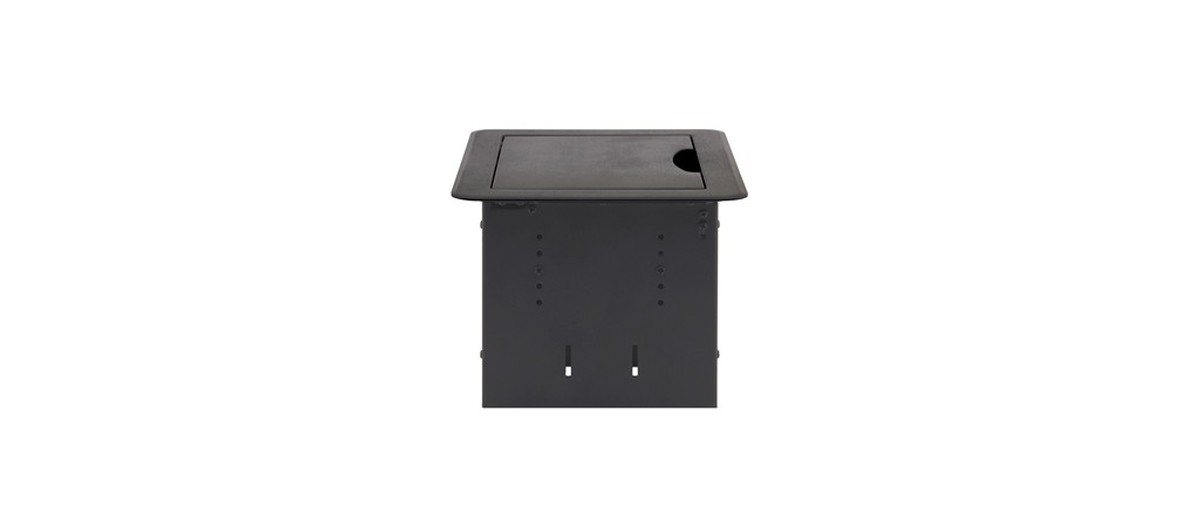

The Kramer TBUS-1Axl-KIT12 is a enclosure with a tilt up lid that includes all the most popular and most used power and data module connections for your conference room table. The opening in the lid allows for cables to be plugged in with the lid closed!

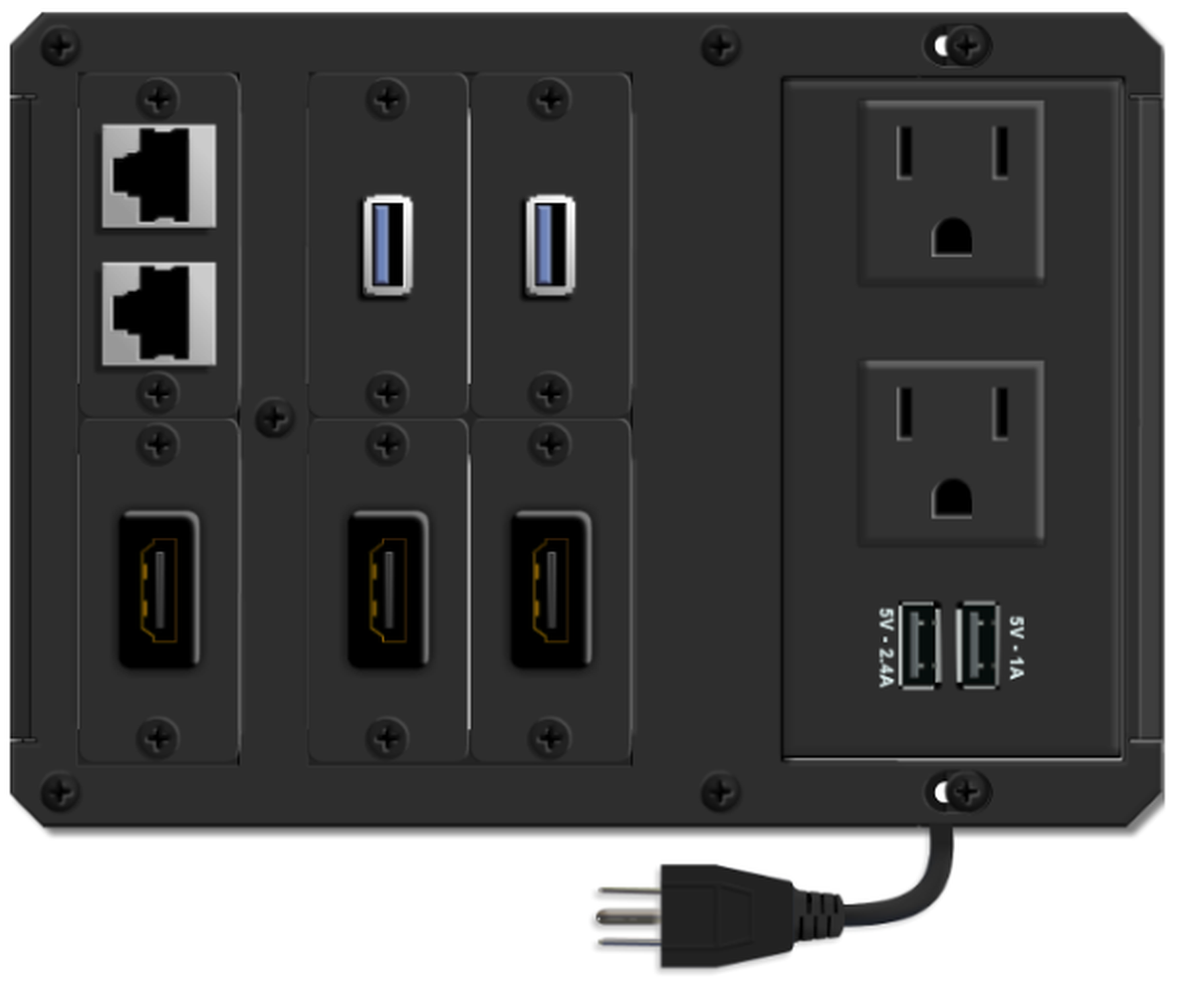

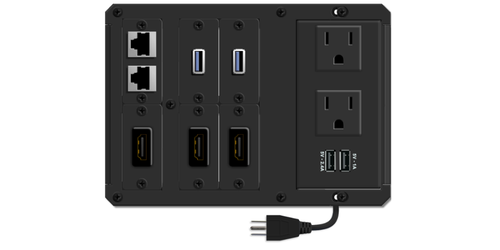

Includes:  2 power and 2 USB charging with one 6' cable, 3 HDMI, 2 non-charging passive USB 3.0, and 2 RJ45 (Data). All connections are F-F so it is easy to plug into.

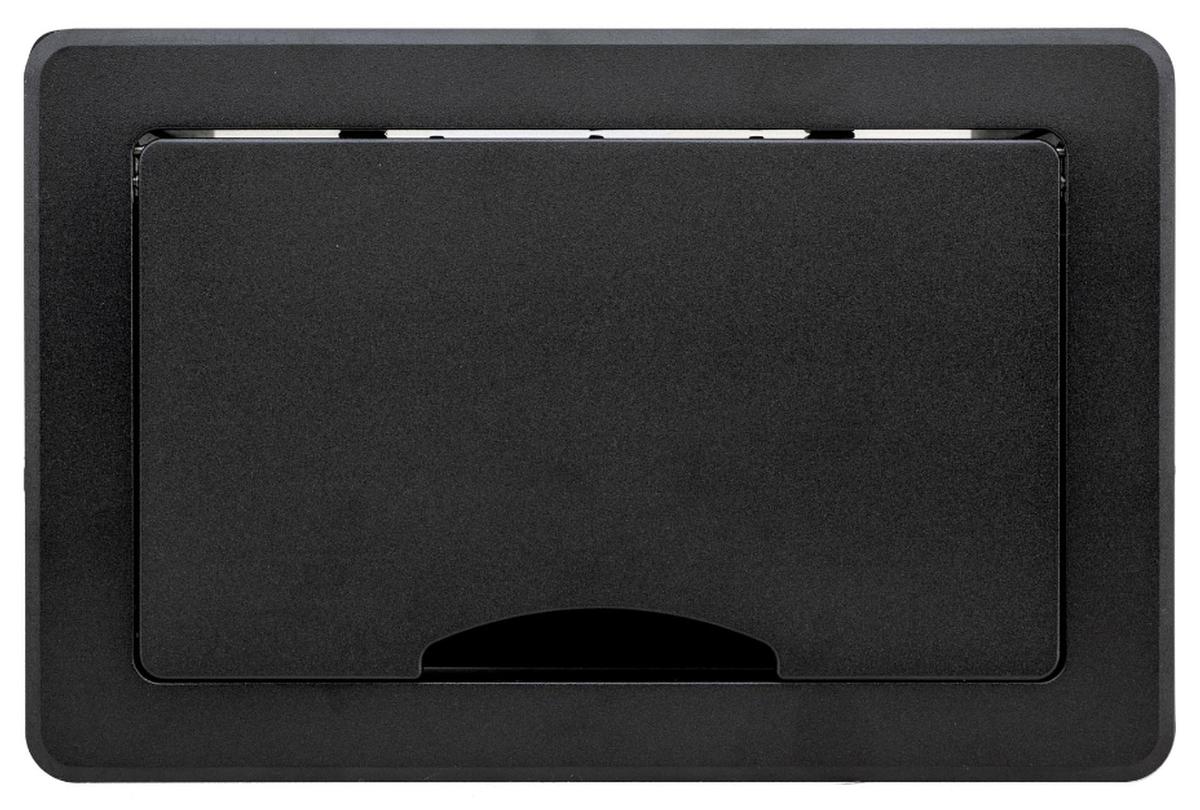

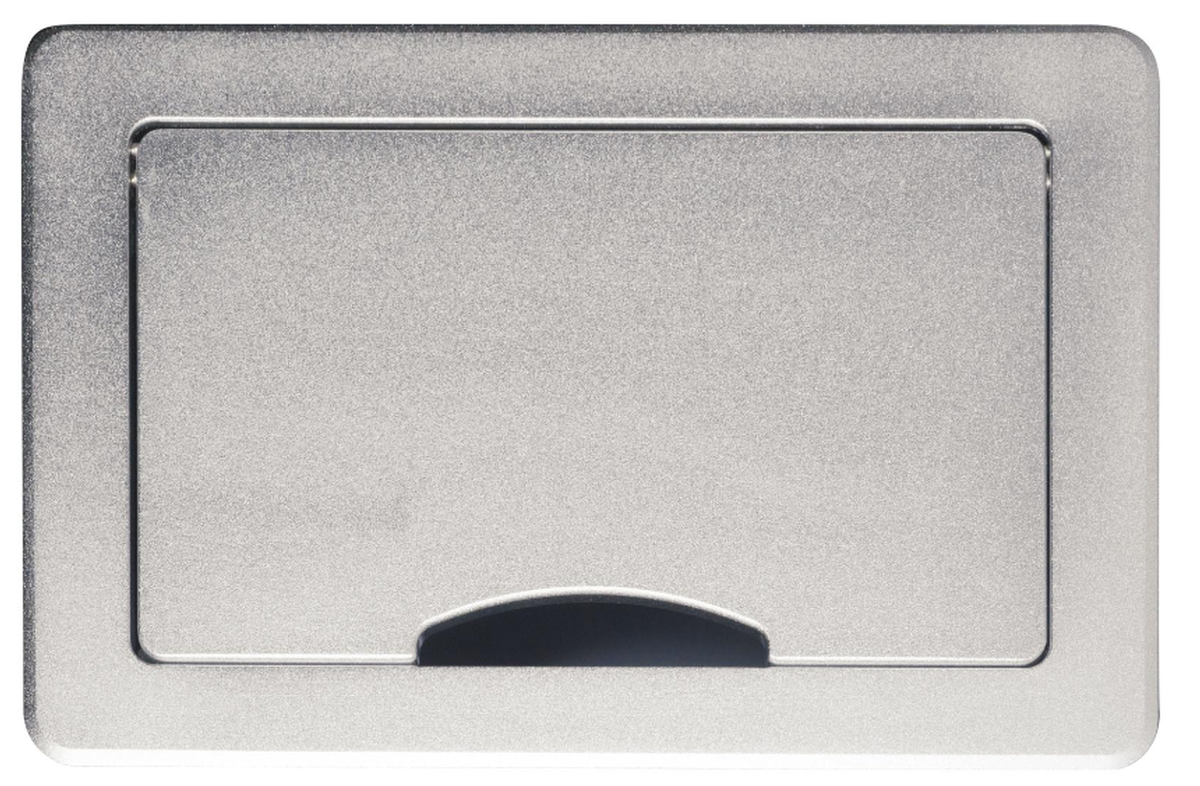

Choose between black anodized aluminum and (silver) clear anodized aluminum.

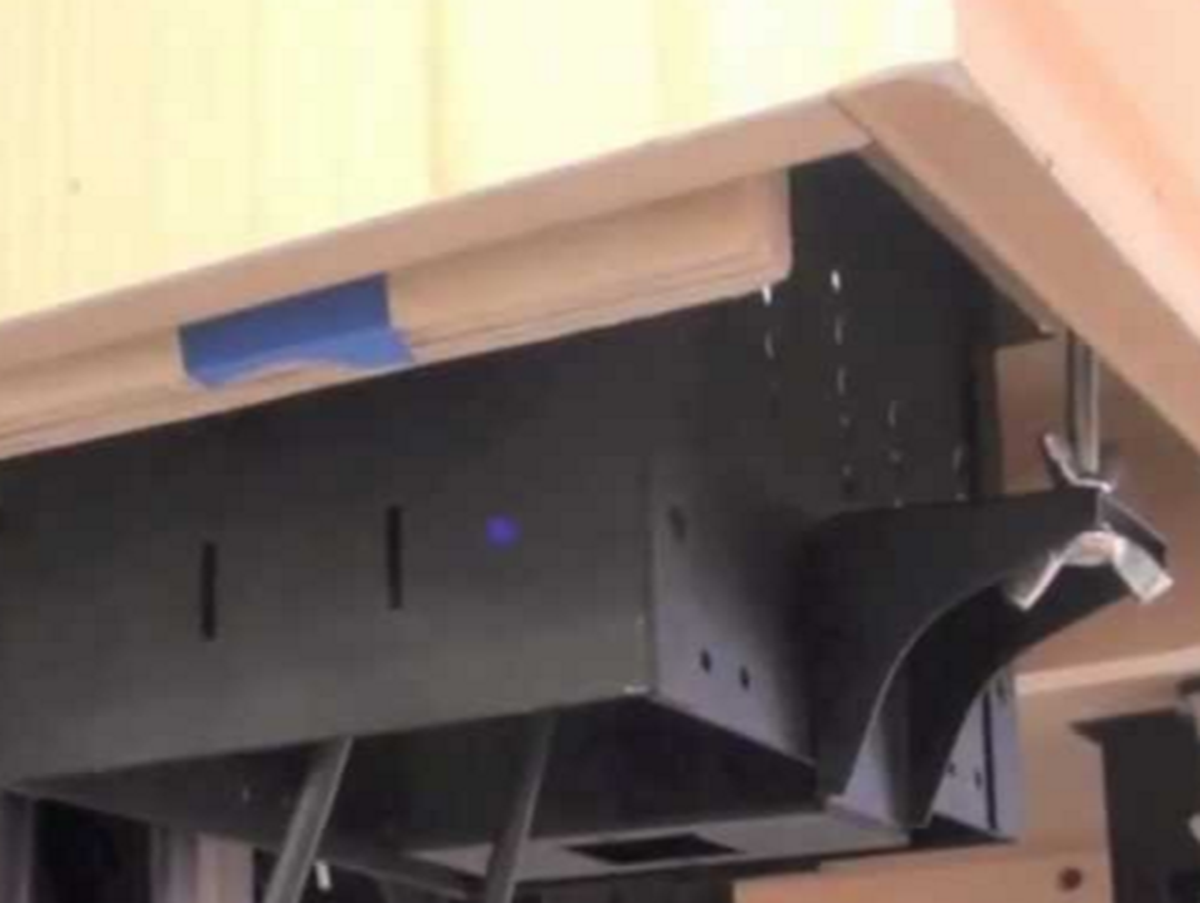

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

Applications include: boardrooms, conference rooms, classrooms, training facilities, lab tables and lecterns.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? Want a lid that provides wireless charging? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Box dimensions: 8.07"W x 6.69"D x 5.20"H
• Table cutout: 7.51in x 5.98in

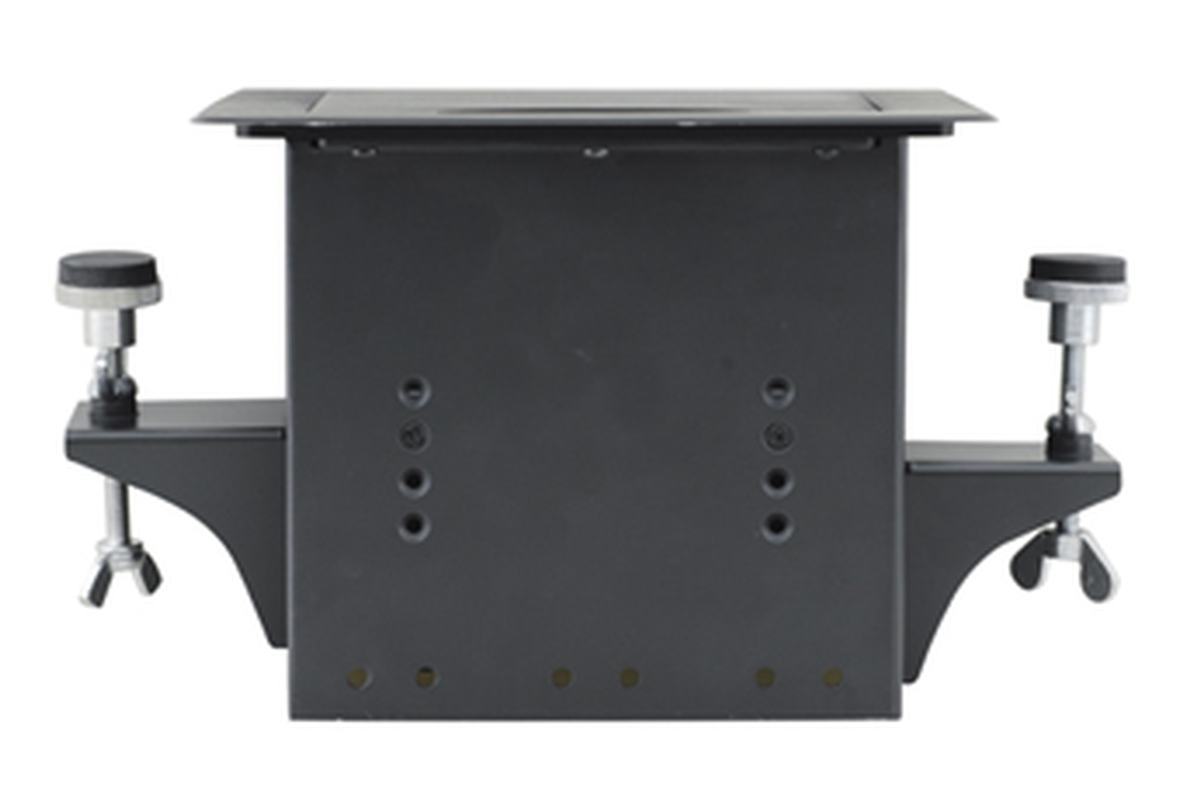

• Mounting hardware included
• Works in tables up to 3" thick
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-1Axl-KIT12 Specifications (PDF)
• Kramer TBUS-1Axl-KIT12 Manual (PDF)
• Kramer TBUS-1Axl-KIT12 Cutout Template (PDF)
