Kramer AV TBUS-3xl-KIT1
VGA and HDMI Table Box with Tilt Up Lid

Description

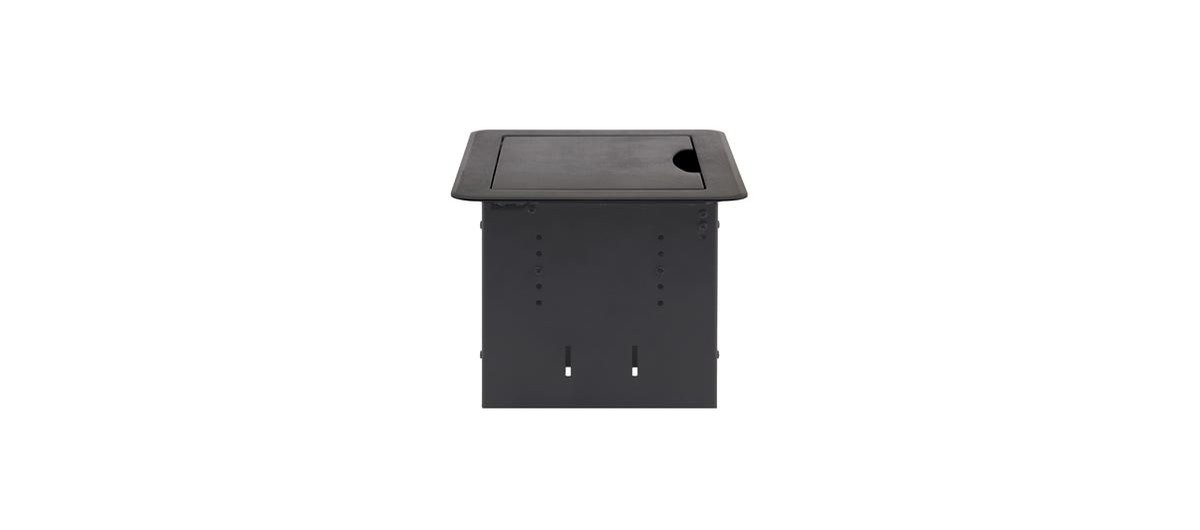

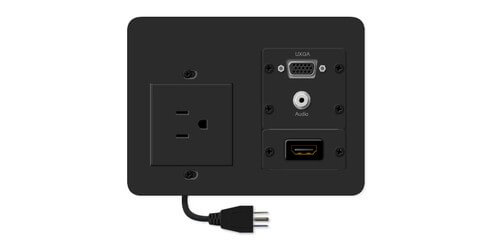

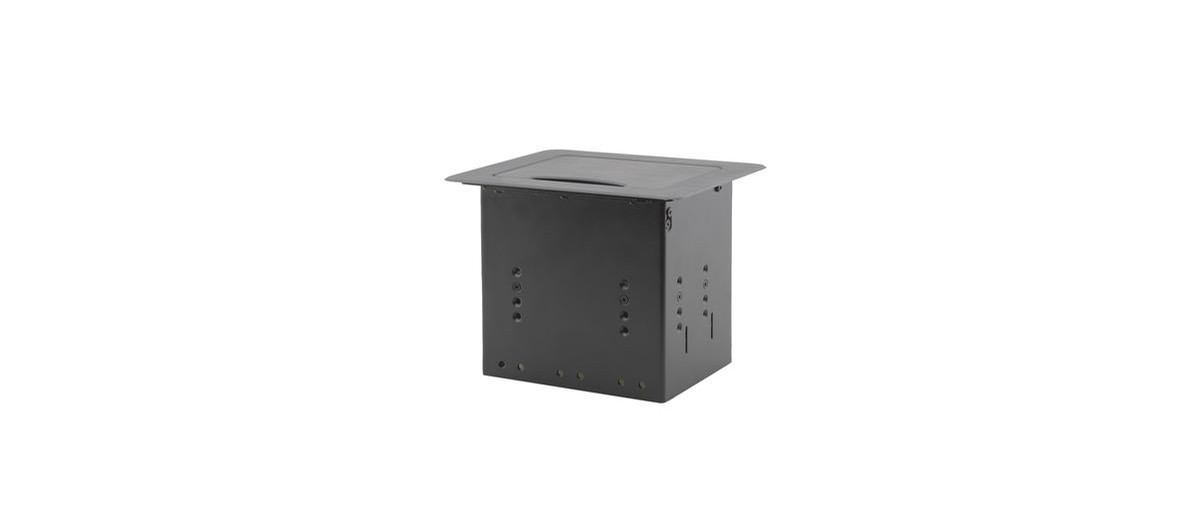

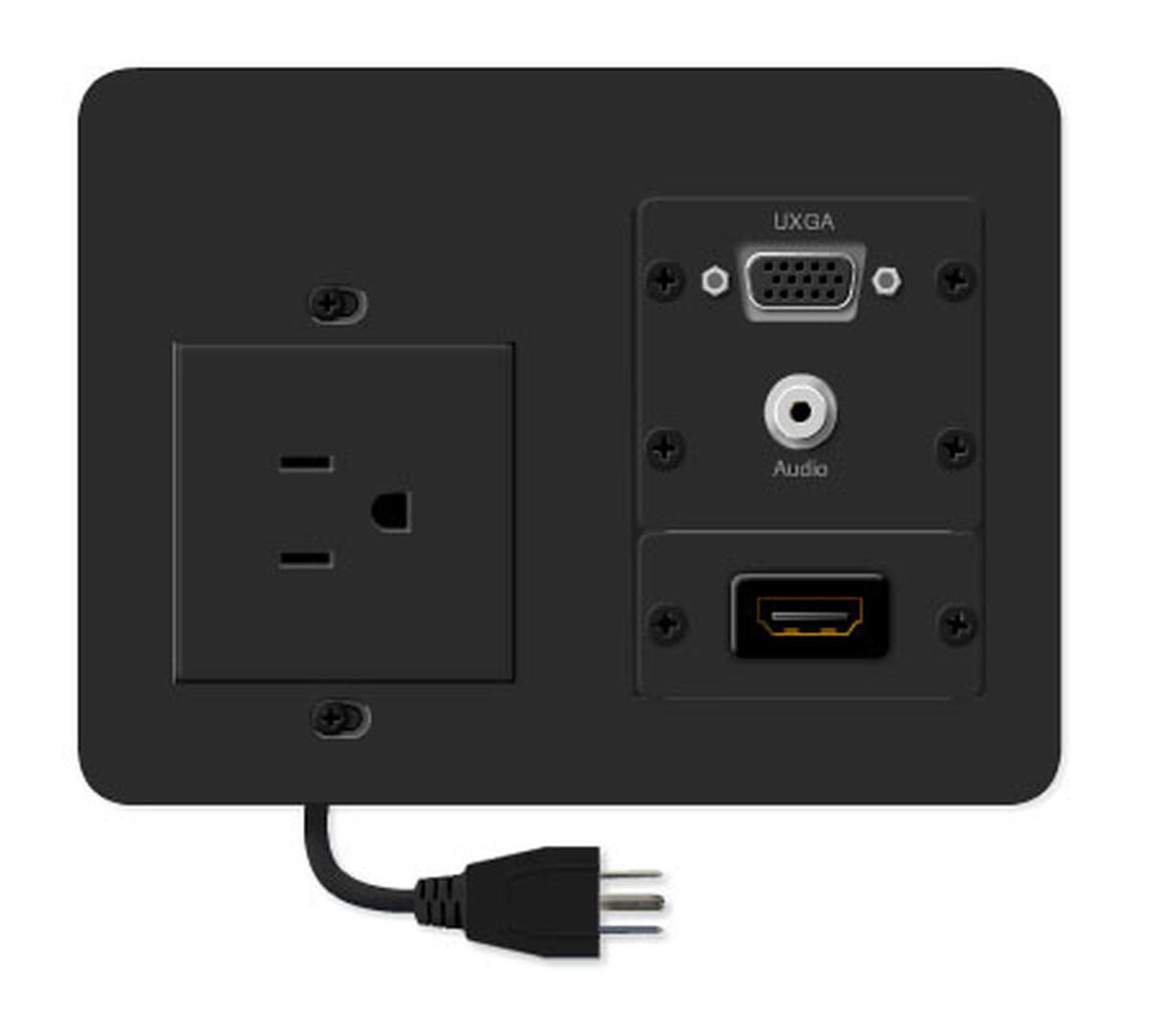

The Kramer TBUS-3xl-KIT1 is a modular enclosure with a tilt up lid for your conference room table. It includes 1 power, 1 HDMI, 1 VGA and audio, and a 6' power cord.  All connections are F-F for easy installation on the backside of the connectors.

Choose between black anodized aluminum and (silver) clear anodized aluminum.

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

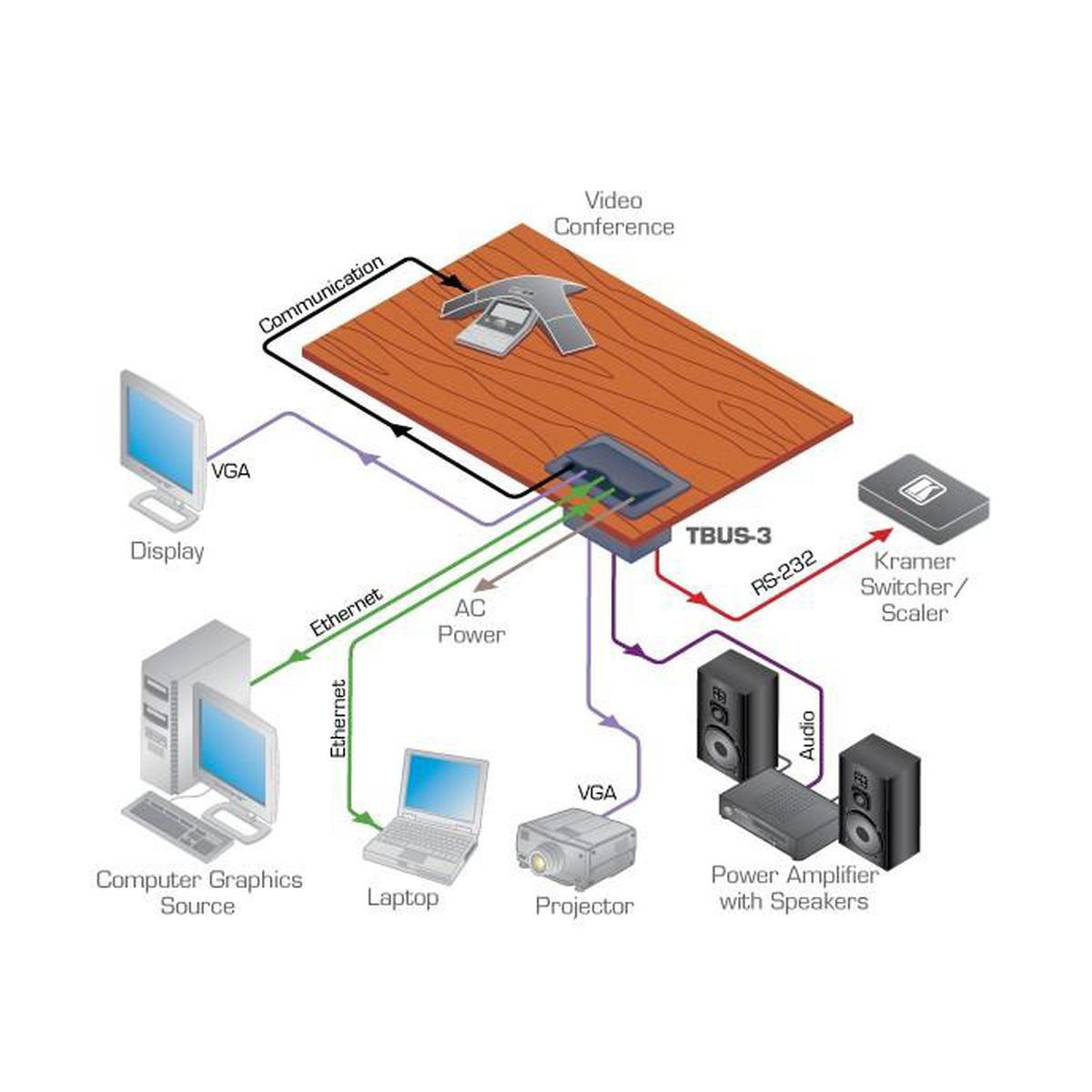

Applications include: Boardrooms, conference rooms, lecterns, classrooms, training facilities, and lab tables.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Box dimensions: 6.9"W x 5.5"D x 5.1"H
• Table cutout: 6.23" x 4.85"
• Works in tables up to 3" thick
• Mounting hardware included
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-3xl-KIT1 Specifications (PDF)
• Kramer TBUS-3xl(B)-KIT Manual (PDF)
• Kramer TBUS-3xl(B)-KIT Cutout Template (PDF)
