Kramer AV TBUS-3xl-KIT2
Power and 5 Grommet Conference Table Trough
-KIT2-2.jpg)
-KIT2-5.jpg)
-sandblasted-black26.png)
-sandblasted-silver35.png)

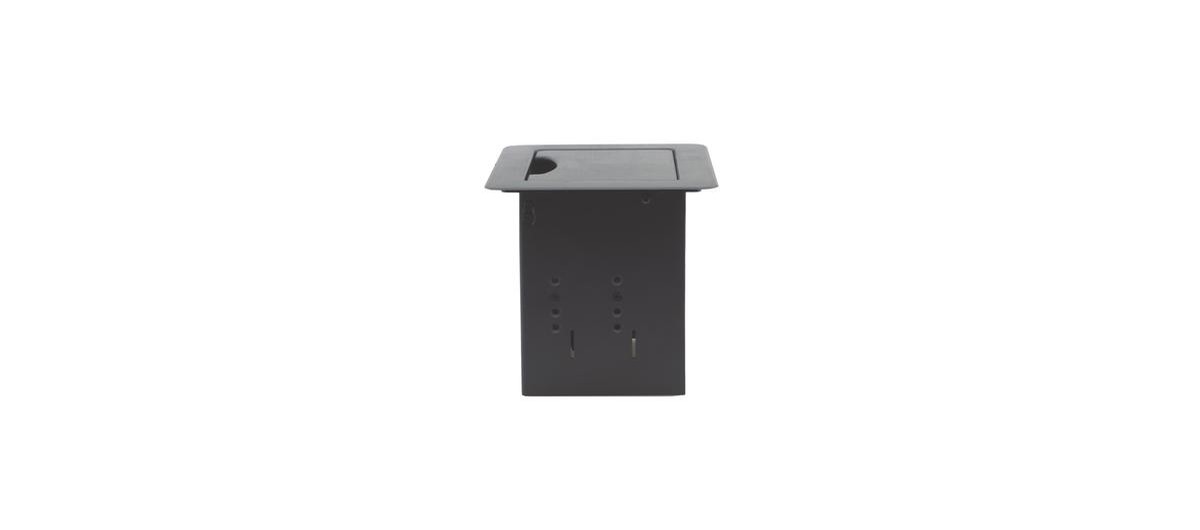

- Enclosure: Anodized aluminum top with tilting lid
- Black or silver

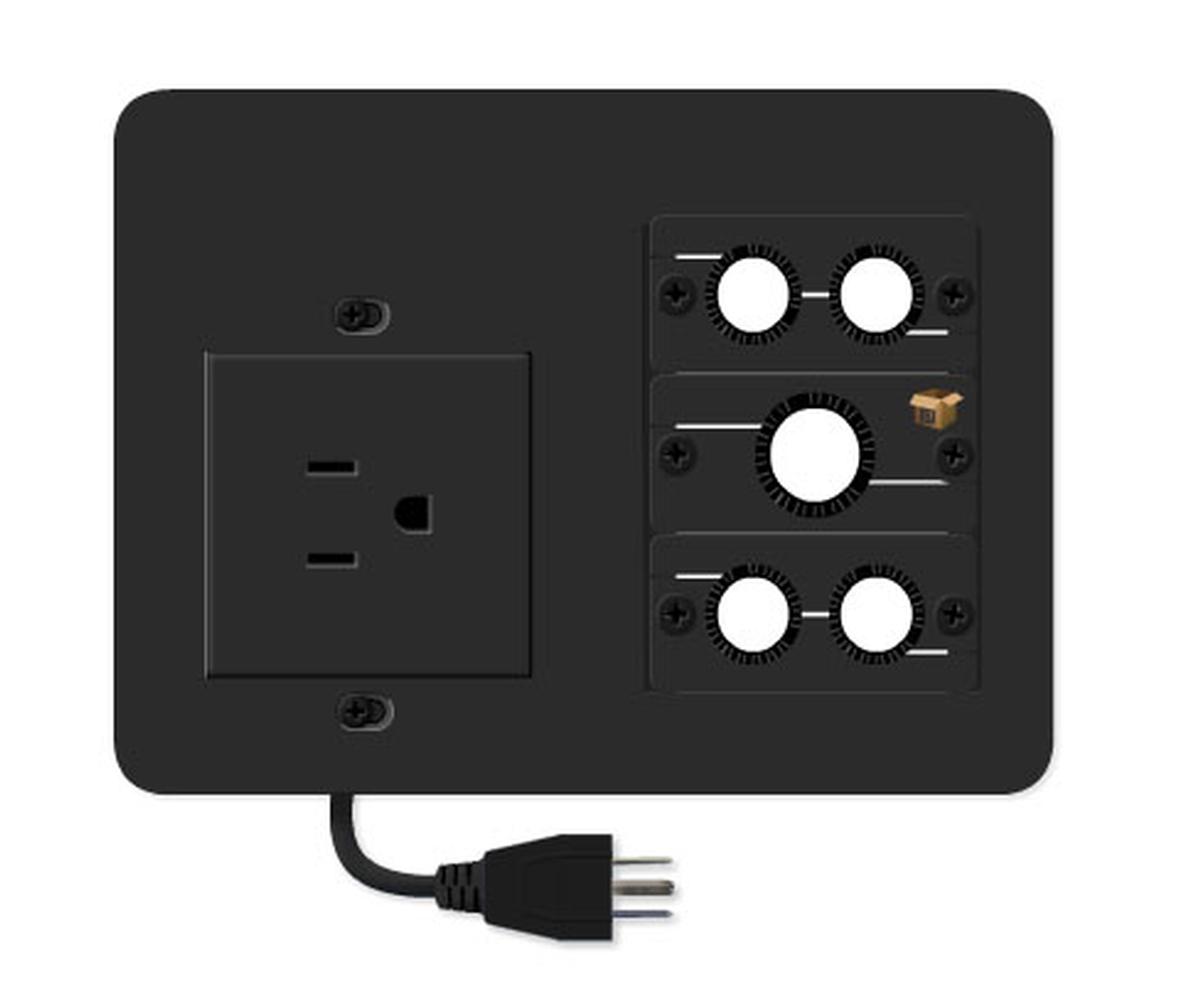

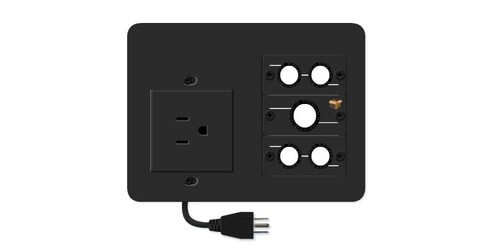

- Includes: 1 power with 5 grommet cable retention holes
- Box dimensions: 6.9"W x 5.5"D x 5.1"H
Description
The Kramer TBUS-3xl-KIT2 is a enclosure with a tilt up lid for your conference room table. It includes 1 power with 6' power cable and 5 retaining grommets. The opening in the lid allows for cable to stay plugged in with the lid shut, perfect for items that need to remain on the table and plugged in all the time.
The retaining grommets allows cable ends to be retained right at the box and pulled out when needed. To install all you have to do is take the 2 plates and slide around the cable then screw the plates into the box. The 4 smaller holes have a diameter of .35" and the larger hole has a diameter of .49".
The retaining grommets are also ideal for the Kramer K-ABLE retractable cables. They mount on the side of the box and run up through the box and are then held on the grommet holes, they provide 3' of retractable cable.
Choose between black anodized aluminum and (silver) clear anodized aluminum.
Installation is simple; cut your hole, drop in the box, and secure the unit to the underside of the table with the included table clamps.
In order to ensure a short lead time, minor assembly is required on most TBUS items.
Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.
Specifications
- Table cutout: 6.23" x 4.85"
- Works in tables up to 3" thick
- Mounting hardware included
- Warranty: 7 years
- UL and CE Qualified
