Kramer AV TBUS-4xl-KIT1
Table Box w/ Lid, 2 AC, 1 HDMI, & 4 Data

Description

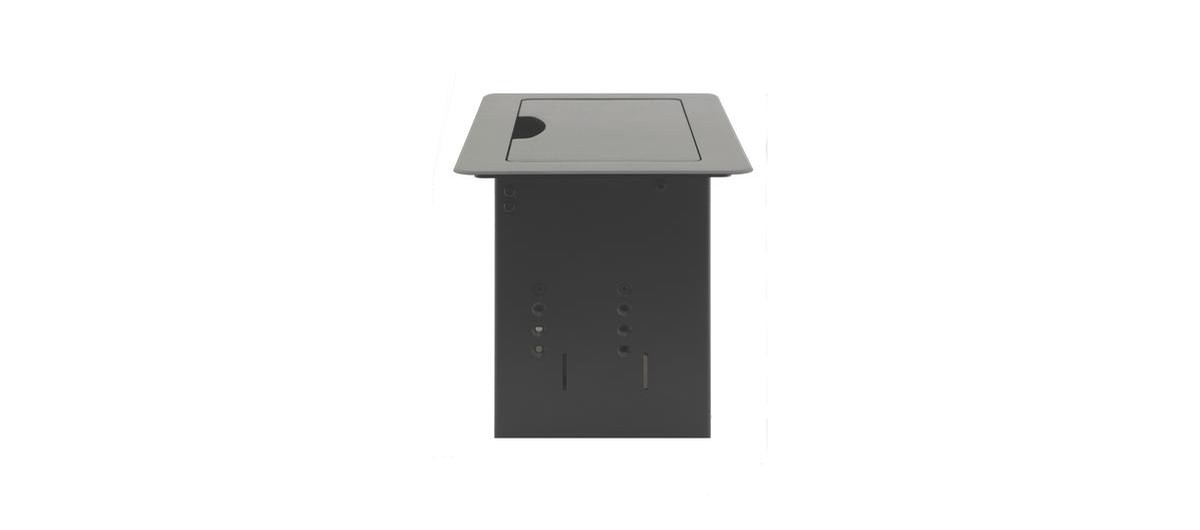

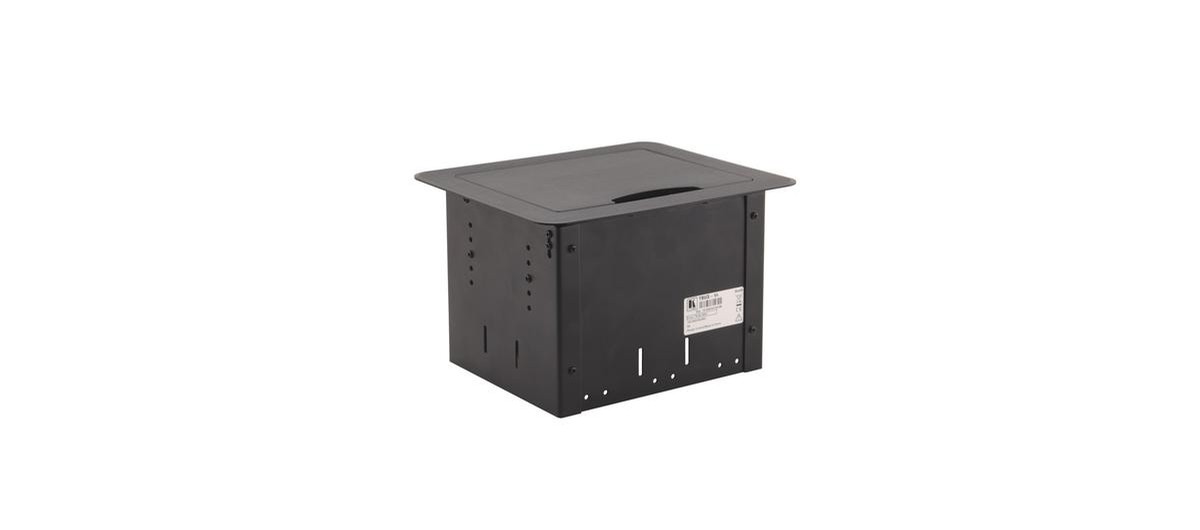

The Kramer TBUS-4xl-KIT1 is a compact table enclosure with a tilt up lid. The lid keeps your connections hidden when not in use and when needed simply tilt it up, the opening in the lid allows for cables to be plugged in when in use while closing the lid.  This is ideal for cables that are always going to be attached to an object that always sits on your table such as a phone.

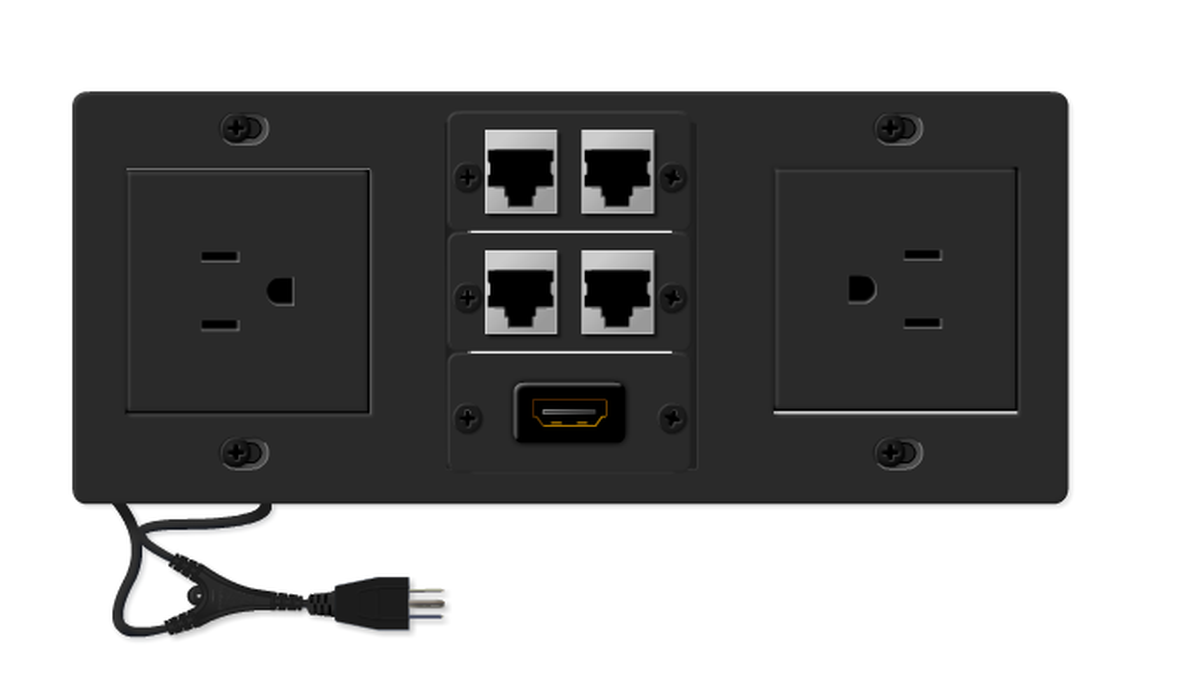

The kit includes:  4 Ethernet, 1 HDMI, and 2 power with a single 6' cable.  All connections are F-F for easy installation on the backside of the connectors.

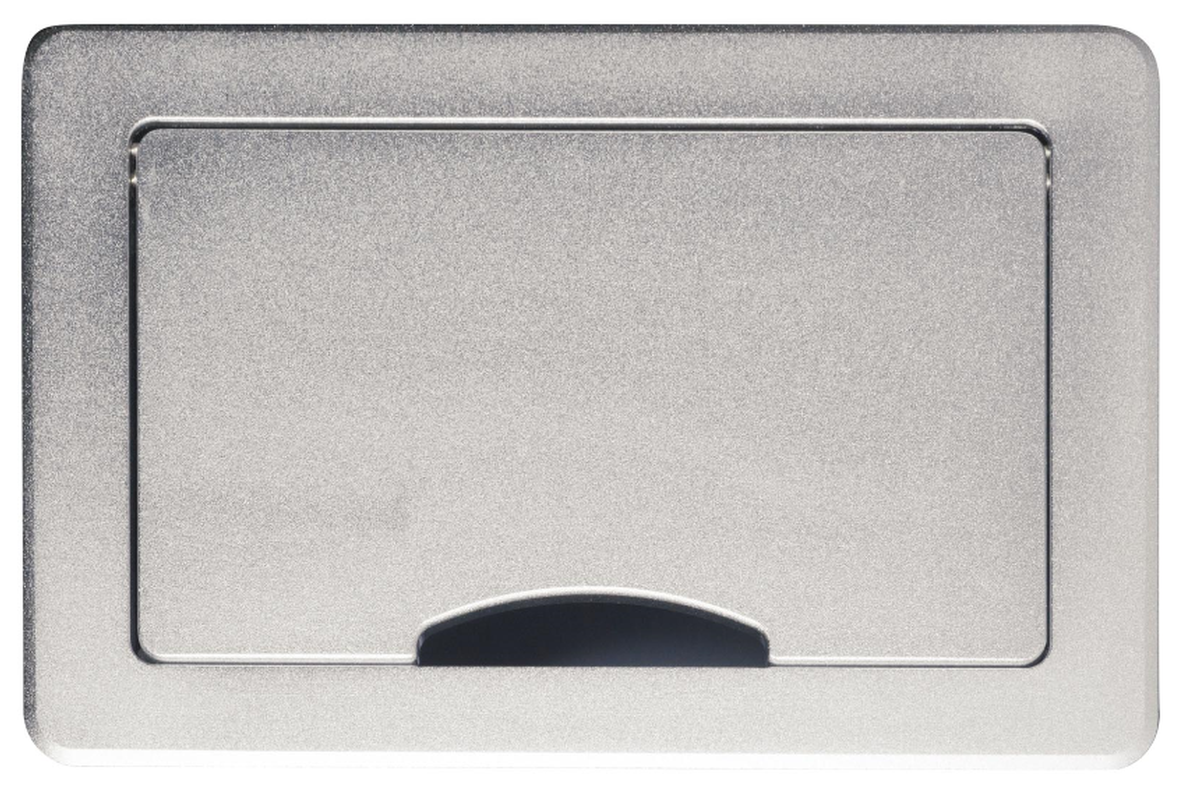

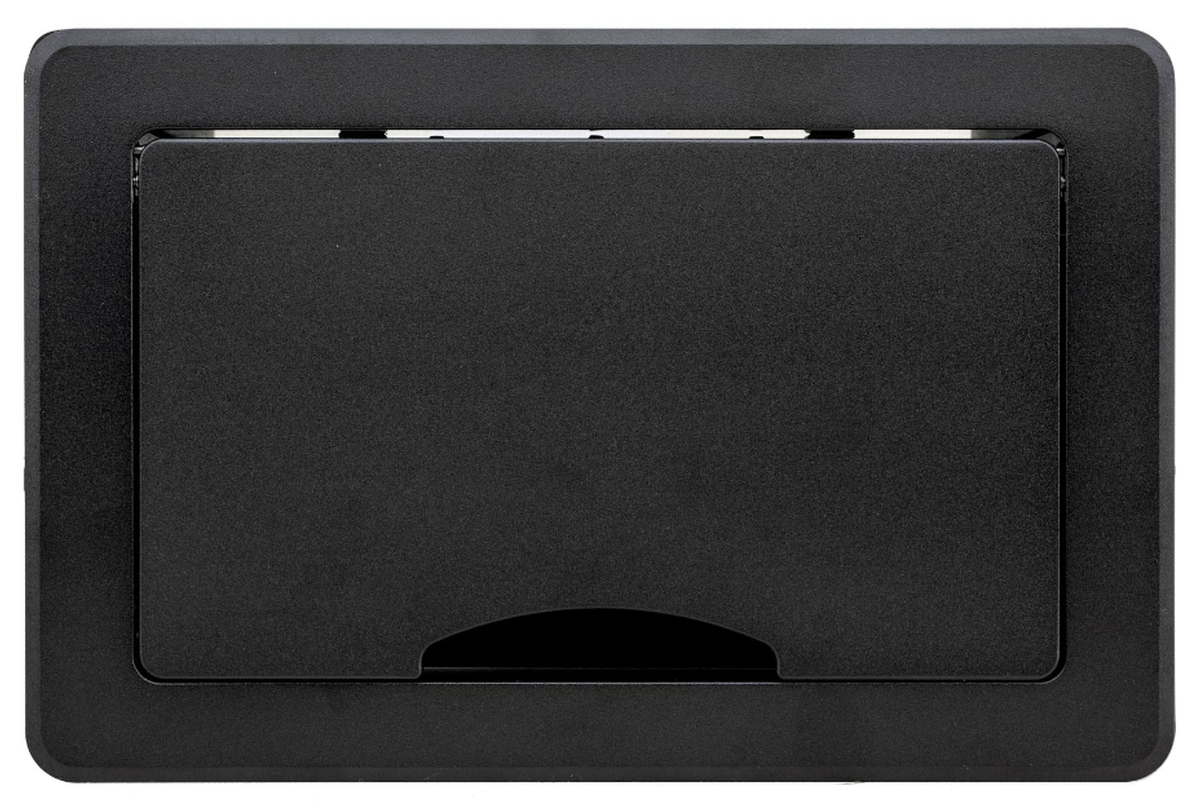

Choose between black anodized aluminum and (silver) clear anodized aluminum.

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Box dimensions: 9.6"W x 5.5"D x 5.1"H
• Table cutout: 8.87" x 4.85"
• Works in tables up to 3" thick
• Mounting hardware included
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-4xl-KIT1 Specifications (PDF)
• Kramer TBUS-4xl(B)-KIT1 Manual (PDF)
• Kramer TBUS-4xl(B)-KIT1 Cutout Template (PDF)
• Kramer AV TBUS-4xl-KIT1 AutoCAD Drawing
