Kramer AV TBUS-4xl-KIT2
Table Box 2 AC Power & 5 Pass Throughs, Tilting Lid
-KIT2-2.jpg)
-KIT2-5.jpg)
-sandblasted-black30.png)
-sandblasted-silver38.png)
- Enclosure: Anodized aluminum top with tilting lid
- Black or silver
- Includes: 2 power and 5 cable end retaining grommet holes
- Box dimensions: 9.6"W x 5.5"D x 5.1"H
-Chad R.
Description

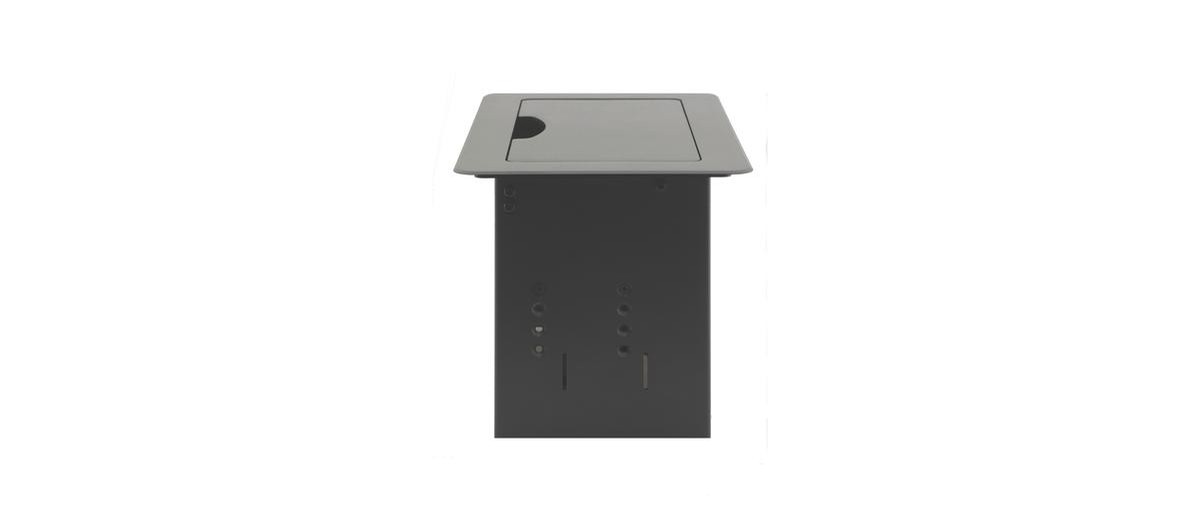

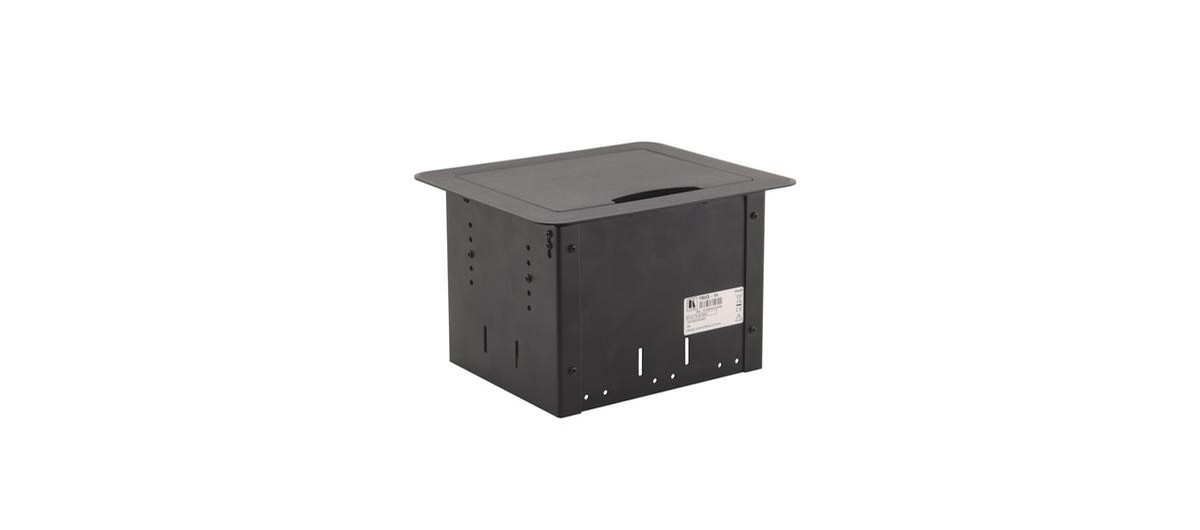

The Kramer TBUS-4xl-KIT2 combines 5 pass through cable end retaining grommets and 2 power in a small black enclosure with a tilt up lid. Pass through retention holes are ideal when you just want users to simply pull the cables out the cable well, this situation keeps you from always having to store spare cables around for users. The lid keeps your connections hidden when not in use and when needed simply tilt it up, the opening in the lid allows for cables to be plugged in when in use while closing the lid. This is ideal for cables that are always going to be attached to an object that always sits on your table such as a phone.

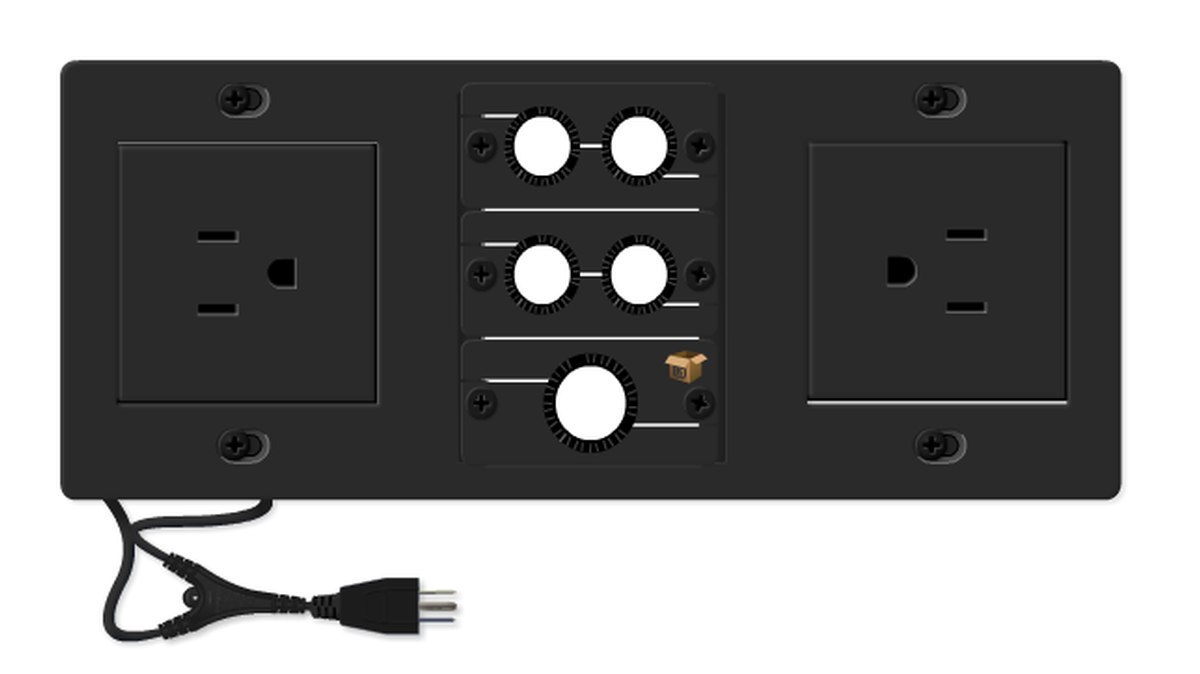

The kit includes 2 AC power outlets with only one 6' power cord and 5 retaining grommets. The 4 smaller holes have a diameter of .35" and the larger hole has a diameter of .49".
Choose between black anodized aluminum and (silver) clear anodized aluminum.
To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.
In order to ensure a short lead time, minor assembly is required on most TBUS items.
Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.
Specifications
- Table cutout: 8.85" x 4.84"
- Works in tables up to 3" thick
- Mounting hardware included
- Warranty: 7 years
- UL and CE Qualified
