Kramer AV TBUS-6xl-KIT1
Table Well AV Box w/ 2 AC, 1 HDMI, 1 VGA, 1 Audio, 1 Data

Description

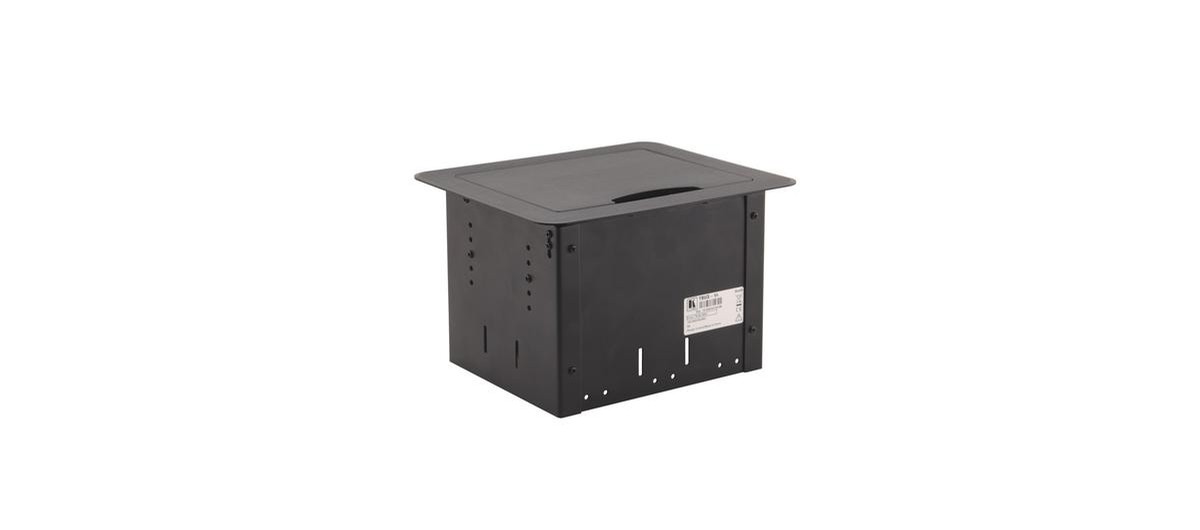

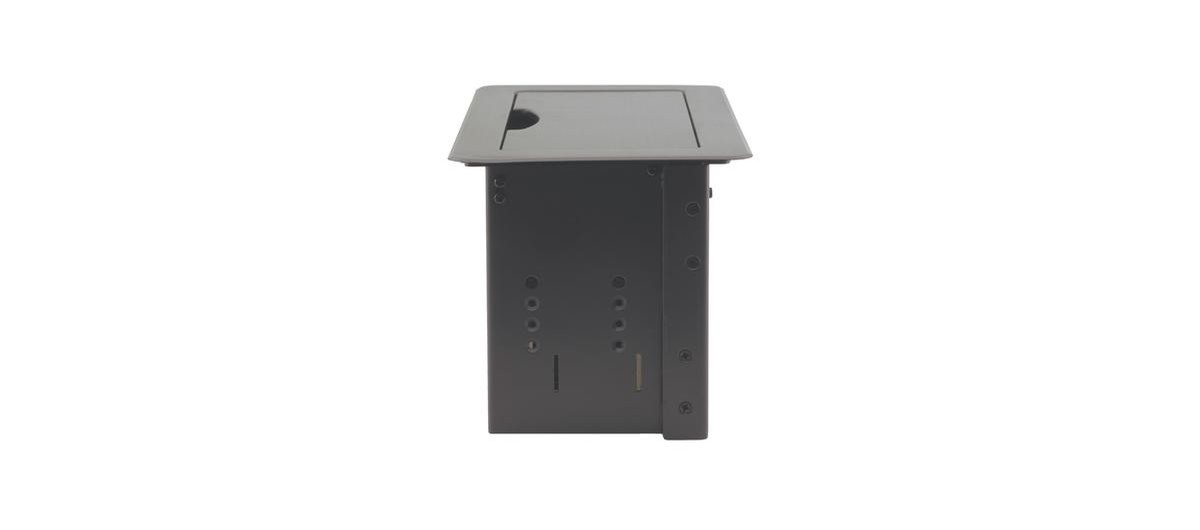

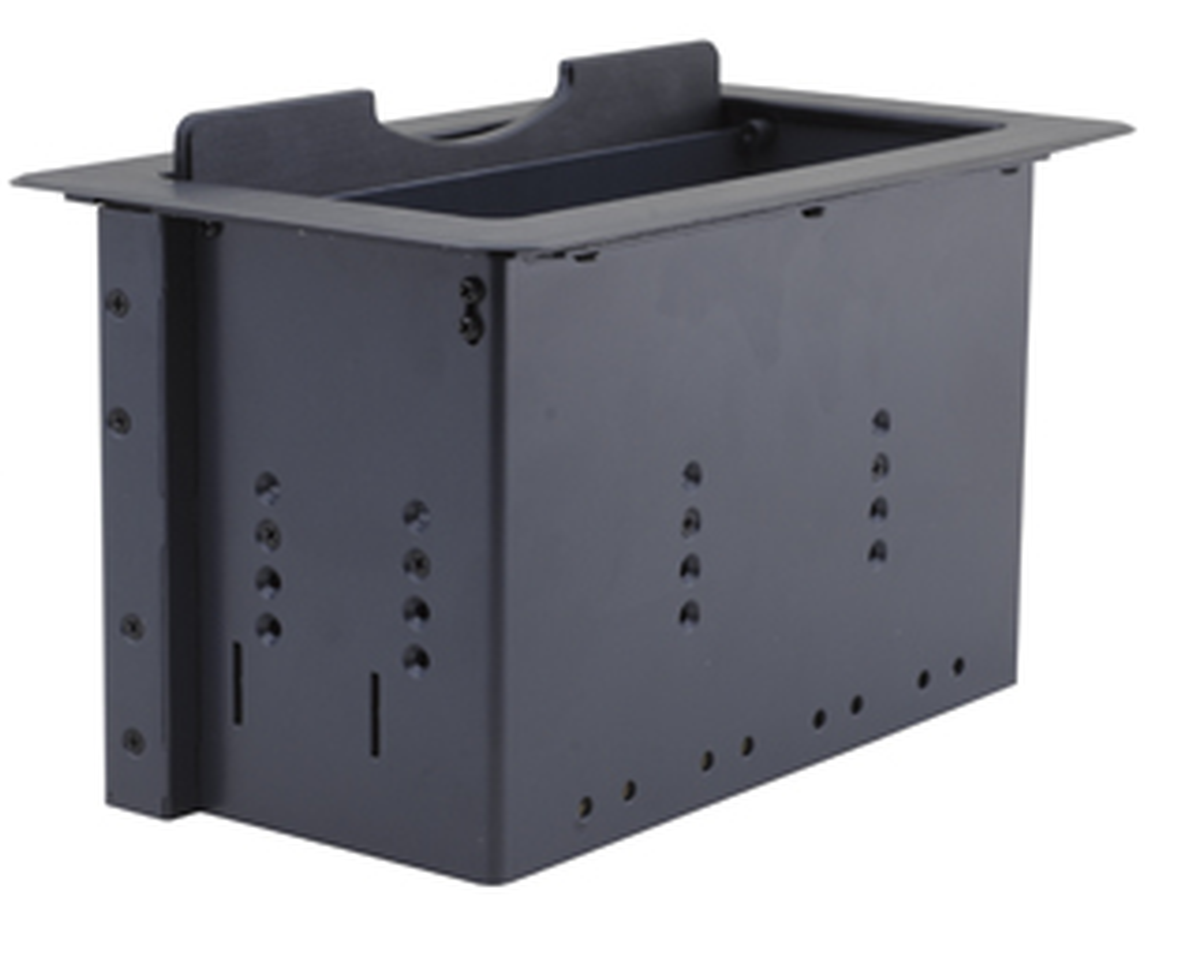

The Kramer TBUS-6xl-KIT1 is a table well box with manual tilt up lid that also retracts down into the unit when needed, this allows the lid to be out of the way for users on either side of the table and is perfect if you need to lay down drawings flat on the table without a lid getting in the way. The lid also has an opening that allows cables to be plugged in with the lid closed if desired, the material is a stylish high quality anodized aluminum.

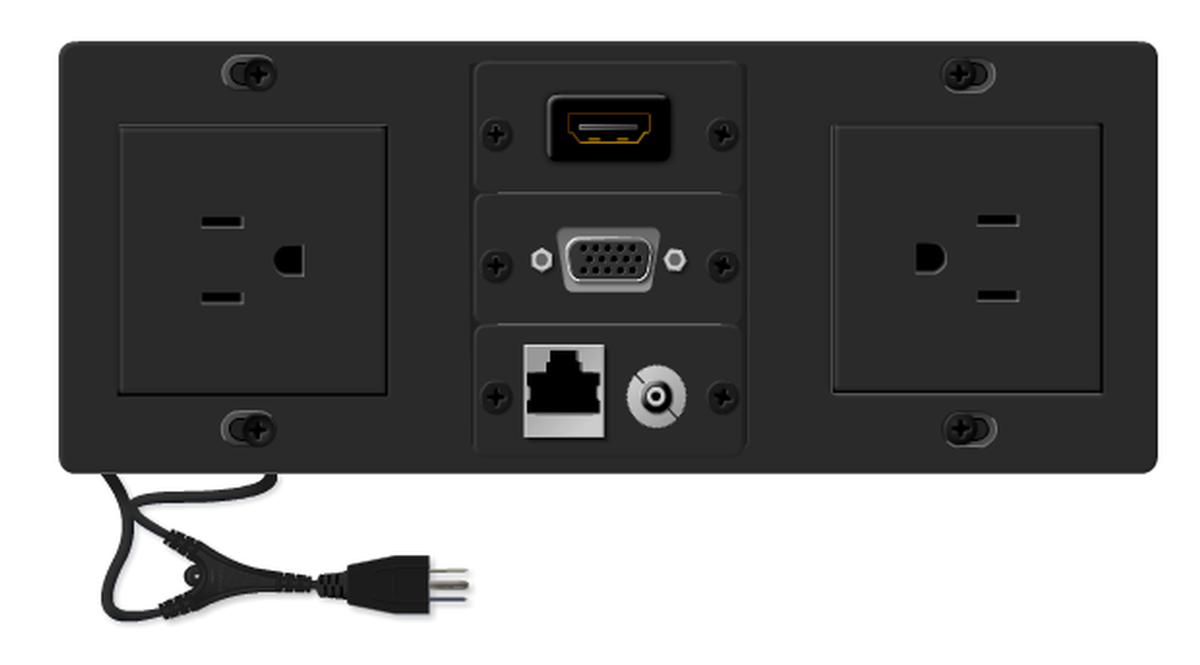

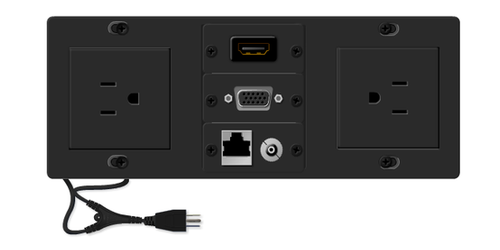

The kit includes 2 power with a single 6' cord, 1 F-F HDMI, 1 F-F VGA, 1 F-F audio, and 1 F-F data.

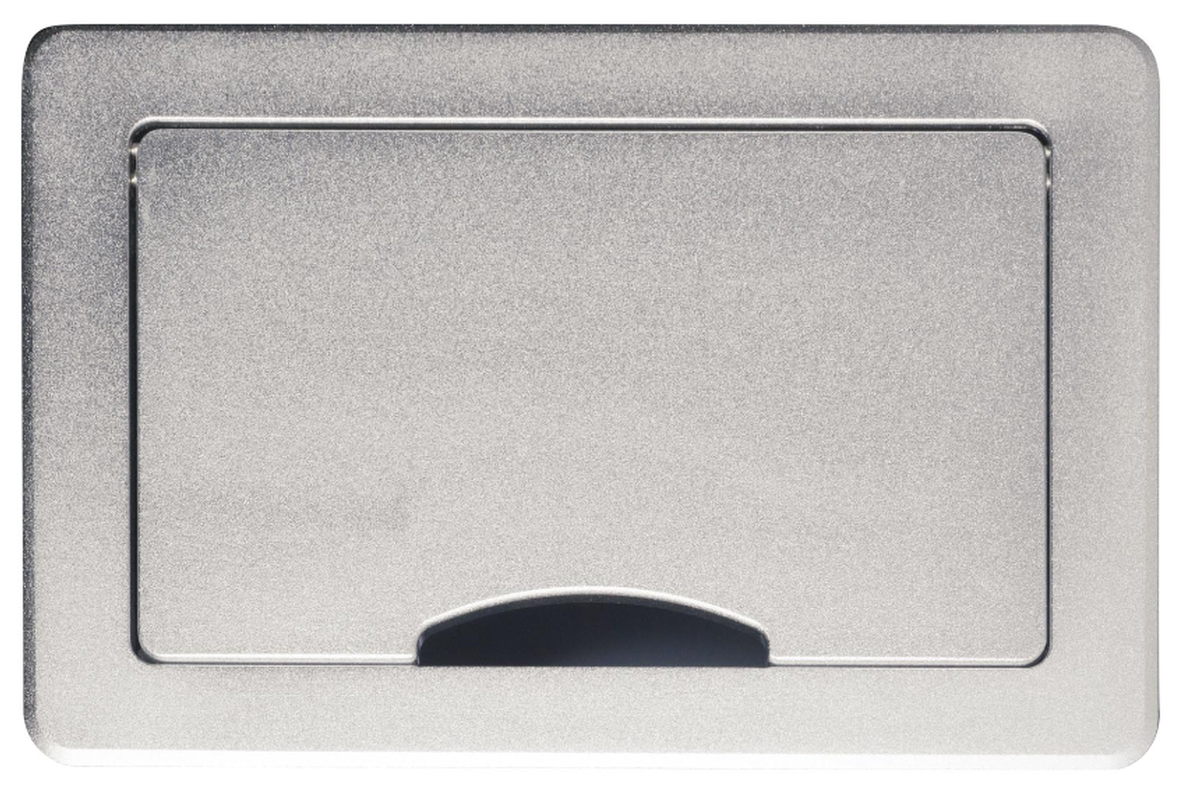

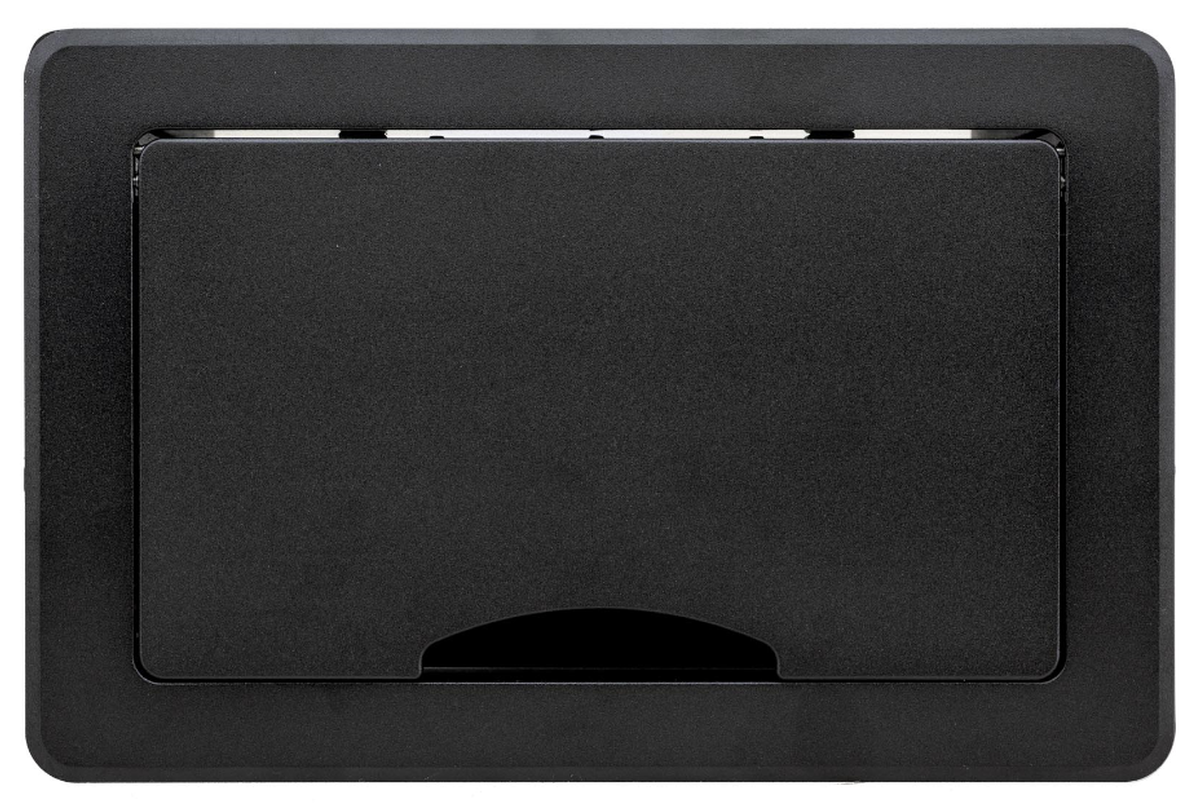

Choose between black anodized aluminum and (silver) clear anodized aluminum.

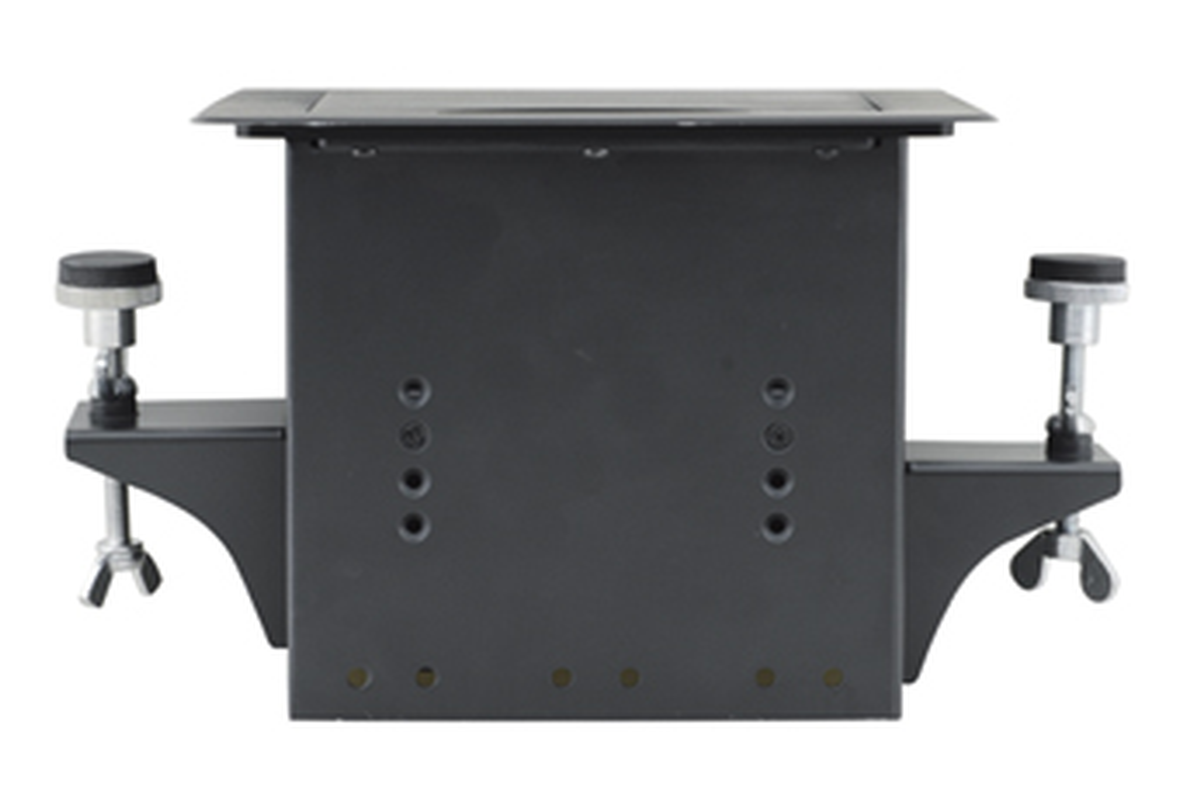

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Table cutout: 8.85" x 4.85"
• The box is 5.1" deep, you can install the connections at different levels in the box in case you need space for cable storage
• Will work in tables from 3/4" to 3" thick
• Mounting hardware included
• Warranty: 7 years

Downloads

• Kramer AV TBUS-6xl-KIT1 Specifications (PDF)
• Kramer TBUS-6xl(B)-KIT1 Cutout Template (PDF)
• Kramer AV TBUS-6xl-KIT1 AutoCAD Drawing
