Kramer AV TBUS-6xl-KIT6
Table Well Box w/ Retractable HDMI & Data w/ Sliding Lid

Description

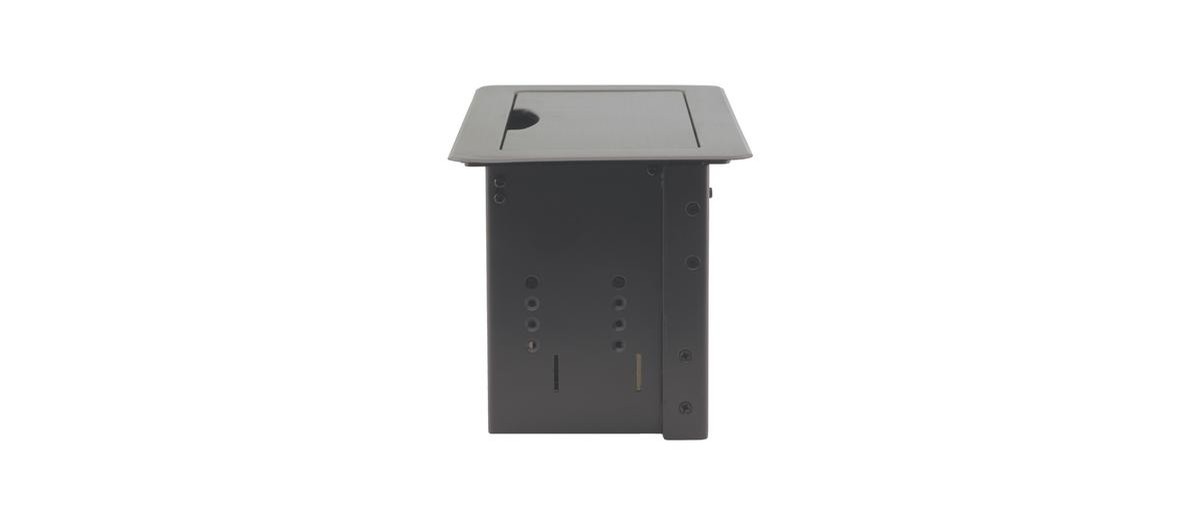

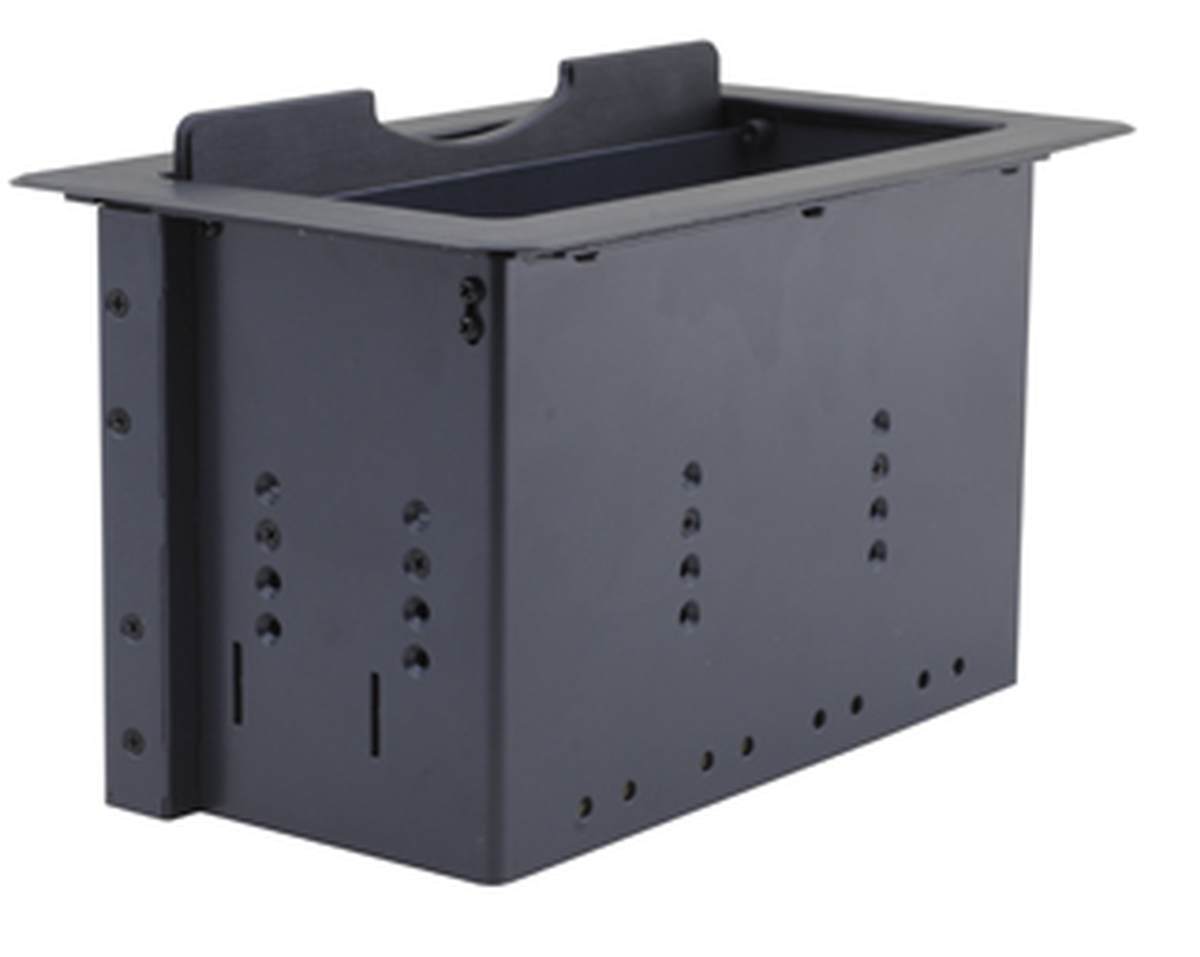

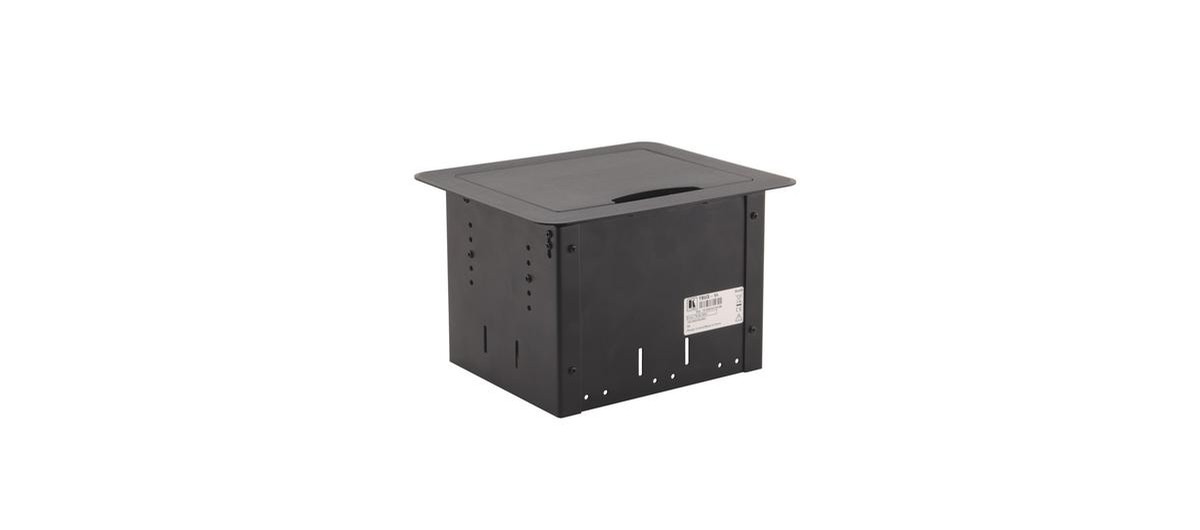

The Kramer TBUS-6xl-KIT6 is a configured table mount enclosure with power and retractable cables.  Retractable cables are an ideal choice as they are always there so you never have to go looking for the correct cable. The lid tilts up and can retract back down in the unit, the lid also has a small pass through opening for cables, this allows cables to pass through with the lid closed.

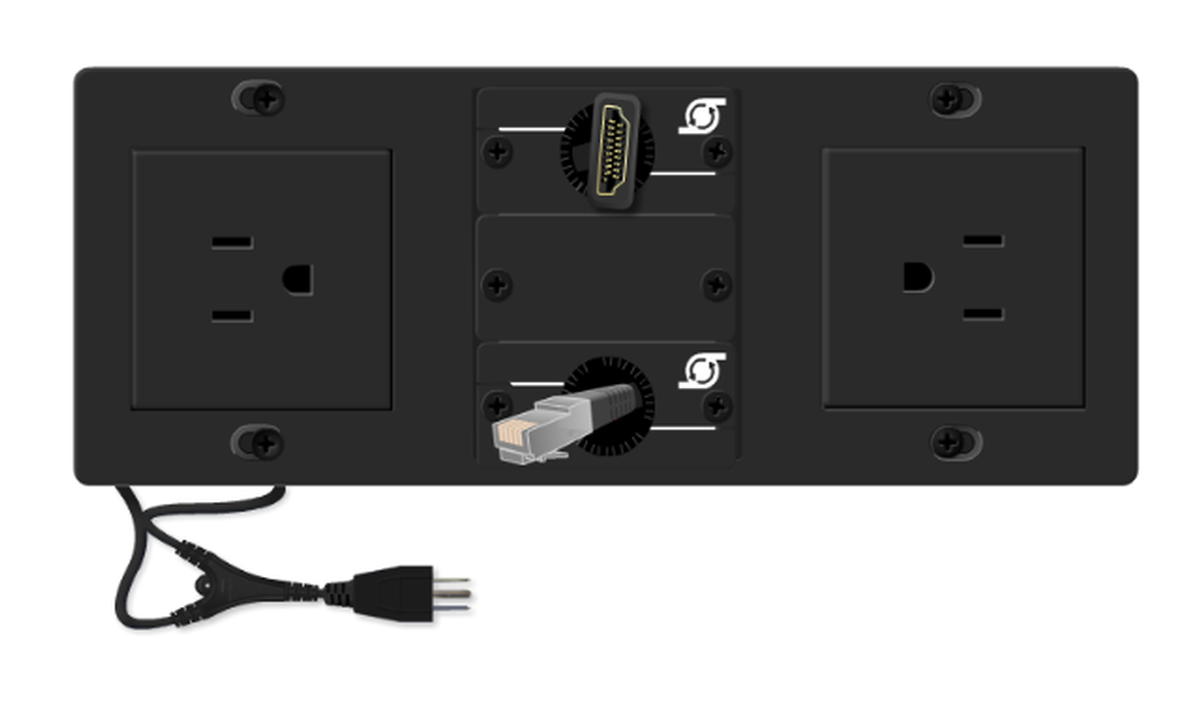

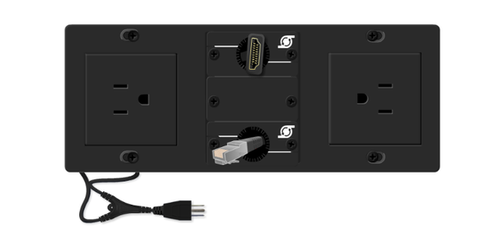

The kit includes the most desired connections:  (2) power with just one 6' cord, (1) 5.9' retractable HDMI and (1) 5.9' retractable RJ45 (Data). The retractable cables all feature a 15" female ended pig tail on the bottom for easy connection.

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

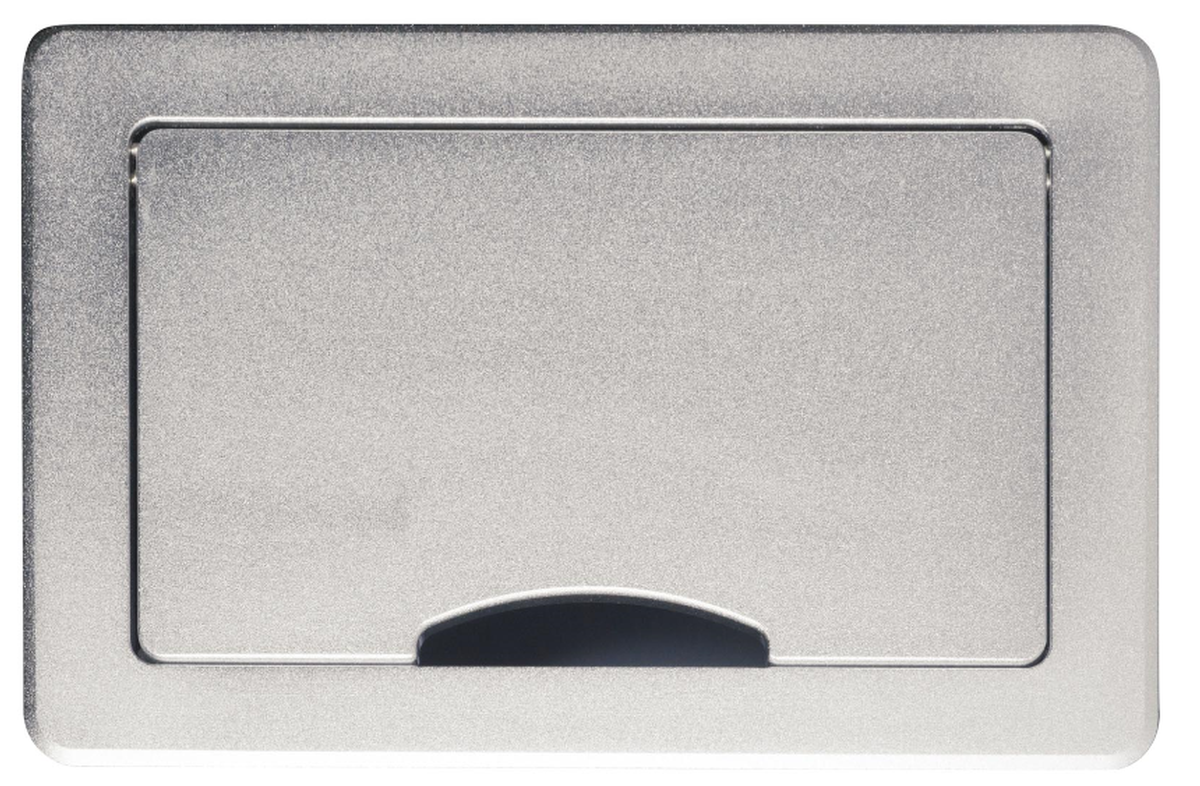

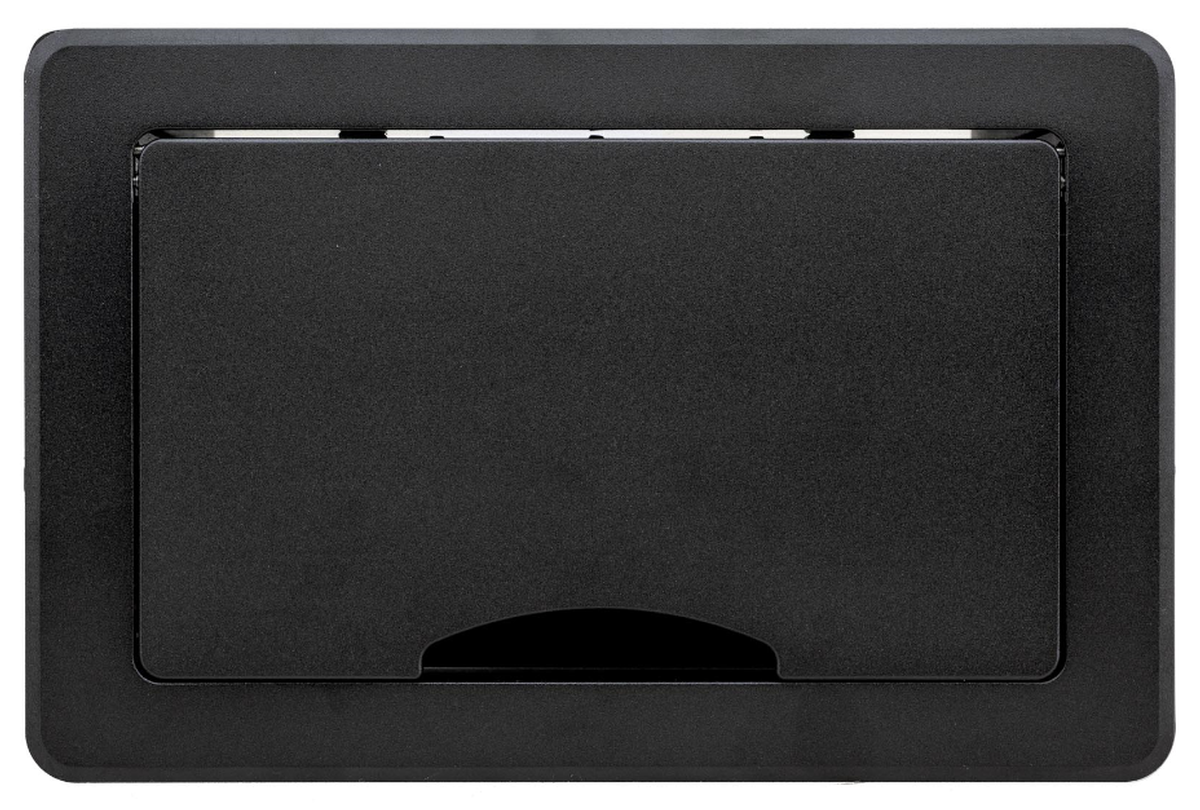

Choose between black anodized aluminum and (silver) clear anodized aluminum.

Applications include: boardrooms, conference rooms, training facilities, lab tables, classrooms and lecterns.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Works in tables up to 3" thick
• The connections can be installed higher or lower in the box if you need cable storage
• Box dimensions: 9.6"W x 5.5"D x 5.1"H
• Table cutout: 8.85" x 4.85"
• Mounting hardware included
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-6xl-KIT6 Specifications (PDF)
• Kramer AV TBUS-6xl-KIT6 Manual (PDF)
• Kramer TBUS-6xl-KIT6 Cutout Template (PDF)
• Kramer AV TBUS-6xl-KIT6 AutoCAD Drawing
