Kramer AV TBUS-6xl-KIT7
Dual Power and Charging USB w/ HDMI Table Box w/ Hiding Lid

Description

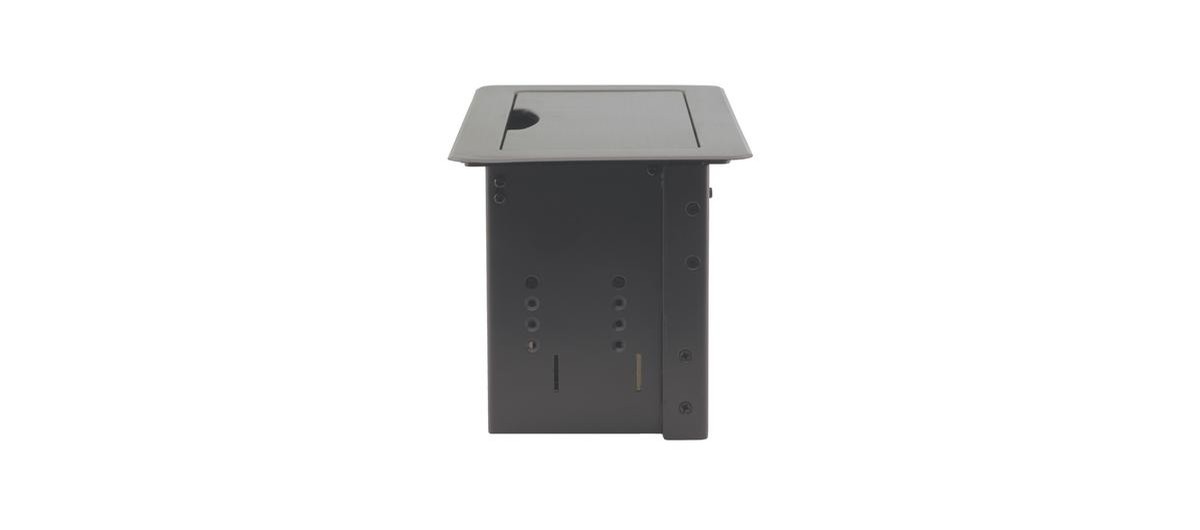

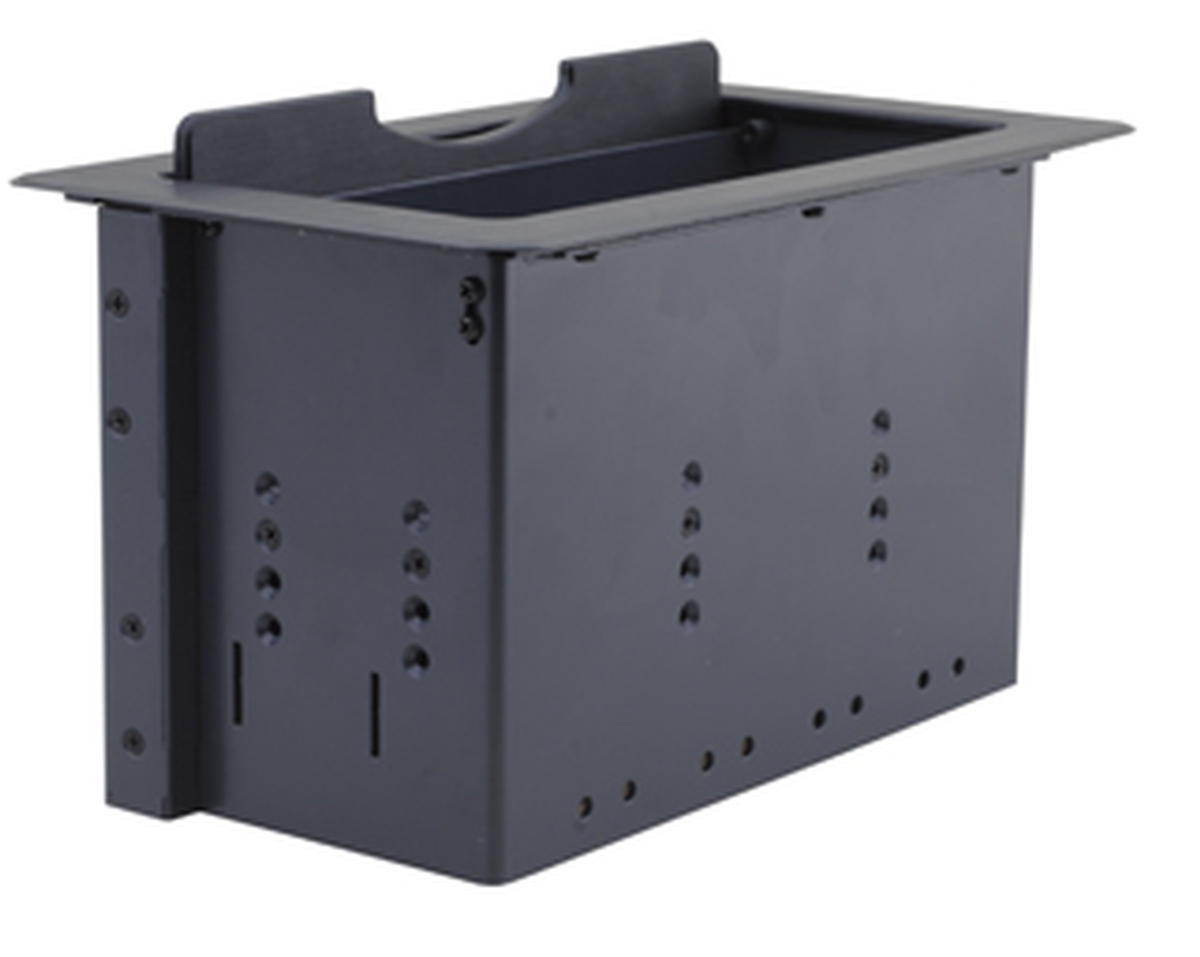

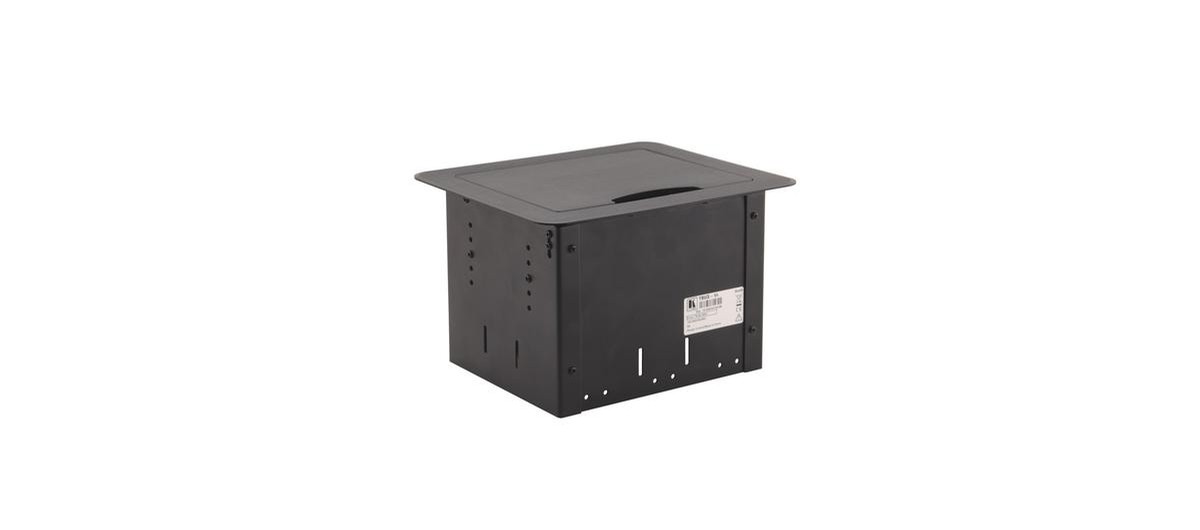

The Kramer TBUS-6xl-KIT7 is a configured table mount enclosure with a tilt up lid that can retract back down in the unit.   The lid also has a small pass through opening for cables, this allows cables to be plugged in with the lid closed.

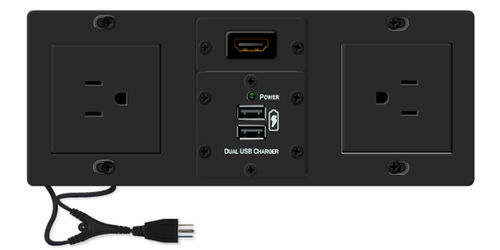

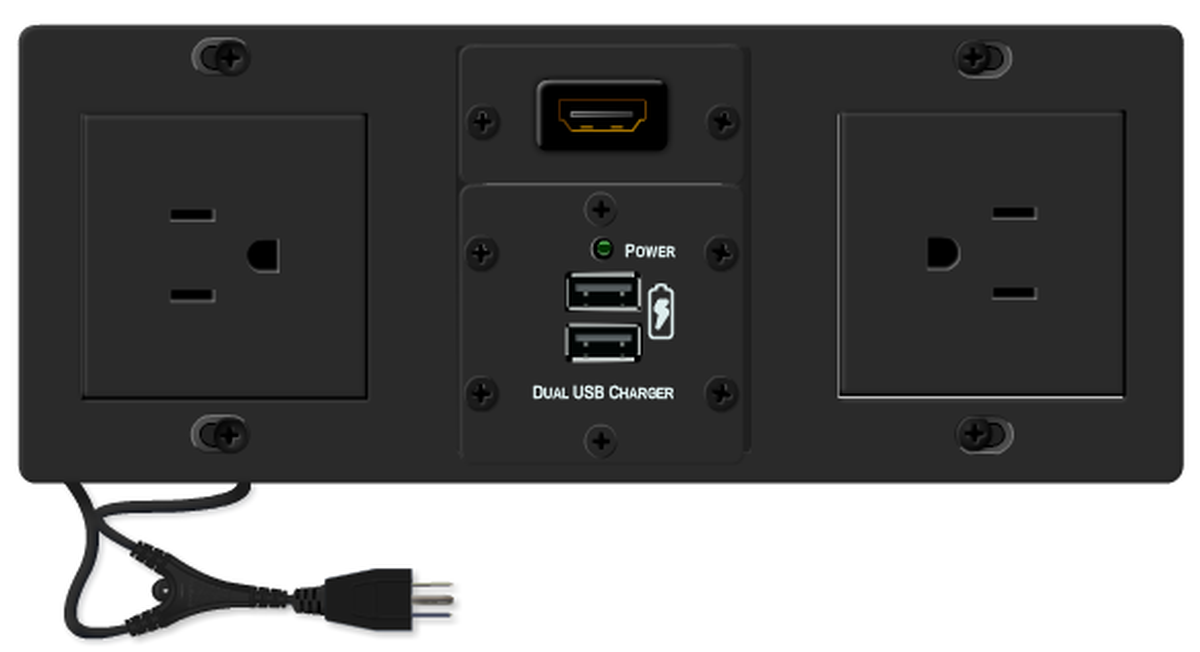

The kit includes the following connections:  2 power with one 6' cord, 2 charging USB, and 1 HDMI. The HDMI connection is female to female for ease of installing cables up to the backside of the connections.

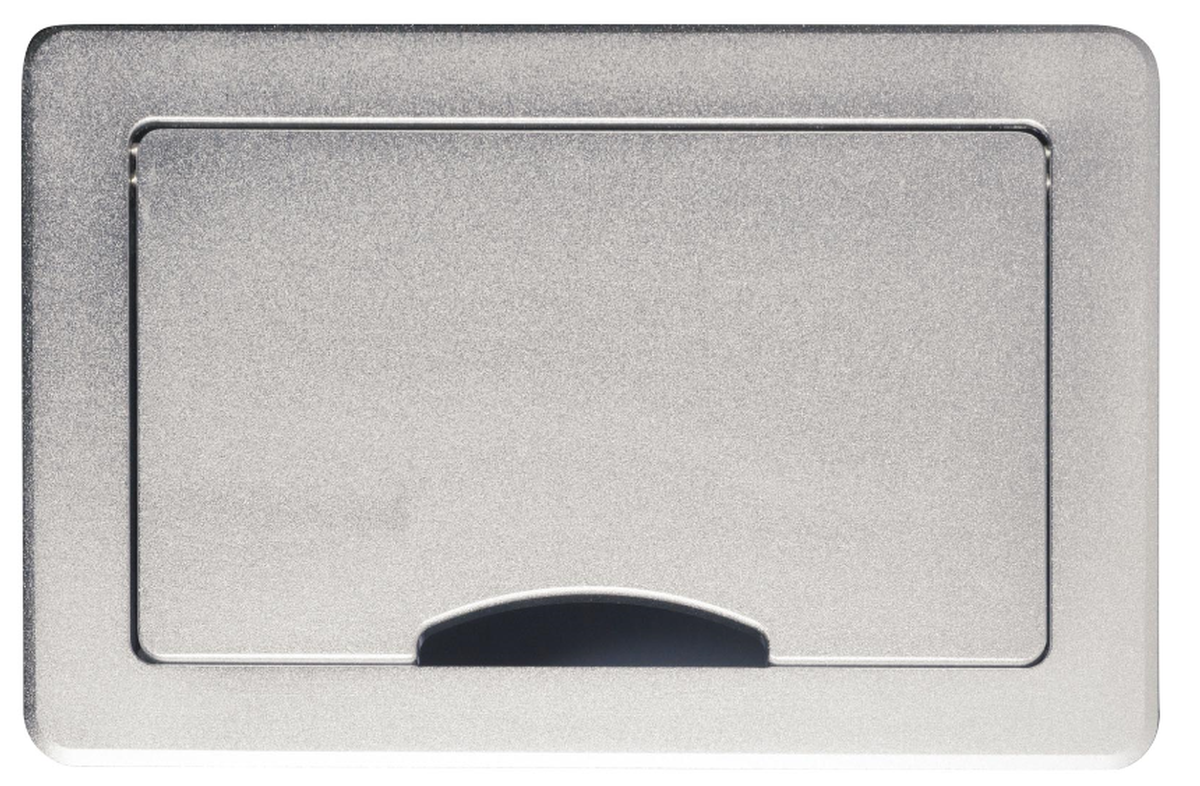

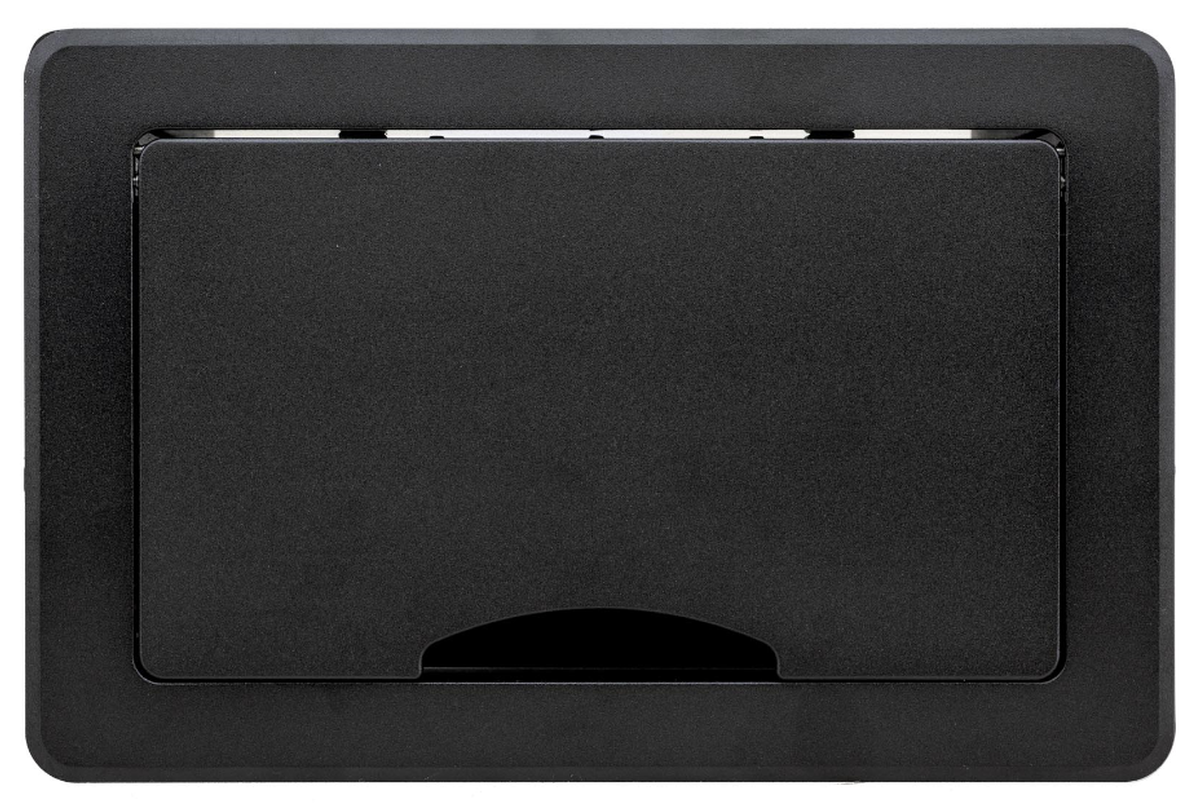

Choose between black anodized aluminum and (silver) clear anodized aluminum.

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

Applications include: boardrooms, conference rooms, training facilities, lab tables, classrooms and lecterns.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Box dimensions: 9.6"W x 5.5"D x 5.1"H
• Table cutout: 8.85" x 4.85"
• Works in tables up to 3" thick
• Mounting hardware included
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-6xl-KIT7 Specifications (PDF)
• Kramer TBUS-6xl(B)-KIT7 Manual (PDF)
• Kramer TBUS-6xl(B)-KIT7 Cutout Template (PDF)
• Kramer AV TBUS-6xl-KIT7 AutoCAD Drawing
