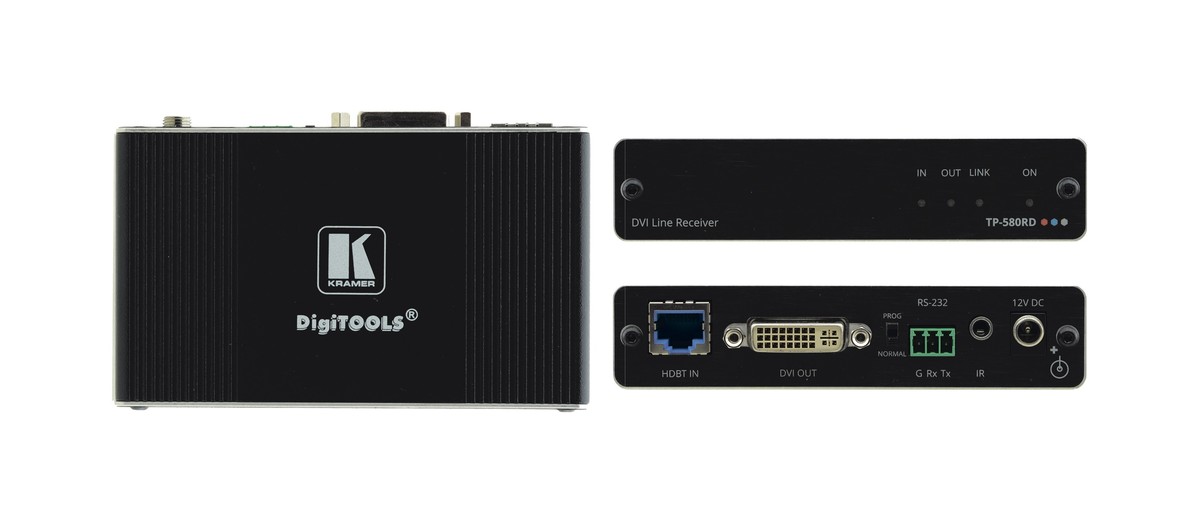

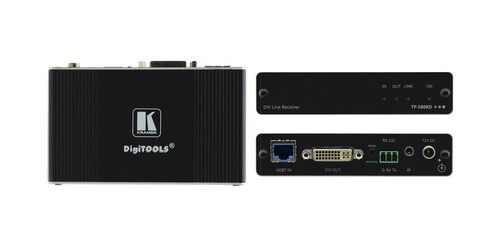

Kramer AV TP-580RD
Long-Reach DVI HDBaseT Receiver, 4K60, HDCP 2.2, RS-232, IR

Description

The Kramer TP-580RD is a powerful DVI over HDBaseT Transmitter solution, that can send high-quality 4K60 signals with IR and RS-232 over twisted pair, via a single-link DVI-I connection.  The TP-580RD is ideal for medical operating rooms and other critical AV extension applications.  This range extender is a highly reliable long-distance extension of professional AV signals - making it ideal for rental and staging events as well as government building applications.

Specifications

• 1 RS-232 on a 9-pin D-sub connector for serial link extension and device firmware upgrade
• Maximum Video Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
• Maximum Video Supported Resolution: 4K@60Hz (4:2:0) 24bpp
• Standards Compliance: HDMI 2.0 and HDCP 2.2
• Accessories Included: Power supply unit
• Power Source: 12V DC, 2A
• Power Consumption: 12V DC, 275 mA
• Product Dimensions (W x H x D): 4.72" x 2.81" x 0.96"
• Product Weight: 0.6 lbs
• Shipping Dimensions (W x H x D): 6.18" x 4.72" x 3.43"
• Shipping Weight: 1.5 lbs

Downloads

• Kramer AV TP-580RD Specifications (PDF)
• Kramer AV TP-580RD Manual (PDF)
• Kramer AV TP-580RD Additional Information (PDF)
