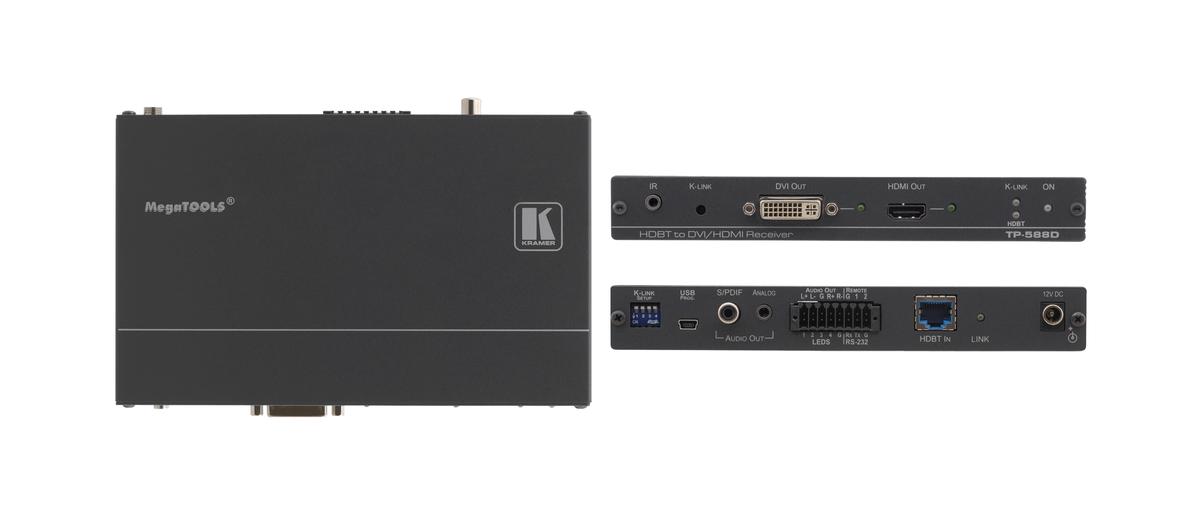

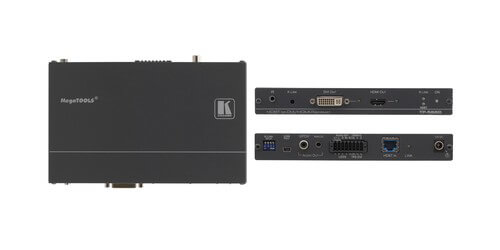

Kramer AV TP-588D
HDMI & DVI, RS-232 & IR over HDBaseT Twisted Pair 4K Receiver

Description

The Kramer TP-588D is a multi output HDBaseT twisted pair receiver for your HDMI signal, it outputs HDBaseT into DVI, HDMI, S/PDIF, balanced stereo audio, IR, and bi-directional RS−232 signals.  The TP-588D receives an HDBaseT twisted pair signal from a compatible transmitter such as the TP-580T or long range TP-580TXR, these compatible transmitters will also send PoE so the receiver does not need power.

The receiver can accept resolutions up to 4K@60 4:2:0, is HDCP compliant, and features auto and lockable EDID

Specifications

• Resolution: 4K@60Hz (4:2:0) UHD support
• 3D Pass-Through
• EDID PassThru: Passes EDID signals between the source and display
• 2K & 4K Support
• Receives PoE
• Bandwidth: 10.2Gbps
• Bidirectional RS-232 & IR Interface: Commands and data can flow in both directions via the RS 232 interface, allowing status requests and remote control of the destination unit
• System Range: Up to 430ft in normal mode and up to 500ft in ultra mode (1080p at 60Hz @24bpp) when using BC HDKat6a cable
• Indicators - Status LEDs for input, output, link and power
• Warranty: 7 years
• Dimensions: 7.38" x 4.53" x 1" W, D, H
• Includes power supply

Downloads

• Kramer AV TP-588D Specifications (PDF)
• Kramer AV TP-588D Manual (PDF)
