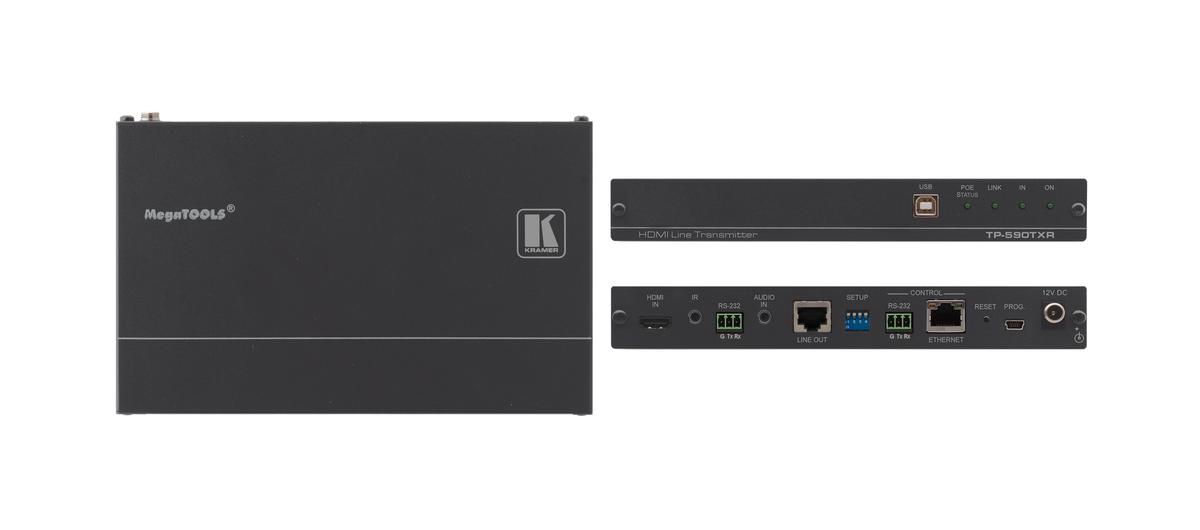

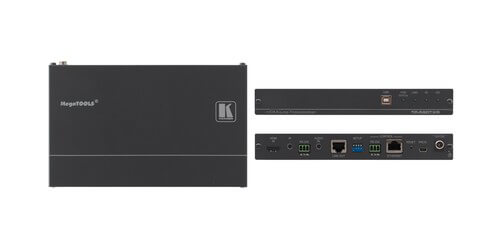

Kramer AV TP-590TXR
HDBaseT 2.0 5-Play 4K HDMI Transmitter

Description

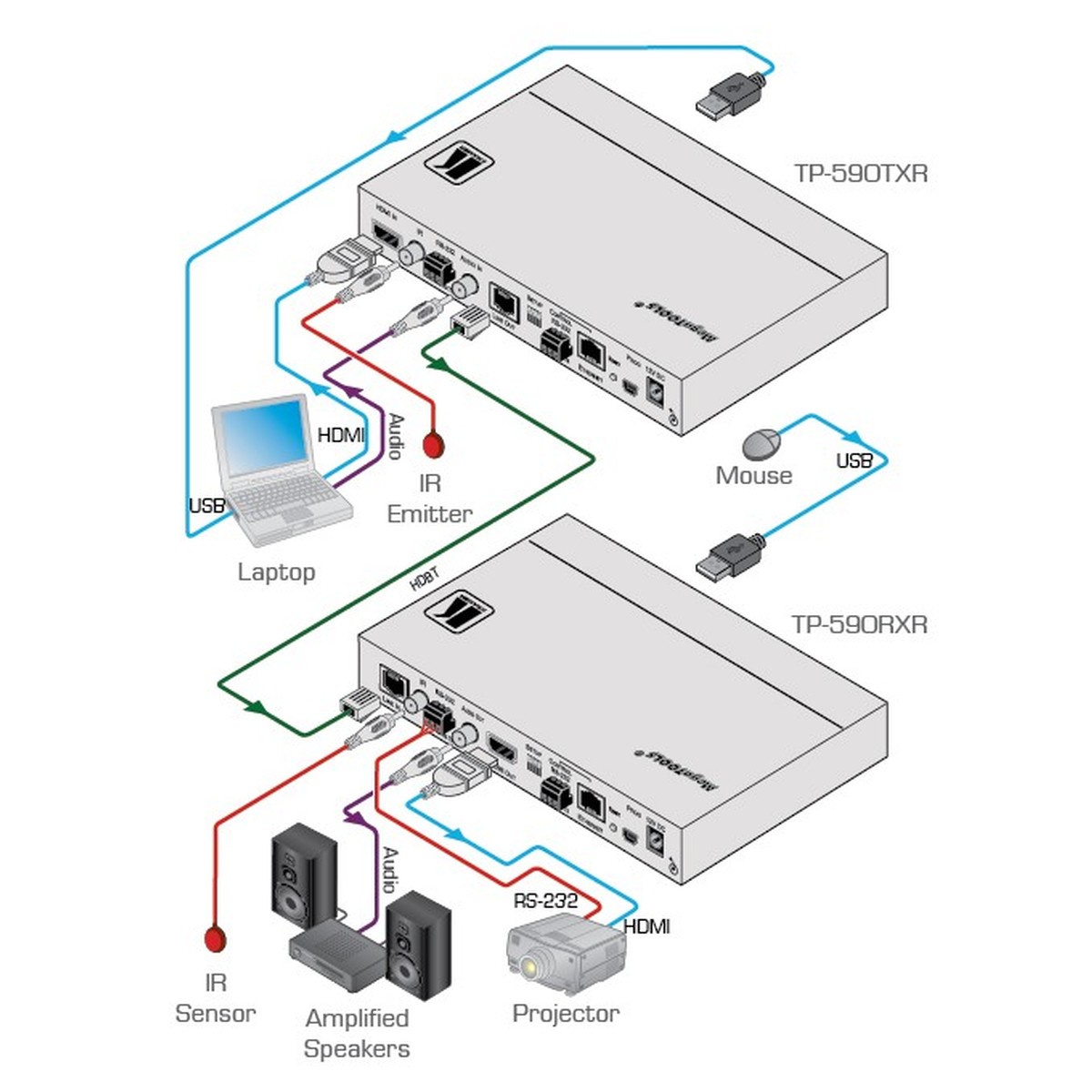

The Kramer TP-590TXR is a an HDBaseT transmitter that meets the HDBaseT version 2.0 specifications. HDBaseT 2.0 adds 5-play and the ability to send HDMI, audio, USB 2.0, Ethernet, and bi-directional IR and RS-232 for control over a single Ethernet cable (shielded Cat6 recommended).  The transmitter supports Power over Ethernet and will power a compatible receiver so it doesn't need a power supply.  The transmitter also features EDID pass through, embedded and unbalanced stereo audio transmission.

The transmitter can send to the sold separately TP-590RXR receiver up to 430ft at normal mode (2K), up to 328ft at normal mode (4K), and  up to 590ft ultra mode (1080p at 60Hz at24bpp when using Kramer's BC−HDKat6a cable.

The Kramer TP-590TXR supports your long distance transmission needs with the latest in HDBaseT 2.0 technology.

Specifications

• Sends PoE to compatible receiver
• Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
• Distance: 430ft at normal mode (2K), up to 328ft at normal mode (4K), and up to 590ft ultra mode (1080p at 60Hz at24bpp when using Kramer'sBC HDKat6a cable
• HDMI and HDCP compliant
• HDMI Support: Deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS HD, CEC, 2K, 4K, 3D
• HDBaseT Certified: V2 support
• Dimensions: 7.4" x 4.45" x 1.0" W, D, H
• Weight: 1.32lbs
• Includes: Power supply
• Warranty: 7 years

Downloads

• Kramer AV TP-590TXR Specifications (PDF)
• Kramer AV TP-590TXR Manual (PDF)
