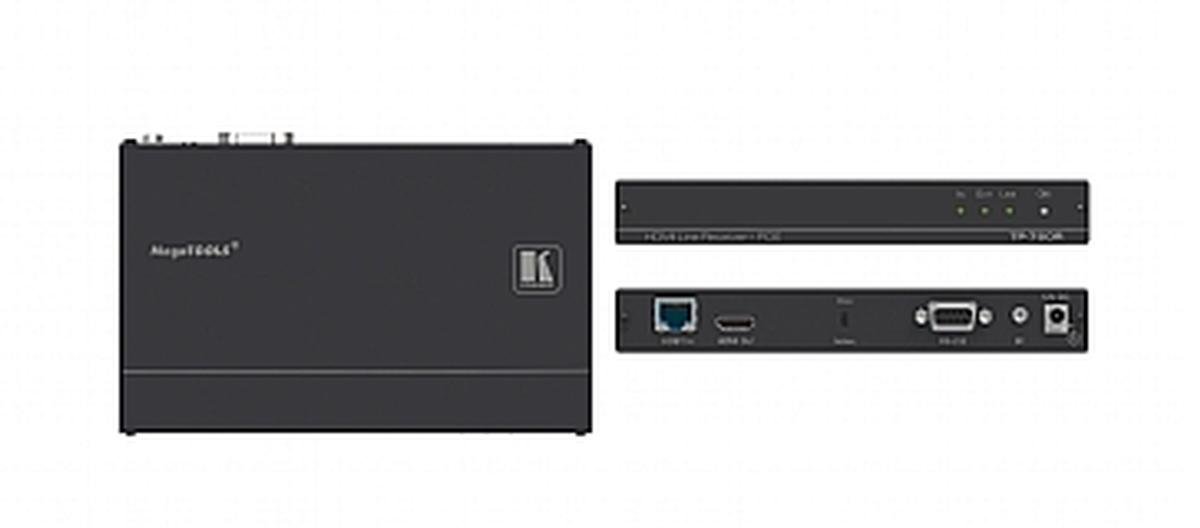

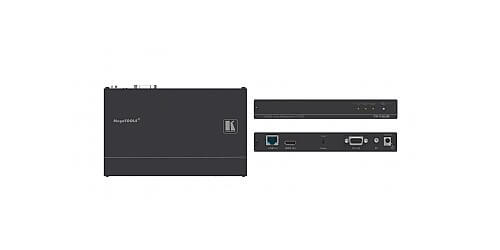

Kramer AV TP-780R
4K UHD HDMI, Bidirectional RS-232 & IR HDBaseT Receiver- 230'

Description

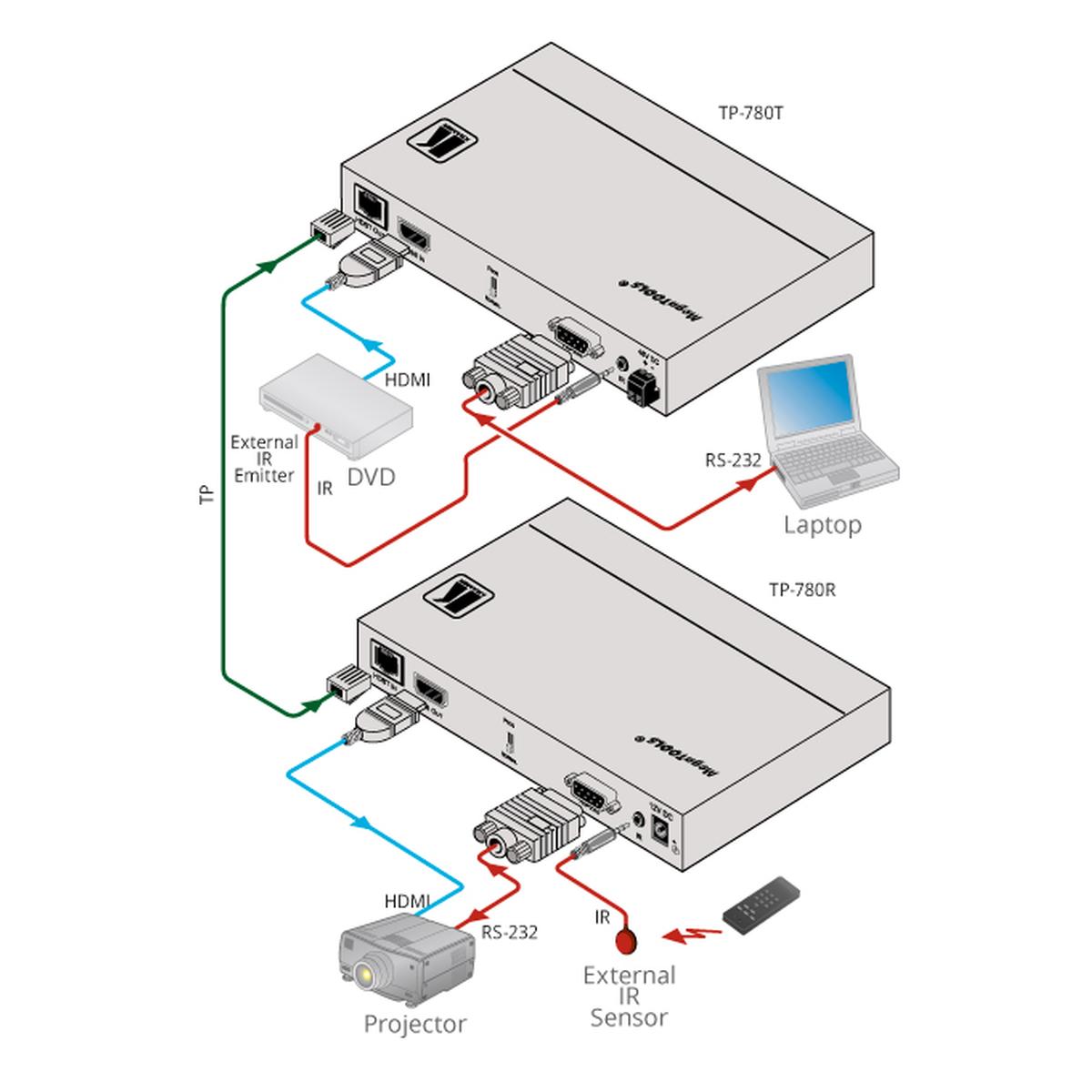

The TP-780R by Kramer is a 4K UHD twisted pair receiver for HDMI, bi-directional for RS-232 and IR signals. With supported resolutions up to 4K60 (4:2:0) this receiver is perfect for use in Projection systems in your conference rooms, hotels, boardrooms, auditoriums, and production studios. One of the newest additions in this TP line is the 780 model supports Power over Ethernet (PoE). It will receive a twisted pair signal from the TP-780T that it converts into HDMI, bidirectional RS−232, and IR signals. Offering HDBaseT Technology, the receiver is also HDCP compliant and HDTV compatible. Power supply is included in the box with the TP-780R and backed by Kramer's 7 Year warranty.

Specifications

• Power Over Ethernet: Allows a single HDBT LAN cable to provide both data and electrical power to compatible device
• Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
• System Range: 230' at 2K, 130' at 4K UHD resolutions
• HDMI Support: Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS HD, CEC
• 2K & 4K Support
• 3D Pass-Through
• Power supply included
• Bidirectional RS-232 & IR Interface: Commands and data can flow in both directions via the RS 232 interface, allowing status requests and remote control of the destination unit
• Warranty: 7 Years

Downloads

• Kramer AV TP-780R Specifications (PDF)
