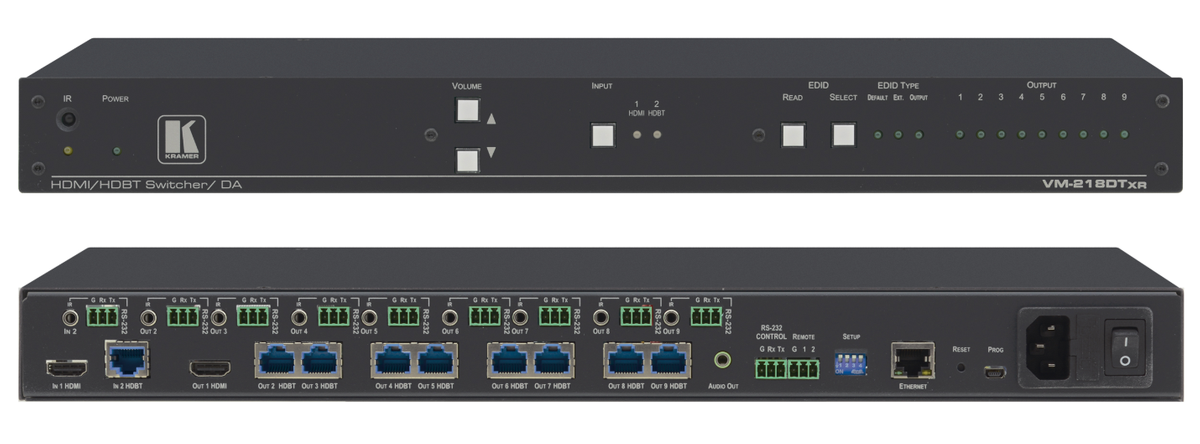

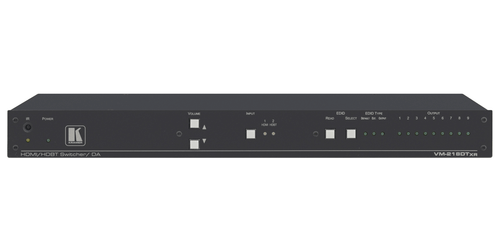

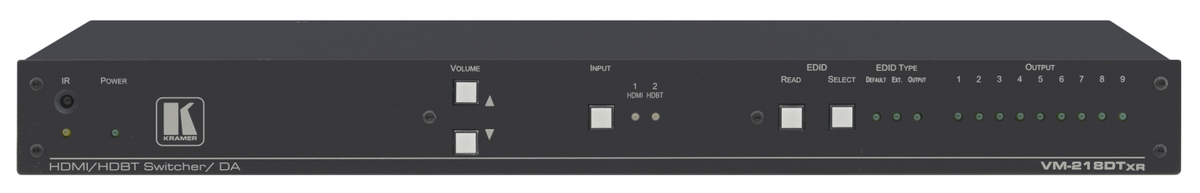

Kramer AV VM-218DTXR
HDMI and Extended-Reach HDBaseT Distribution Amplifier

Description

Kramer's VM-218DTXR is a high-quality, extended-reach 4K@60Hz (4:2:0) HDBaseT 2x1:8 distributor. It takes an HDMI or a long-reach HDBaseT input and equalizes then re-clocks the signal and distributes it to eight identical extended-reach HDBaseT outputs featuring RS-232/IR control signals. The integrated extender distributor includes a loop HDMI output with audio de-embedding to analog stereo port. Looping HDMI outputs enable monitoring and cascading to additional distribution amplifiers. An EDID handling, processing, and pass-through algorithm ensures plug-and-play operation for HDMI source and display systems. EDID signals are passed from the source to the display.

The standard extender distributor can connect to any HDBaseT-compliant extending product. It extends 4K@60Hz (4:2:0) 24bpp video resolution signal to maximum 130 ft long-reach over CAT copper cable. The extender can send signals farther than 130 feet for lower HD video resolution. For optimum range and performance, use recommended Kramer cables.

HDMI 2.0- and HDCP 1.4-compliant signal, supporting deep color, x.v.Color, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. Remote device management via built-in web pages or RS-232 control connection. Rack mountable enclosure for mounting in a 1U rack space with included ear rack adapter.

Key Features

• Bidirectional RS-232 Extension – Serial interface data flows bidirectionally on each extension line, enabling data transmission and device control
• Bidirectional Infrared Extension – IR interface data flows bidirectionally on each extension line, enabling remote control of peripheral devices located at either end of the extended line
• Audio Drop (De-embed) – The transmitted digital audio signal is converted to an analog signal and de-embedded to stereo unbalanced analog audio output
• Cost-effective Maintenance – Status LED indicators for HDMI and HDBT ports
• Easy Installation – Twisted-pair cables for HDBaseT signals wiring

Specifications

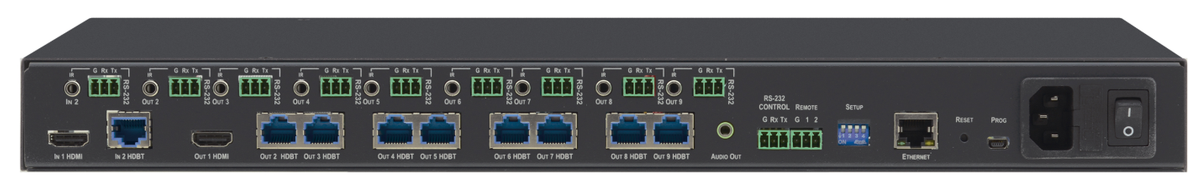

• Outputs
• 1 HDMI: On a female HDMI connector
• 8 HDBaseT: On RJ-45 female connectors
• 1 Stereo Analog Audio: On a 3.5mm mini jack
• Ports
• 1 Ethernet: On an RJ-45 female connector
• 8 IR: On 3.5mm mini jacks
• 8 RS-232: On 3-pin terminal blocks
• Video
• Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
• Max. Resolution: 4K@60Hz (4:2:0) 24bpp
• Standards Compliance: Supports HDMI 2.0, HDCP 1.4, and HDBaseT 1.0
• Extension Line
• Range Extension (Input or Output Each Side): Up to 330 ft at 4K @60Hz (4:2:0), up to 430 ft at full HD (1080p @60Hz 36bpp), up to 590 ft at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp) when using Kramer HDBaseT cables
• Range Extension (Input or Output Each Side): Note: When using Kramer HDBaseT cables
• User Interface
• Controls: Input select button, EDID read/select buttons, RS 232 control & remote, local and remote IR controls, Ethernet Indicator LEDs: IR communication, Power, IN 1 HDMI, IN 2 HDBT, OUTPUT 1 8, EDID TYPE Default, External, Output
• Power
• Source: 100-240V AC 50/60Hz
• Consumption: 800mA
• Enclosure
• Cooling: Forced air, fan
• Type: Aluminum
• Regulatory Standards Compliance
• Vibration: ISTA 1A in carton (International Safe Transit Association)
• Safety: CE
• Environmental: Complies with appropriate requirements of RoHs and WEEE
• Included Accessories
• Included: Power cord, rack ears
• Dimensions
• 19" x 9.34" x 1U (W x D x H)
• Product Weight
• 5.4 lbs approx.
• Shipping Dimensions
• 20.67" x 12.99" x 4.21" (W x D x H)
• Shipping Weight
• 7.1 lbs approx
