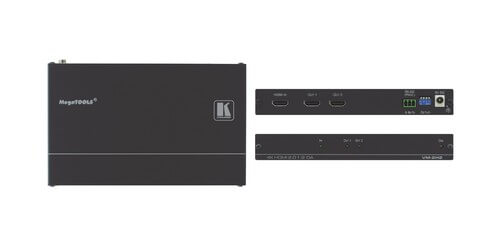

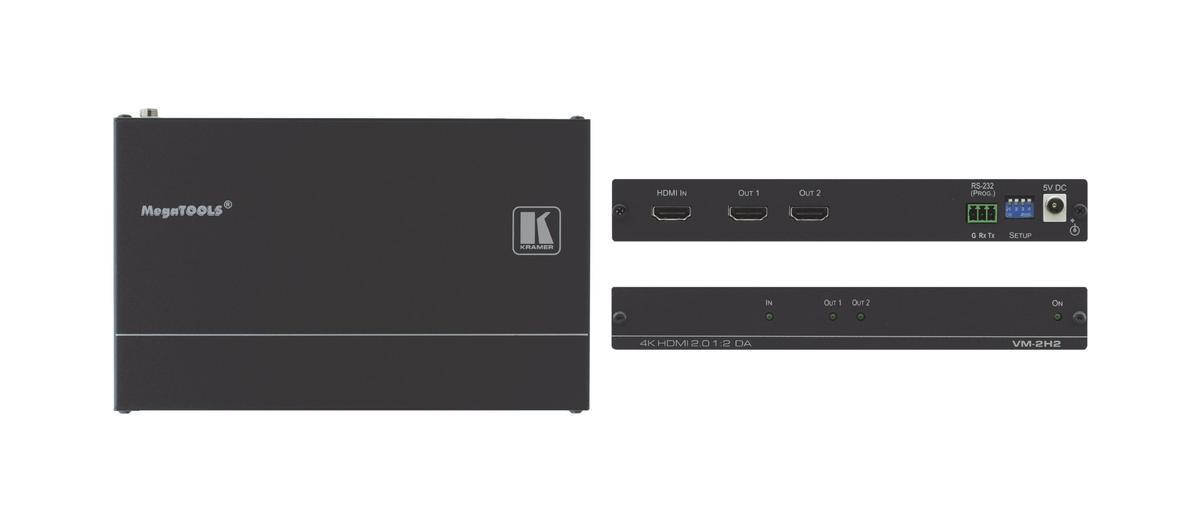

Kramer AV VM-2H2
4K@60Hz UHD (4:4:4) HDMI 2.0 1x2 Distribution Amplifier - HDCP 2.2

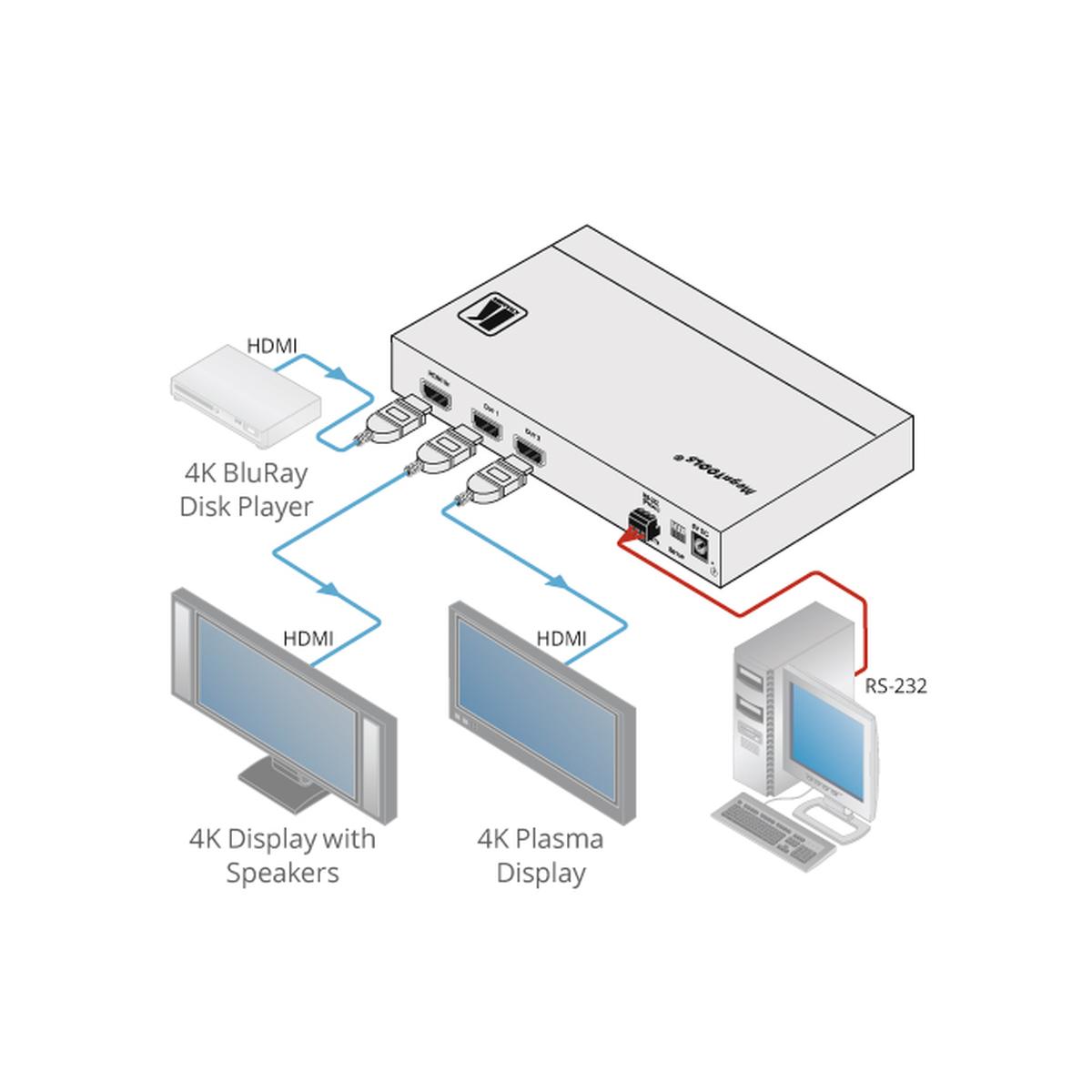

 application diagram.jpg)
- Resolutions: Up to Up to 4K@60Hz UHD (4:4:4)
- Max. Data Rate: 17.82Gbps
- HDMI & HDCP 2.2 Compliant
- Input: 1 HDMI Connector
Description
The VM-2H2 from Kramer is a high-quality distribution amplifier for full 4K UHD HDMI 2.0 signals. This DA has the ability to be a true 4K device as it features amazing resolutions up to 4K@60Hz UHD (4:4:4), and a max data rate of 17.82Gbps. This distribution amplifier works by taking in 1 HDMI signal, re-clocks and equalizes the signal, then distributes it to two identical HDMI outputs with resolutions of up to 4K@60Hz (4:4:4) UHD. By rebuilding the digital signal and "re-Klocking" it, this will strengthen signal integrity to allow to travel longer distances. This makes the VM-2H2 an ideal solution for use in digital signage, entertainment and retail type settings, as well for medical and government defense type applications that may require distributing signals that contain the best in high-resolution support. With HDCP 2.2 and HDMI 2.0 support this is an amazing compact distribution amplifier that can handle amazing resolutions to fit all your professional grade type applications.
One of the primary features this distribution amplifier is Kramer's unique Equalization & "re-Klocking" Technology that rebuilds digital signals for longer range distances. This unit also carries with it a default EDID for fast and efficient connection of the unit, the default EDID feature will let you connects the VM-2H2 without having to connect a display to the output. Operating modes are selectable by DIP-switch which include force RGB, lock, EDID, HDCP enable, and programming mode. This device is HDTV compatible, and has Dynamic Range Support (HDR) and has full HDMI support: Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
Equally the VM-2H2 would be a great addition for the high-end home theater enthusiast that wants the best resolutions from their system. Setting up the distribution amplifer is extremely user friendly and offers a true plug and play experience, for example simply hook up your 4K BluRay Player to the HDMI input, and then connect up to 2 high-end 4K displays through the two identical HDMI outputs, power on the devices and you will be up and running in a matter of minutes sending and receiving crisp full 4K UHD resolutions for your viewing pleasure to up to two high-quality flat panel displays that have 4K abilities. Do not to achieve proper hand-shaking and get full 4K resolutions all the cables going to and from the distribution amplifier must as well be 4K@60Hz (4:4:4) rated.
The VH-2H2 comes with its own external power supply that operates off of 5V DC, and with its compact and rugged design, two units can be rack mounted side-by-side in a 1U rack space using the Kramer RK-T2B (not inlcuded) optional rack adapter. Comes backed by a 7 year warranty from Kramer
Specifications
- Outputs: 2 HDMI Connectors
- Port: 1 RS-232 for firmware upgrades
- HDMI Support: Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS HD, CEC
- HDTV Compatible
- Default EDID: For fast and efficient connection of the unit
- 3D Pass Through
- Dynamic Range Support (HDR)
- Kramer Equalization & re-Klocking Technology: Rebuilds the digital signal integrity to travel longer distance
- Indicator LED's: On, In, Out 1 to 2
- Power Consumption: 5V DC, 730mA
- Included Accessories: Power Supply
- Optional Accessories: RK-T2B 19" rack adapter (not included)
- Warranty: 7 Years
