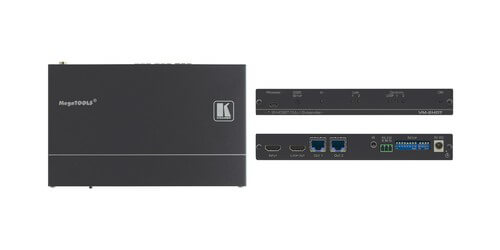

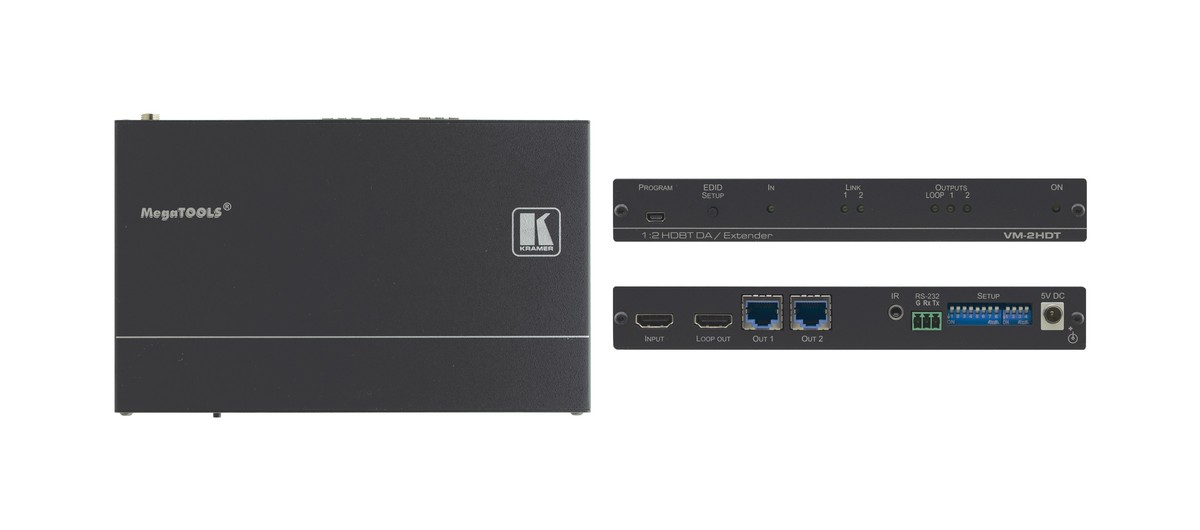

Kramer AV VM-2HDT
1x2 +1 4K60 4:2:0 HDMI to HDBaseT Distribution Amplifier - 130'

Description

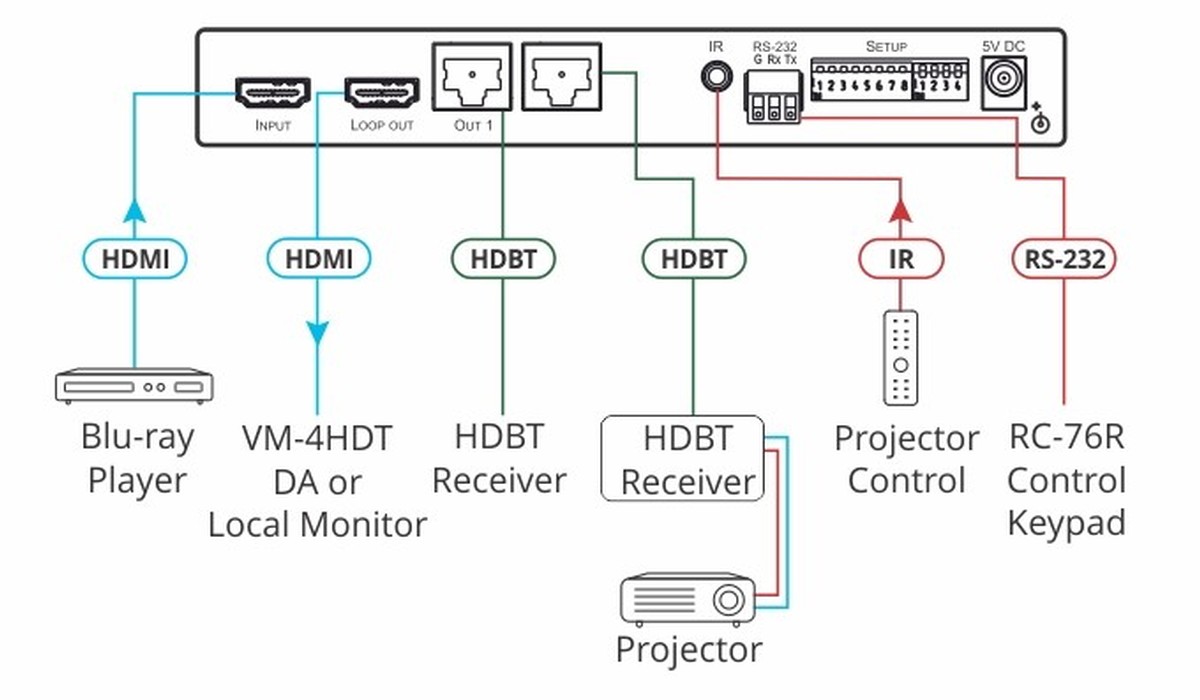

The Kramer VM-2HDT is a high-quality, long-reach 1:2 HDBaseT extender distributor.  The VM-2HDT takes one HDMI input with IR and RS-232 control signals and converts it to an HDBaseT extension line signal.  The VM-2HDT then distributes it to 2 HDBaseT outputs connected to compatible HDBaseT receivers, such as TP-580R.  The extender distributes signals with resolutions of up to 4K@60Hz (4:2:0) and includes an HDMI LOOP output for connecting to an additional unit in a daisy chain.

Key Features:

• 1:2 HDMI extender distributor
• Up to 230 feet at 1080p
• Up to 130 feet at 4K (4:2:0)
• Up to 4K@60Hz (4:2:0) 24bpp video resolution
• HDMI 2.0, HDCP 1.4, HDBaseT 1.0 compliance
• MegaTOOLS®: Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
• Audio: E

Specifications

• 1 Loop HDMI on an HDMI female connector
• Included Accessories: Power supply
• Power Source: 5.2V DC, 4A
• Power: Consumption: 5V DC, 1.6A
• Product Dimensions (W x D x H): 7.38" x 4.53" x 1.00"
• Product Weight: 1 lbs Shipping Dimensions (W x D x H): 13.58" x 6.50" x 2.05"
• Shipping Weight: 2.8lbs

Downloads

• Kramer AV VM-2HDT Specifications (PDF)
• Kramer AV VM-2HDT Manual (PDF)
• Kramer AV VM-2HDT Additional Information (PDF)
