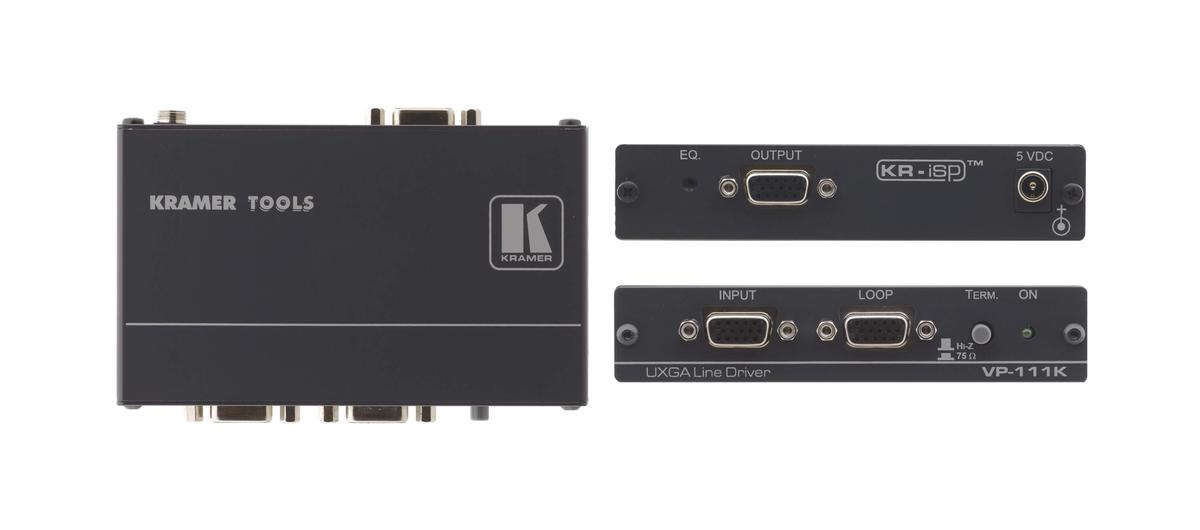

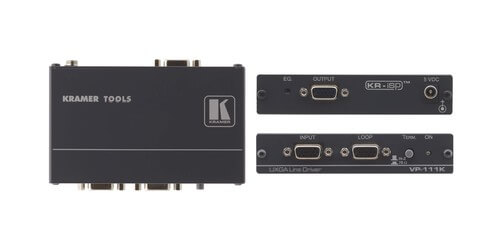

Kramer AV VP-111K
1:1 XGA Line Driver with Loop with KR-ISP Signal Processing

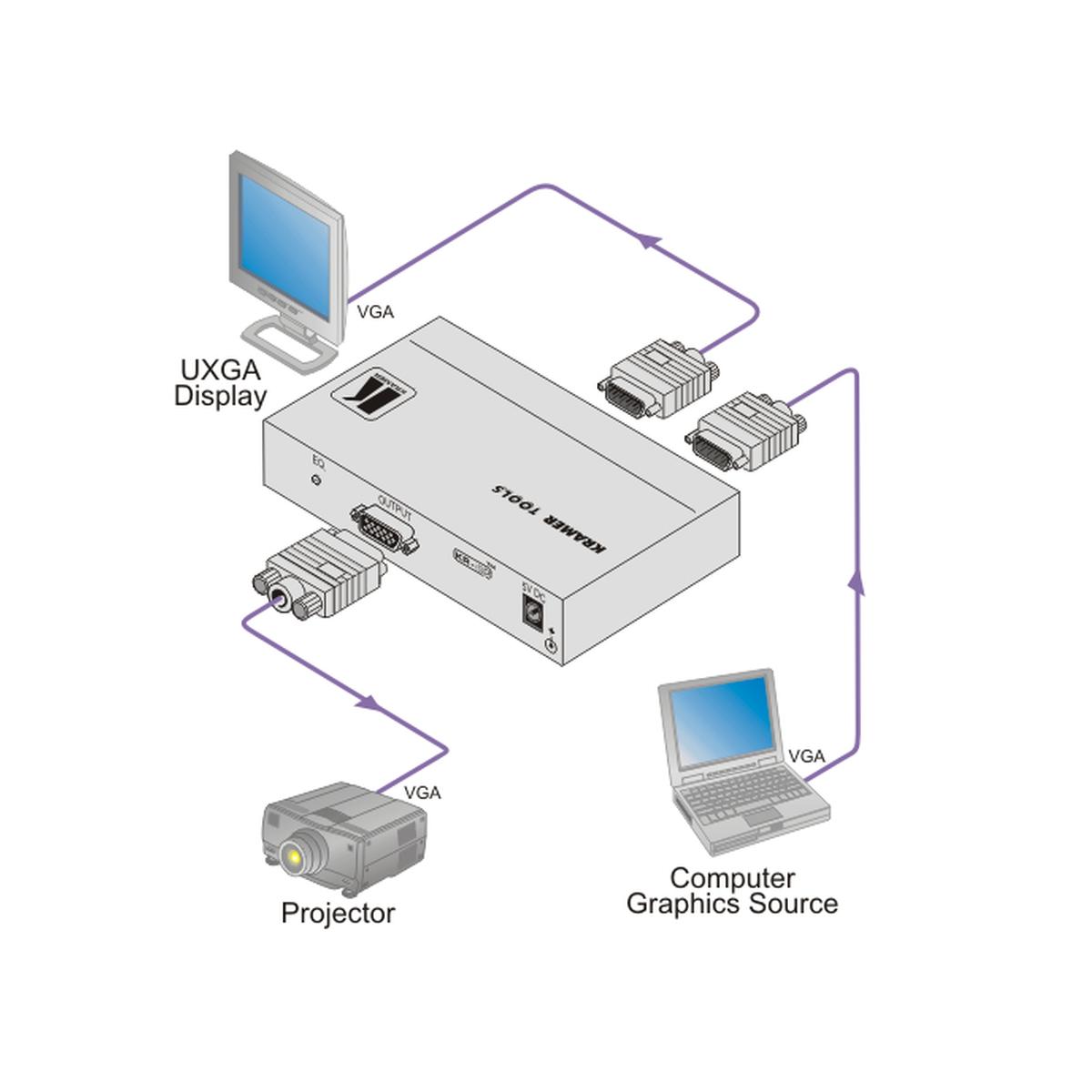

 application diagram.jpg)
- Input: 1 UXGA with loop on a 15-pin connector
- Output: 1 UXGA on a 15-pin HD connector
- Bandwidth: 500MHz
- Max. Output Level: 2.2Vpp
-Timothy J.
Description
The VP-111K from Kramer is a high-performance line driver for signals exceeding UXGA. This line driver works by accepting one input, provides the proper buffering and isolation, and the outputs the amplified and equalization signal to a remote acceptor. It also loops the input signal to a local monitor (or some other acceptor). The VP-111K features a high bandwidth of 500MHz that drives very long high-resolution lines ensuring transparency even at the highest resolutions. Other added features of this device include: a TERM switch for input signal termination, and Kramer's KR-ISP advanced sync processing which ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. With the compact size of this device up to 3 units can be rack mounted side by side in a 1U rack space.
Specifications
- EQ Control
- Looping Input
- Selectable Sync Input Impedance
- Coupling: DC
- Power Consumption: DC
- Included Accessories: Power Supply & Mounting Bracket
- Optional Rack Adapter: Kramer RK-3T Warranty: 7 years
