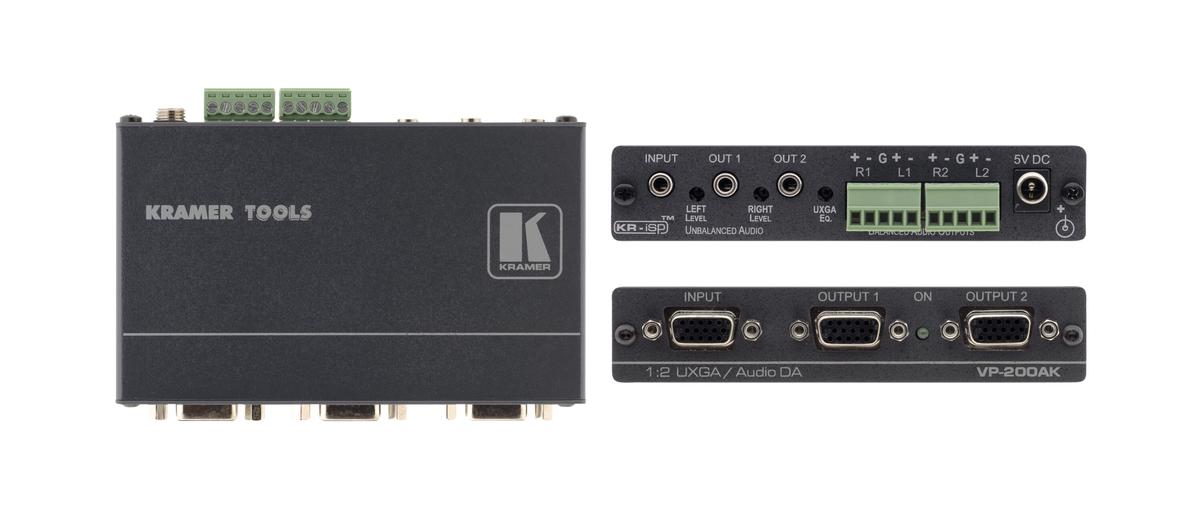

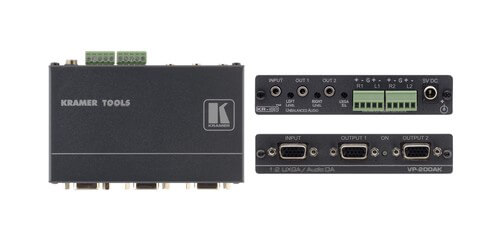

Kramer AV VP-200AK
1:2 XGA & Stereo Audio DA with KR-ISP Signal Processing

Description

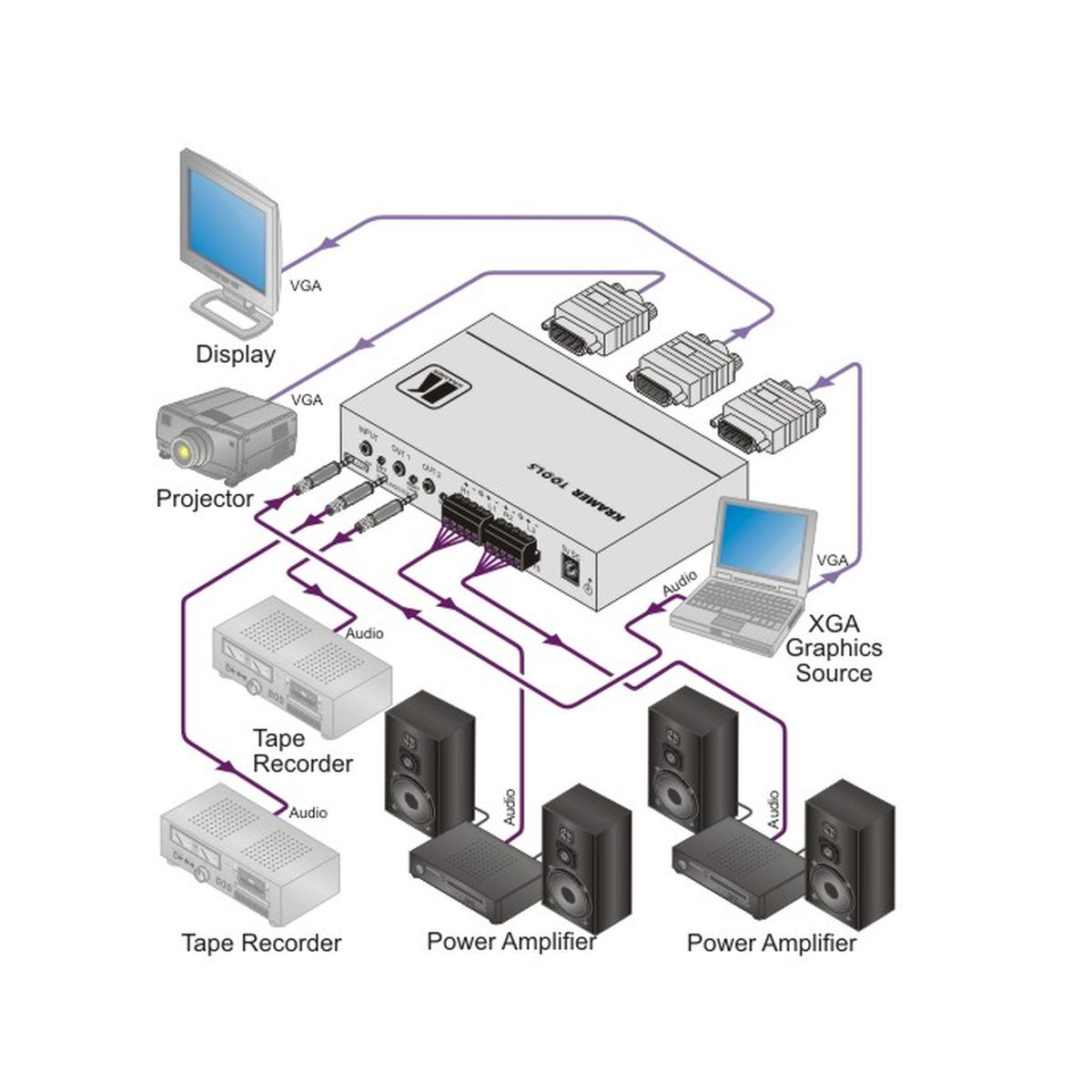

The VP-200AK from Kramer is a 1x2 computer graphics video distribution amplifier for computer graphics video signals, with resolutions up to and exceeding UXGA, and unbalanced stereo audio. This device features Kramer's Kr-isp Advanced Sync Processing which ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync the signal waveform. The Kr-isp feature can equally be enabled or disabled. The distribution amplifier works by taking one computer graphics and stereo audio input, provides the correct buffering and isolation, then outputs two computer graphics video, two balanced, and two unbalanced stereo audio signals. It is suitable for rental and staging systems, schools, and corporate applications. Features for the VP-200AK include a high video bandwidth of 510MHz to ensure transparency even at high-resolutions, HDTV compatible, and ID Bit Control. The front panel includes left and right signal level trimmers, which allow you to adjust the audio signal levels. The amplifier provides ID bit control and separate controls for audio output level and UXGA equalization and includes a UXGA EQ trimmer, which adjusts the video EQ (equalization) compensation.

The compact size of this device makes it so 3 of these units can be rack mounted side-by-side in a 1U rack space using the optional recommended rack adapter RK-3T. The VP-200AK comes backed by a 7 Year warranty from Kramer.

Specifications

• Audio Outputs: 2 unbalanced stereo audio on 3.5mm mini jacks, 2 balanced stereo audio on detachable 5-pin terminal blocks
• ID Bit Control
• UXGA EQ Trimmer
• Left and Right Signal Level Trimmers
• EQ (Peaking) Audio Level (Gain) Controls
• DC Coupling: Video
• AC Coupling: Audio
• HDTV Compatible
• Max. Output Level: Video: 2.0Vpp / Audio: 7.2Vpp
• Video Bandwidth: 510Mhz
• Audio Bandwidth: 100kHz
• Power Consumption: 5V DC
• Included Accessories: Power Supply, Mounting Bracket, 3ft 15-pin HD Cable
• Warranty: 7 Years

Downloads

• Kramer AV VP-200AK Specifications (PDF)
• Kramer AV VP-200AK Manual (PDF)
