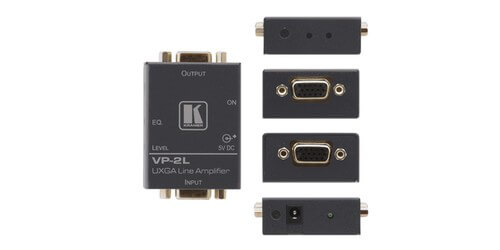

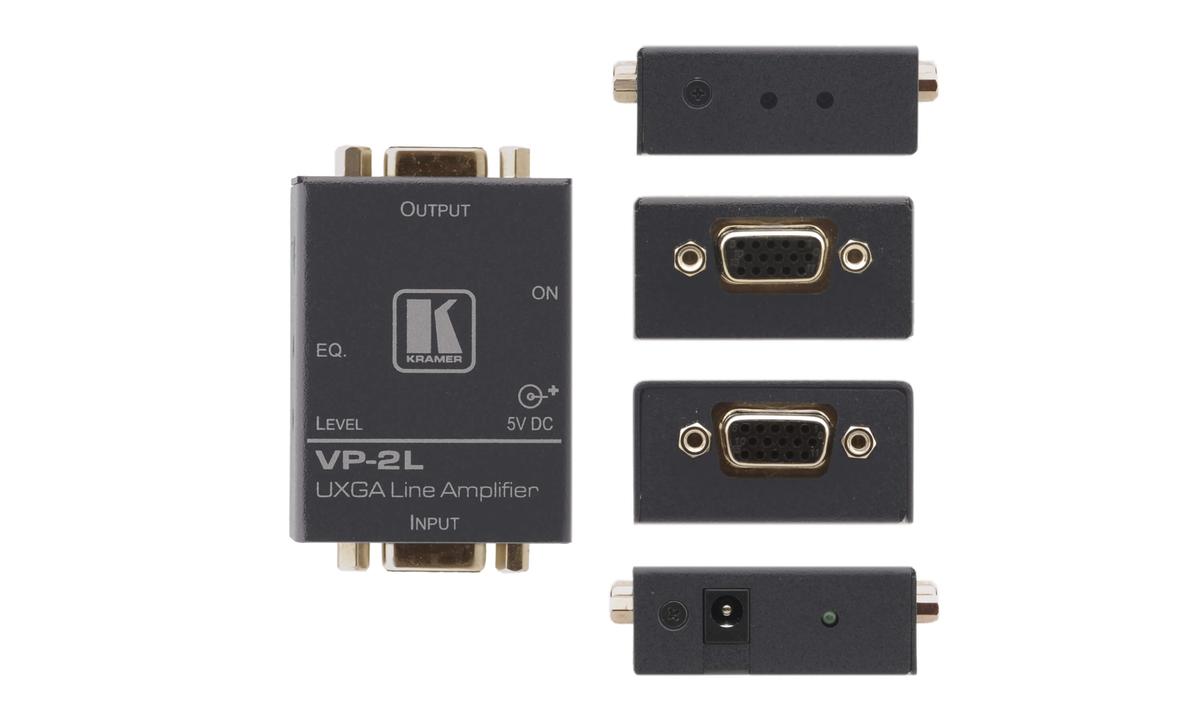

Kramer AV VP-2L
1:1 XGA Line Amplifier

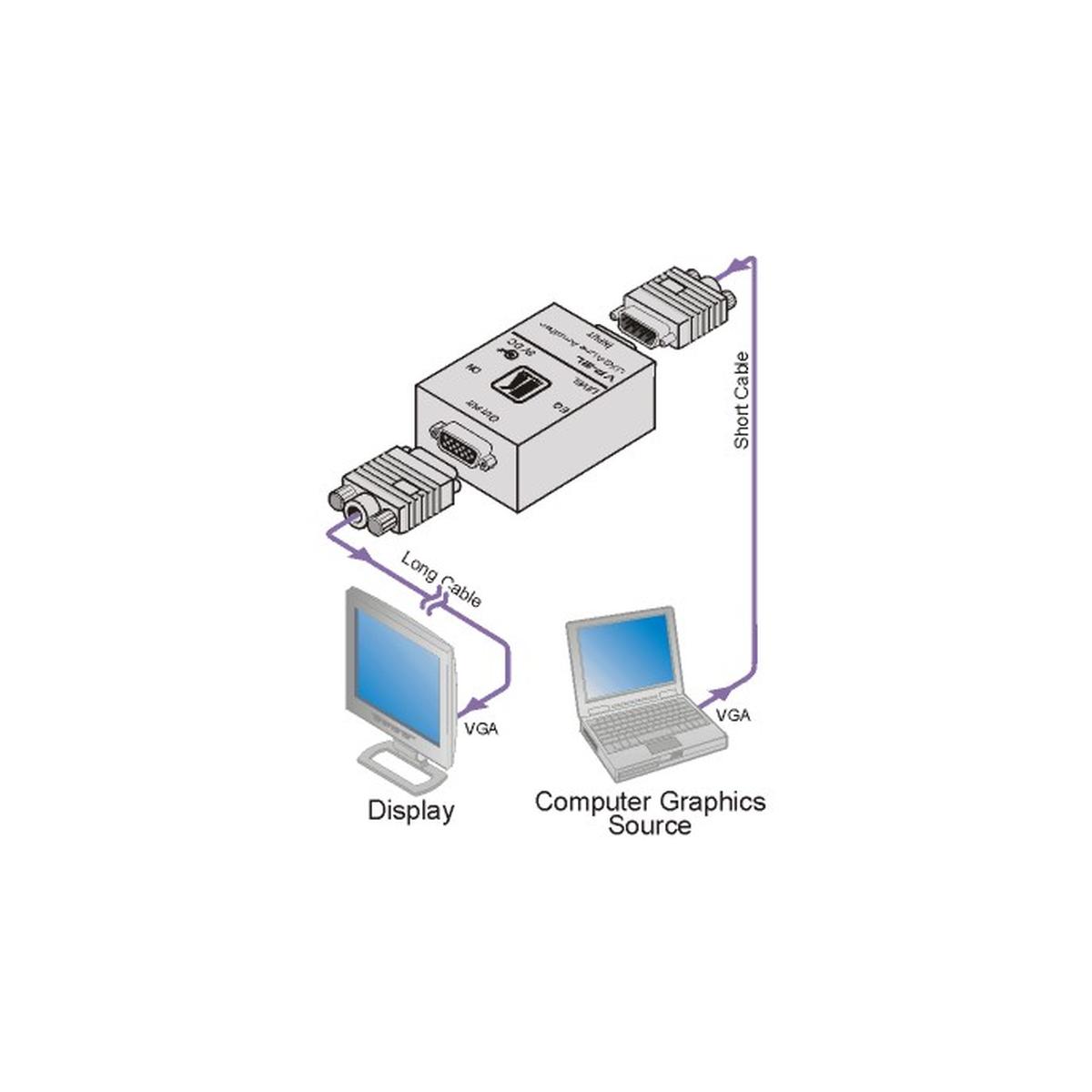

 application diagram.jpg)
- Resolution: up to WUXGA
- Input: 1 UXGA on a 15-pin HD (F) connector
- Output: 1 UXGA on a 15-pin HD (F) connector
- Max. Output Level: 1.5Vpp
-Timothy J.
Description
The VP-2L from Kramer is a 1x1 high-performance line amplifier for computer graphics video signals with resolution up to an exceeding UXGA. This line amplifier works by providing controls to compensate for signal losses which are inherent in extended range cable runs. Primarily found in conference room presentations and advertising applications, where there is a need for long cables being ran from a computer graphics source to a display such as a flat panel TV or touchscreen.
The VP-2L has Level (gain) and EQ (peaking) controls, and an ID Bit Control switch. The front panel has a LED power indicator to show when the devices is active. This device has a very nice space saving compact size so as to not create a huge footprint in racks, is HDTV compatible, comes with a 5V DC power supply, and is backed by Kramer's 7 year warranty.
Specifications
- Level & EQ Controls
- Controls: Level: 7.4dB to +4dB, EQ.: 0 to +26.4dB
- ID Bit Control
- Coupling: DC
- Power Consumption: 5V DC, 307mA
- Included Accessories: Power Supply
- Warranty: 7 Years
