Kramer AV VP-428H2
3x1 Multi-Format Auto Switcher/Scaler - 4K60 with HDMI, VGA, DP
Manufacturer SKU: 72-00003790
Satisfaction Guaranteed!
MSRP: $1,320.00
Our Price:
$1,056.00
Top VP-428H2 Specifications
- Warranty: 7 years
- Inputs: 1 DP on a Display Port connector, 1 HDMI on a female HDMI connector, 1 PC on a 15-pin HD connector, 1 Stereo Analog Unbalanced Audio on a 3.5mm mini-jack, 1 IR on a 3.5mm mini-jack
- Outputs: HDBaseT on an RJ-45 port, 1 IR on a 3.5mm mini-jack
- Ports: 1 Ethernet on an RJ-45 female connector for port tunneling, 1 USB on a female USB-A connector, 1 DATA RS-232 on a 3-pin terminal block for serial link extension, 1 CTRL RS-232 on a 3-pin terminal block for device control
"Very nice folks to work with. Quick and good information"
-Jeff A.
-Jeff A.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

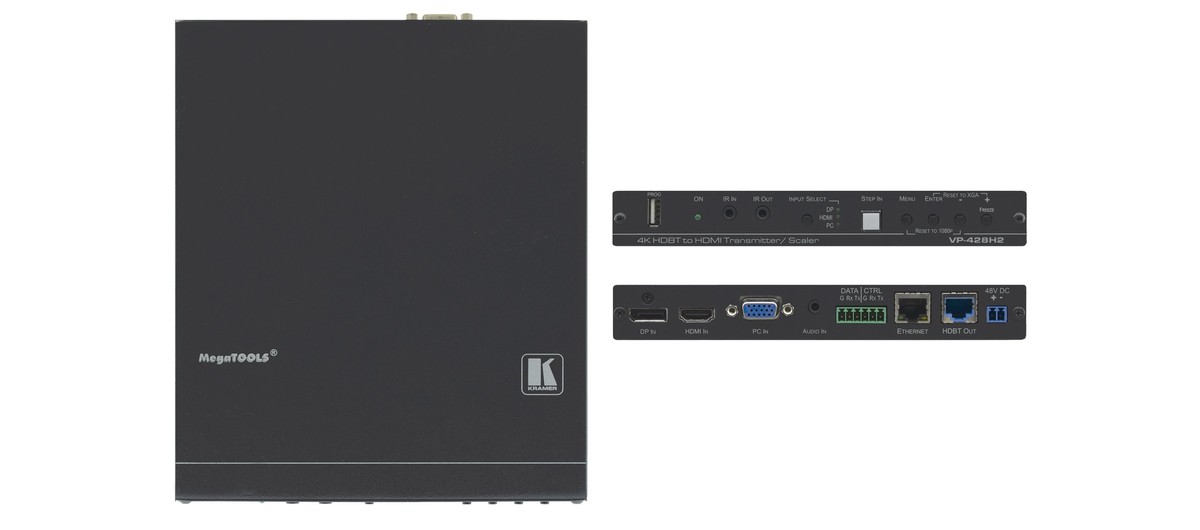

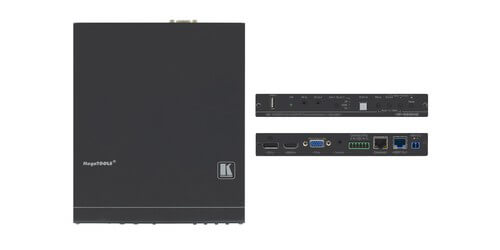

Kramer's VP-428H2, 3x1 multi-format auto-switcher with scaling technology is a compact device that provides users with HDMI, DisplayPort, and VGA inputs to a single HDBaseT output, to allow for long-range source switching and scaling.
Key Features:
- HDMI, DP, VGA Inputs
- HDBaseT Tunneling of Ethernet, RS-232 and IR signals, and PoE
- Supports up to 4K@60 4:4:4 on the HDMI and DP inputs
- Supports up to 4K@60 4:2:0 on the HDBaseT output
- Upscales and downscales to/from all resolutions
- MegaTOOLS®: Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
- Audio: U/E
Specifications
- Power Source: 48V DC, 410mA
- Power Consumption: 48V DC, 1.36A
- Included Accessories: Power supply
- Product Dimension (W x D x H): 7.38" x 4.53" x 1.00"
- Product Weight: 2 lbs
- Shipping Dimension (W x D x H): 3.82" x 8.35" x 2.83"
- Shipping Weight: 3.2 lbs
