Kramer AV VP-771
9x4 Presentation Switcher/Scaler w/ PiP, Amp, 3G-SDI, & DGKat Out
- Video inputs: 2 HDMI, 2 VGA, 1 DisplayPort, 2 Component, 1 3G HD-SDI, and 1 composite
- Video outputs: 1 HDMI, 1 VGA, 1 twisted pair, 3G HD-SDI (simultaneous)
- DGKat distance: Up to 230' for 1080P using shielded Cat6
- Audio inputs: 1 microphone, 1 S/PDIF
-Patrick S.
Description

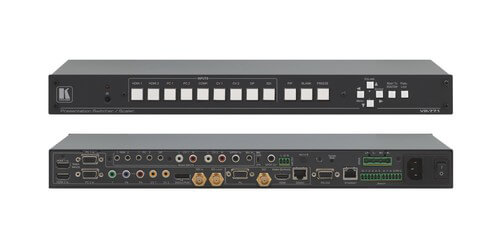

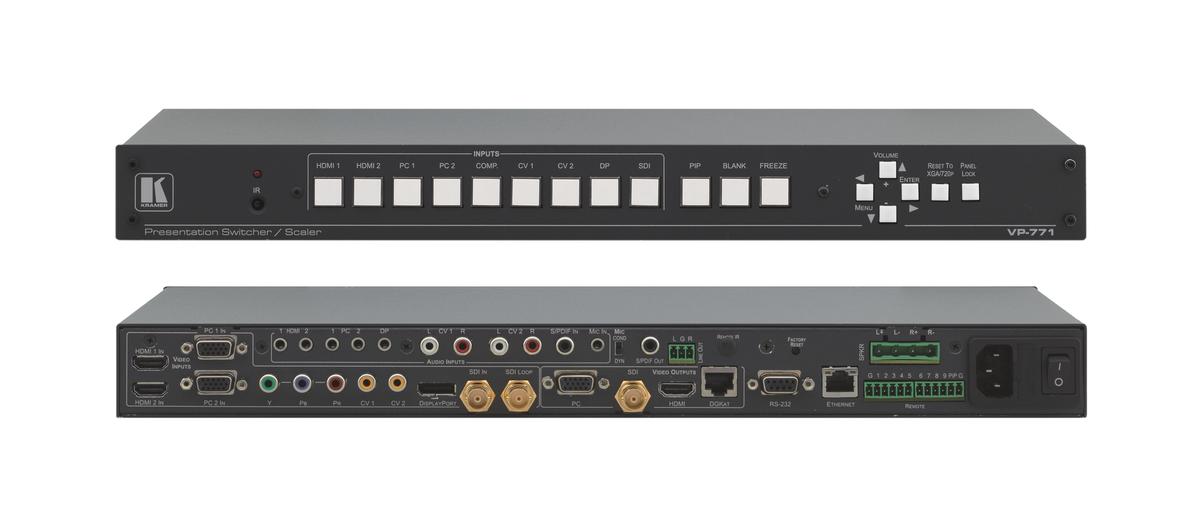

The Kramer VP-771 is a 9 input and 4 output multi-format presentation switcher with scaled outputs. The switcher features 2 HDMI, 2 VGA, 1 DisplayPort, 2 Component, 1 3G HD-SDI, and 1 composite input connections. The outputs are simultaneous 1 HDMI, 1 VGA, 1 3G HD-SDI, and 1 Cat5e/6 twisted pair that can be scaled up to 2K. The ProScale integrated scaler also offers high quality video processing for high grade de-interlacing, noise reduction, and 3D comb filtering. Other video adjustments are color, hue, sharpness, contrast, and brightness and gamma that are set individually for each input.
The VP-771 features glitch free fast switching with a smooth fade to black switch that is pleasant on the eyes. The VP-771 offers advanced windowing such as PiP, PaP, and split screen. The unit can be controlled via the front panel buttons, RS-232, Ethernet, the included IR remote, and using the remote with the on screen menu.
The VP-771 has your audio needs covered as well, your audio inputs consist of 1 S/PDIF. Your audio outputs are 1 stereo and 1 S/PDIF and embedded and de-embedded HDMI audio. SDI channeling allows users to select one active signal and three bypassed signals from eight embedded stereo audio channels. A microphone input as well as a 2x10W integrated amplifier round out the long list of audio features.
The VP-771 is full of features and easy to set up and install, it covers your digital and analog, scaling, switching, and even your amplification and broadcast needs.
Specifications
- Audio outputs: 1 stereo, 1 S/PDIF
- Scaler output resolutions: Up to 2K
- SDI channeling
- Video controls: PiP, PaP, split screen, zoom, aspect ratio choices, text overlay
- 2x10W amplifier
- Mass notification system
- Ultra fast and smooth fade to black switching
- Audio inputs feature level adjustments
- Audio delay adjustment
- Zoom up to 1600%
- Control: Front panel buttons, RS-232, Ethernet, IR, OSD
- EDID management
- Dimensions: 19" (W), 9.3" (D) 1U (H) (includes rack ears)
- Weight: 6.6lbs
- Warranty: 7 years
- Includes: Rack ears, remote, power cord
