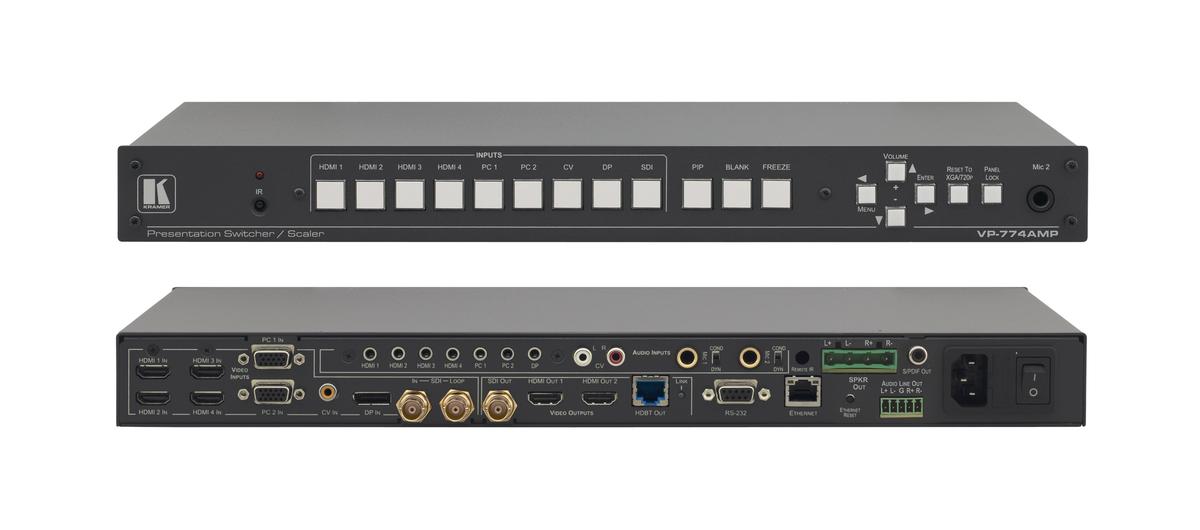

Kramer AV VP-774A
9x4 Presentation Switch, 2K Scaler: PiP, Amp, 3G-SDI, HDBaseT Out
- Video inputs: 4 HDMI, 2 VGA, 1 DisplayPort, 1 3G HD-SDI, and 1 composite
- Video outputs: 2 HDMI, 1 HDBaseT (simultaneous), 1 3G HD-SDI
- HDBaseT distance: Up to 590' depending on cable and receiver
- SDI support: SDI (SMPTE 259M), HD SDI (SMPTE 292M) and 3G HD SDI (SMPTE 424M)
Description

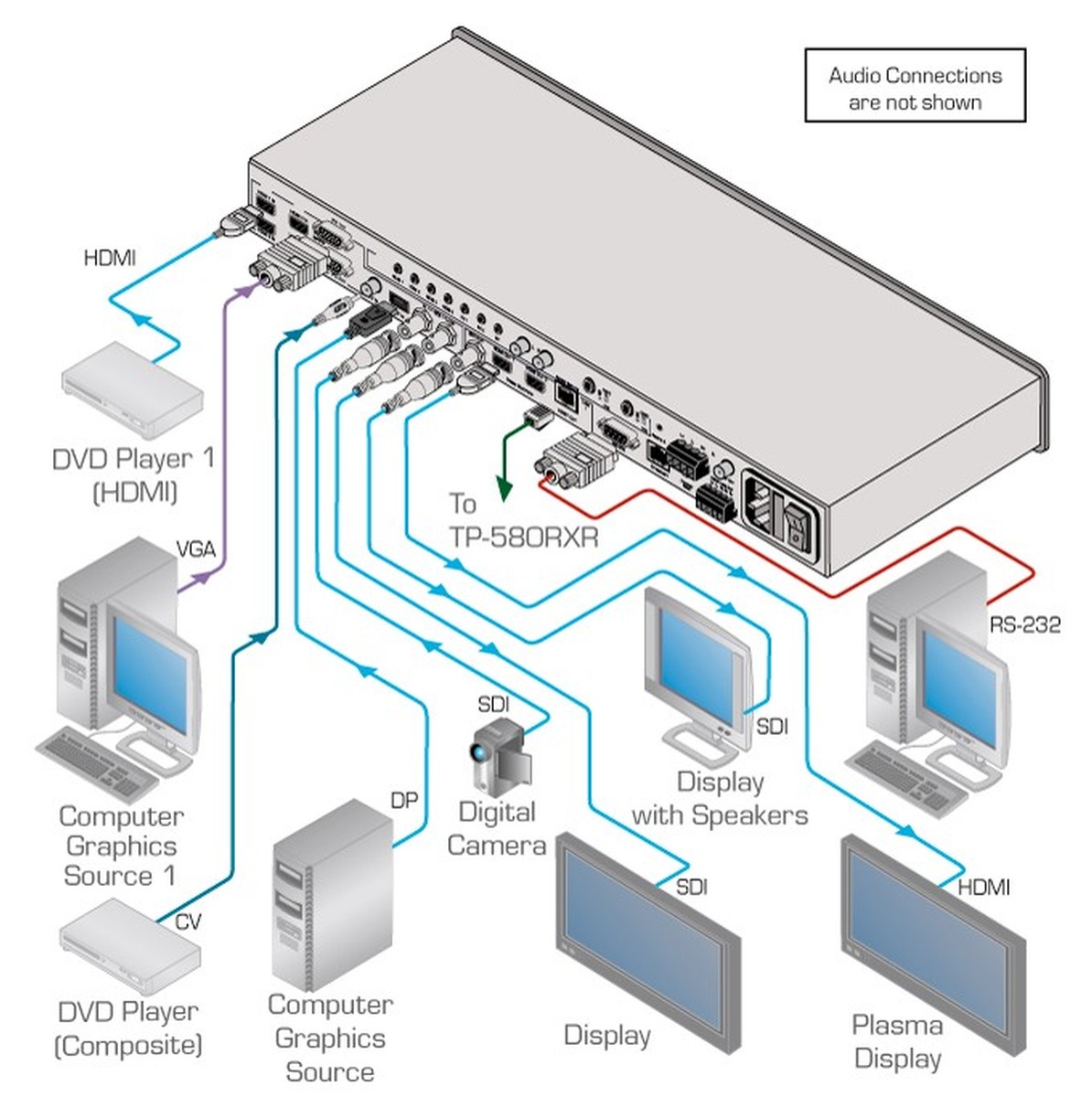

The Kramer VP-774A is a 9 input and 4 output multi-format presentation switcher with scaled outputs. The switcher features 4 HDMI, 2 VGA, 1 DisplayPort, 1 3G HD-SDI, and 1 composite input connections. The outputs are simultaneous 2 HDMI and 1 HDBaseT, as well as 1 3G HD-SDI that can be scaled up to 2K. The ProScale integrated scaler also offers high quality video processing for high grade de-interlacing, noise reduction, and 3D comb filtering. Other video adjustments are color, hue, sharpness, contrast, and brightness and gamma that are set individually for each input.
The VP-774A features glitch free fast switching with a smooth fade to black switch that is pleasant on the eyes. The VP-774A offers advanced windowing such as PiP, PaP, and split screen. The unit can be controlled via the front panel buttons, RS-232, Ethernet, integrated web browser, the included IR remote, and using the remote with the on screen menu.
The VP-774A has your audio needs covered as well, your audio inputs consist of left and right audio on RCA jacks. Your audio outputs are 1 stereo and 1 S/PDIF and embedded and de-embedded HDMI audio. 2 microphone inputs with phantom power are integrated as well as a 2x10W integrated amplifier round out the long list of audio features.
The VP-774A is full of features and easy to set up and install, it covers your digital and analog, scaling, converting, switching, and even your broadcast and amplification needs.
Specifications
- Audio inputs: 2 microphone, 1 L/R audio
- Audio outputs: 1 stereo, 1 S/PDIF
- 2x10W integrated amplifier with speaker outputs
- Scaler output resolutions: Up to 2K
- Video controls: PiP, PaP, split screen, zoom, aspect ratio choices, text overlay
- HDMI Deep Color support
- Mass notification system
- Ultra fast and smooth fade to black switching
- Audio inputs feature level adjustments
- Audio delay adjustment
- Bi-directional RS-232 port tunneling
- Zoom up to 1600%
- Control: Front panel buttons, RS-232, Ethernet, built in web browser, IR, OSD
- EDID management
- Dimensions: 19" (W), 9.3" (D) 1U (H) (includes rack ears)
- Weight: 6.6lbs
- Warranty: 7 years
- Includes: Rack ears, remote, power cord
