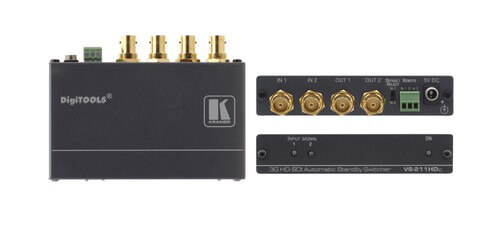

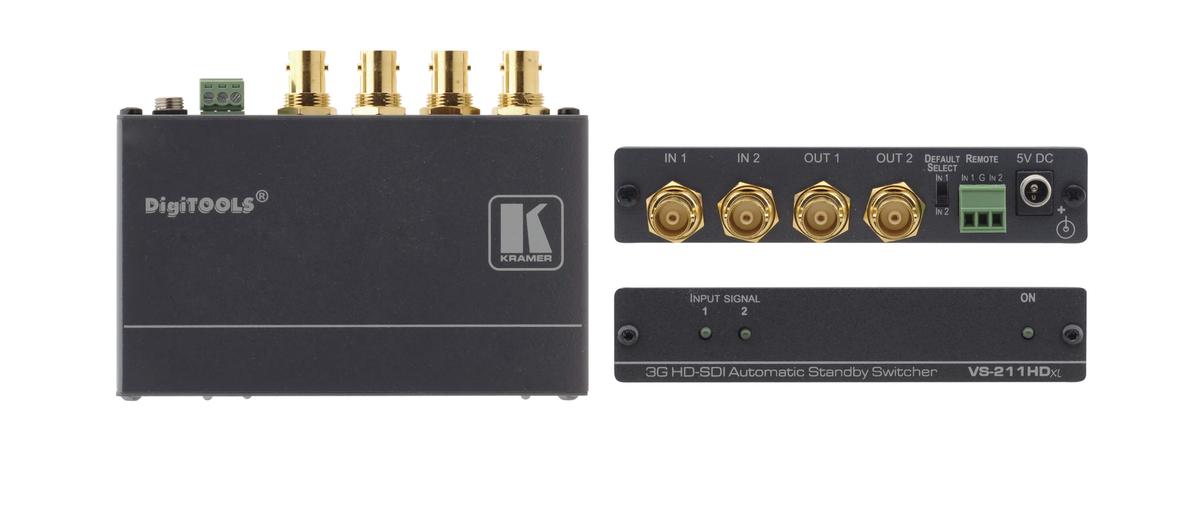

Kramer AV VS-211HDxl
2x1:2 3G HD-SDI Automatic Standby Switcher - HDTV Compatible

Description

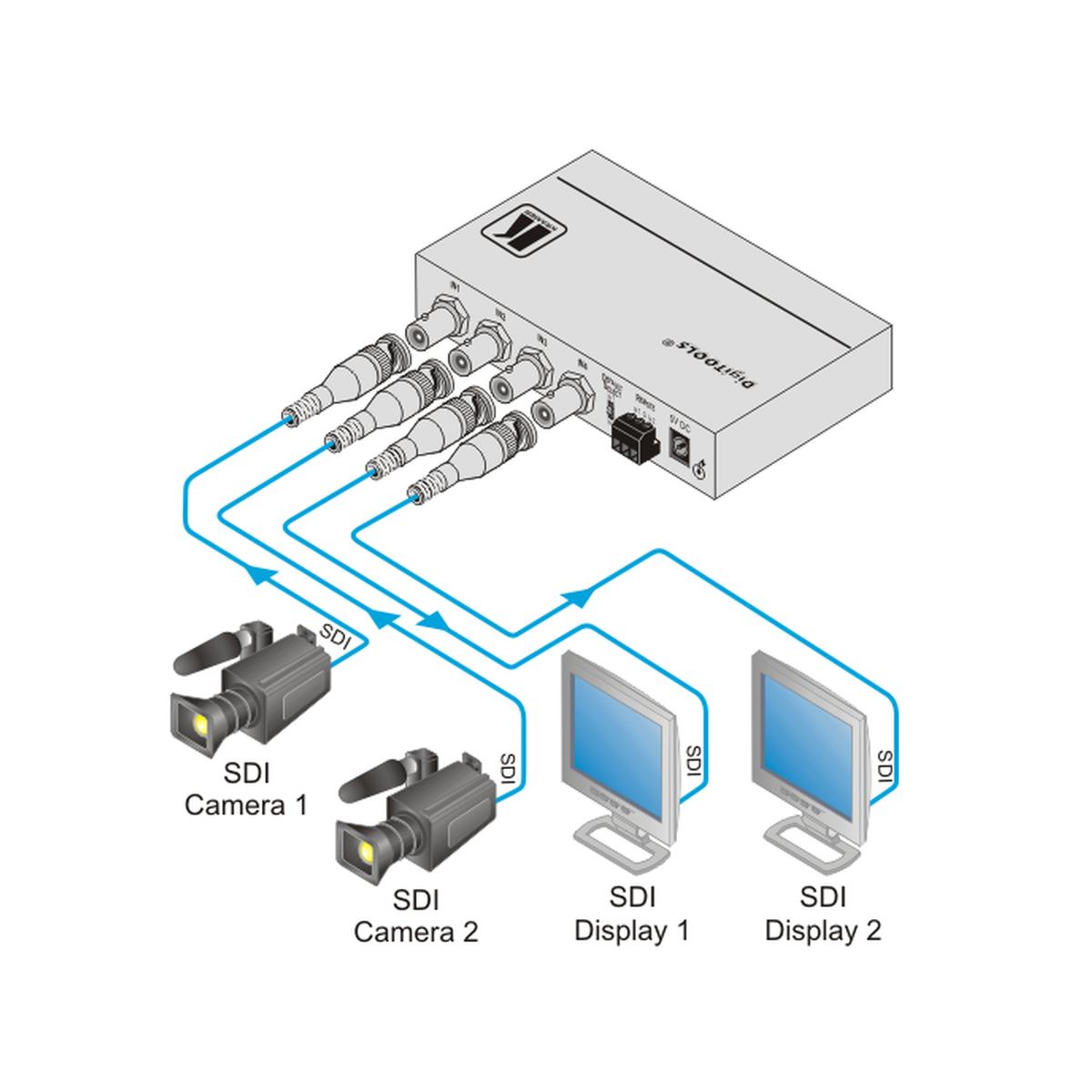

The VS-211HDxl from Kramer is a high-quality automatic switcher for 3G HD-SDI video signals. This auto swticher uses a multi-standard option, meaning it can handle SDI, HD-SDI, and 3G HD-SDI. When configured as a standby switcher, it switches to the secondary input when the primary input is lost, which makes this a great product for use as a backup switcher in broadcasting as well as in post-production studios. This device is HDTV compatible, has a maximum data rate of 3Gbps, is controled through contact closure or by automatic switching. The Automatic Standby Switching feature on the VS-211HDxl makes it so switching from the secondary input to the primary input is done automatically when the primary signal is detected. There is also a default input switch for selecting the default SDI master source signal, and through contact closure remote control for forced operation. With the compact size of this automatic switcher 3 of these units can be rack mounted side-by-side in a 1U rack space using the optional RK-3T from Kramer. This product comes with a power supply and has a 7 year warranty from Kramer.

Specifications

• Multi-Standard Operations: SDI, HD-SDI, & 3G HD-SDI
• Max. Output Level: 800mVpp/75 Ohms
• Control: Contact Closure or automatic switching
• Primary Input: Selectable
• Active Input LED Indicators
• Coupling: AC
• Power Consumption: 5V DC
• Included Accessories: Power Supply & Mounting Bracket
• Warranty: 7 Years

Downloads

• Kramer AV VS-211HDxl Specifications (PDF)
• Kramer AV VS-211HDxl Manual (PDF)
