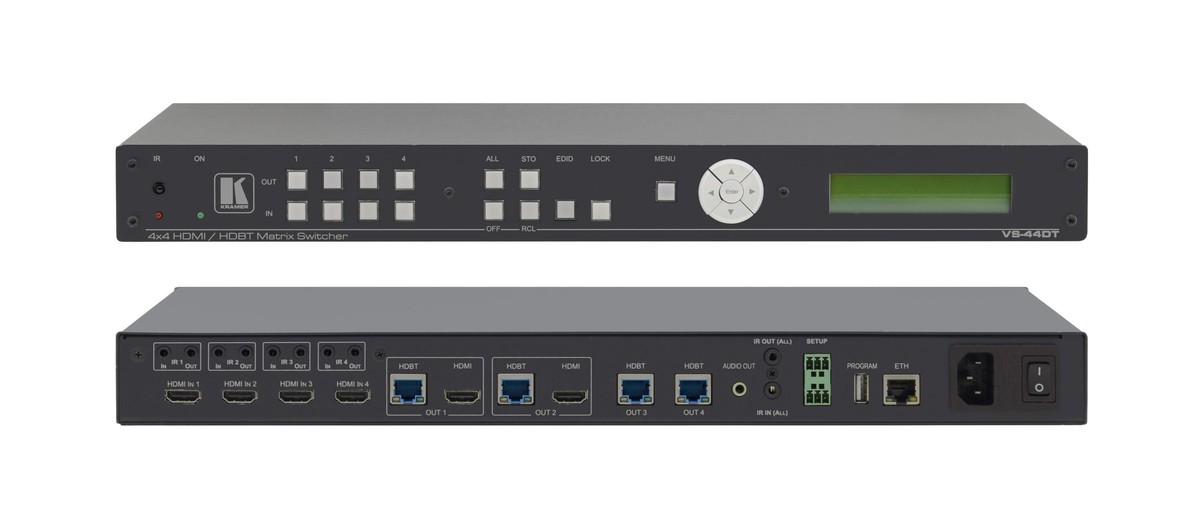

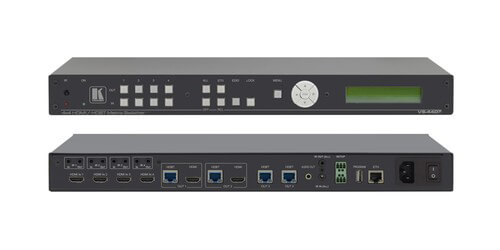

Kramer AV VS-44DT
4x4 4K60 4:2:0 HDMI, HDBaseT Extended Reach Matrix Switcher - PoE
- Inputs: 4 HDMI, 5 IR on 3.5mm mini jack connectors
- Outputs: 2 HDMI, 4 HDBaseT on RJ-45, 5 IR on 3.5mm mini jack, 1 unbalanced stereo audio
- Supported Resolutions: Up to 4K/60 4:2:0 and WUXGA
- Max Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
-Timothy J.
Description

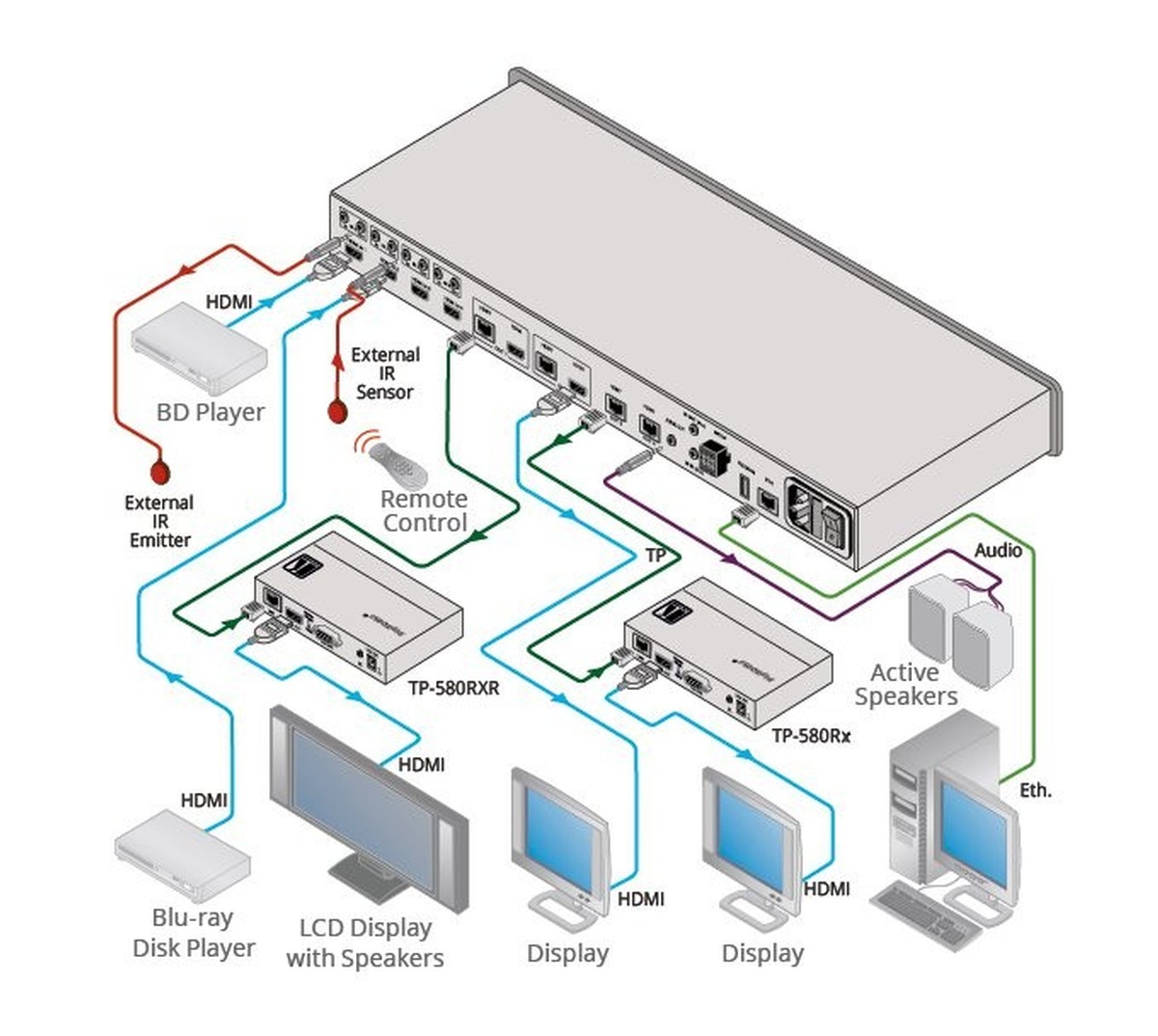

The Kramer VS-44DT is a HDMI/HDBaseT high-performance Matrix Switcher with HDMI and HDBaseT output transmitters that provide video, audio, Ethernet, RS-232 and IR signal extension. The matrix switcher supports resolutions up to 4K60 4:2:0 and WUXGA at 10.2Gbps and accepts up to four HDMI and four IR inputs as well as Ethernet and RS-232 for network and control. The inputs have the ability to be routed to any or all of the four HDBaseT outputs, the first two of which also have simultaneous HDMI outputs. Another nice feature designed into this unit, is its Extended Reach capabilities which allows it to connect to compatible HDBaseT receives such as the TP-780RXR, TP580RXR, and TP-588D (not included). The HDBaseT extension ranges can achieve up to 430' at normal mode (2K), up to 328' at normal mode (4K) and up to 590' ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables. Signal extension capabilities support video, audio, Ethernet, RS-232 and IR signals.
Additional Features of the VS-44DT include:
- PoE Support: PoE provider to HDBaseT receivers such as the TP–588D and TP–780RXR.
- HDTV Compatible.
- HDCP Compliant.
- EDID Capture: Copies and stores the EDID from a display device.
- HDMI Support: 3D, Deep Color, x.v.Color, Lip Sync, Dolby TrueHD, Dolby Digital Plus, DTS–HD and 7.1 multi-channel audio.
- Non-Volatile Memory: Stores and recalls preset matrix configurations.
- Automatic Output Shutdown: If no input signal is detected after a configurable idle period.
- Kramer Protocol 3000 Support.
- Lock Button: Prevents unwanted tampering with the settings.
- Flexible Control Options: Embedded Web server, RS–232, IR remote (included).
- Worldwide Power Supply: 100–240V AC.
This high-quality matrix switcher with extended HDBaseT reach and 4K60 4:2:0 supported resolutions, comes with Rack "ears" for mounting, an IR Blaster, IR Receiver RC-IR3 remote control transmitter, and is backed by a 7 year warranty from Kramer.
Specifications
- Ports: 1 Ethernet on an RJ 45 connector, 1 program on a USB connector, 1 RS 232 control on a 3 pin terminal block, 1 RS 232 data on a 3 pin terminal block
- HDMI Range: 49' @ 8bit resolution, 33' @ 12 bit resolution
- HDBaseT Range: Up to 430' at normal mode (2K), up to 328' at normal mode (4K) / up to 590' ultra mode (1080p @60Hz @24bpp) when using BCUNIKAT cables
- HDBaseT Extension: Includes Video, Audio, Ethernet, RS-232 and IR signals
- PoE Support: PoE provider to HDBaseT receivers such as the TP588D and TP780RXR
- HDTV Compatible
- HDCP Compliant
- EDID Capture: Copies and stores the EDID from a display device
- HDMI Support: 3D, Deep Color, x.v.Color, Lip Sync, Dolby TrueHD, Dolby Digital Plus, DTSHD and 7.1 multi-channel audio
- Non-Volatile Memory: Stores and recalls preset matrix configurations
- Automatic Output Shutdown: If no input signal is detected after a configurable idle period
- Kramer Protocol 3000 Support
- Lock Button: Prevents unwanted tampering with the settings
- Flexible Control Options: Embedded Web server, RS232, IR remote (included)
- Worldwide Power Supply: 100240V AC
- Power Consumption: 100 - 240V AC, 50/60Hz, 60VA
- Enclosure Type: Aluminum Chassis
- Safety Reulatory Compliance: CE
- Environmental Regulator Compliance: Complies with appropriate requirements of RoHs and WEEE
- Included Accessories: Rack "ears", IR blaster, IR receiver RC IR3 remote control transmitter
- Dimensions: 19" x 9.34 x 1U (W, D, H)
- Weight: 7.3lbs
- Warranty: 7 Years
