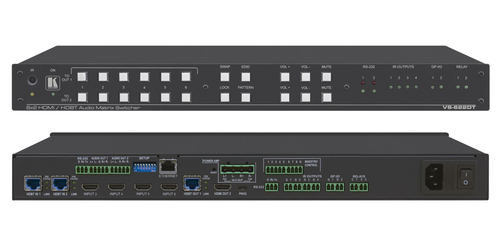

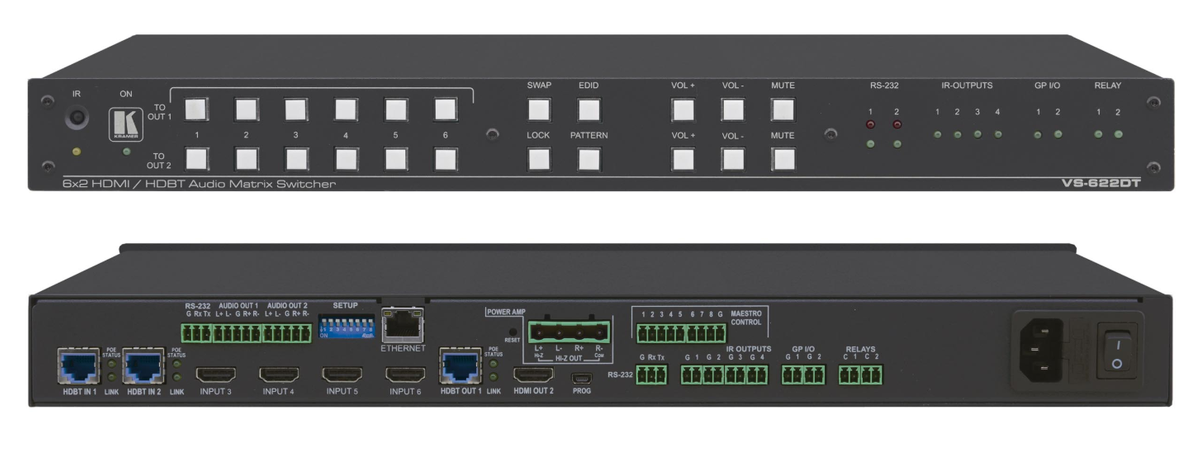

Kramer AV VS-622DT
Presentation System 6x2 4K60 4:2:0 HDMI/HDBaseT Matrix Switcher

Description

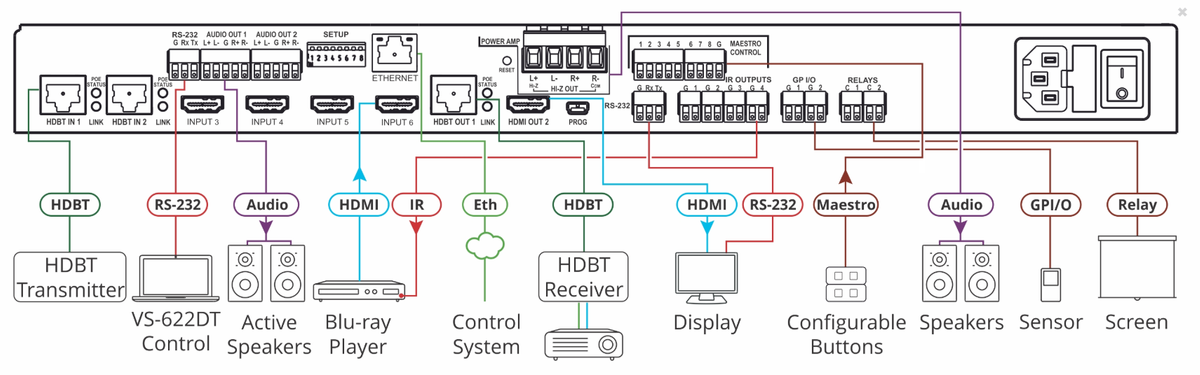

Kramer's VS-622DT is an all-in-one 4K@60Hz (4:2:0) presentation system featuring 6x2 HDMI/HDBaseT matrix switching, control gateway, PoE, power amplifier, and Maestro room automation. The unit re-clocks and equalizes signals and routes any input to the HDMI or the HDBaseT output or to both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0) and WUXGA.

Specifications

• 1 HDBT with PoE: On a female RJ45 connector
• 1 HDMI on a female HDMI connector
• 2 Stereo Balanced Audio on 5-pin terminal block connectors
• 1 Power Amplifier for stereo or 1 mono speaker on a 4-pin large terminal block
• Ports
• 1 Ethernet: On an RJ45 female connector
• 2 RS-232 on 3-pin terminal blocks
• 1 USB (PROG) on a mini-USB connector for firmware upgrade
• 4 IR on 2-pin terminal block connectors
• 2 GPI/O on 2-pin terminal block connectors
• 2 Relays on 2-pin terminal block connectors
• Video
• Max Resolution: Up to 4K@60Hz UHD (4:2:0)
• Compliance: HDMI 1.4 and HDCP 1.4
• Included: Power cord
• Warranty 7 years limited

Downloads

• Kramer AV VS-622DT Specifications (PDF)
