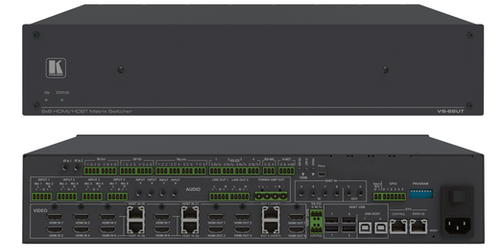

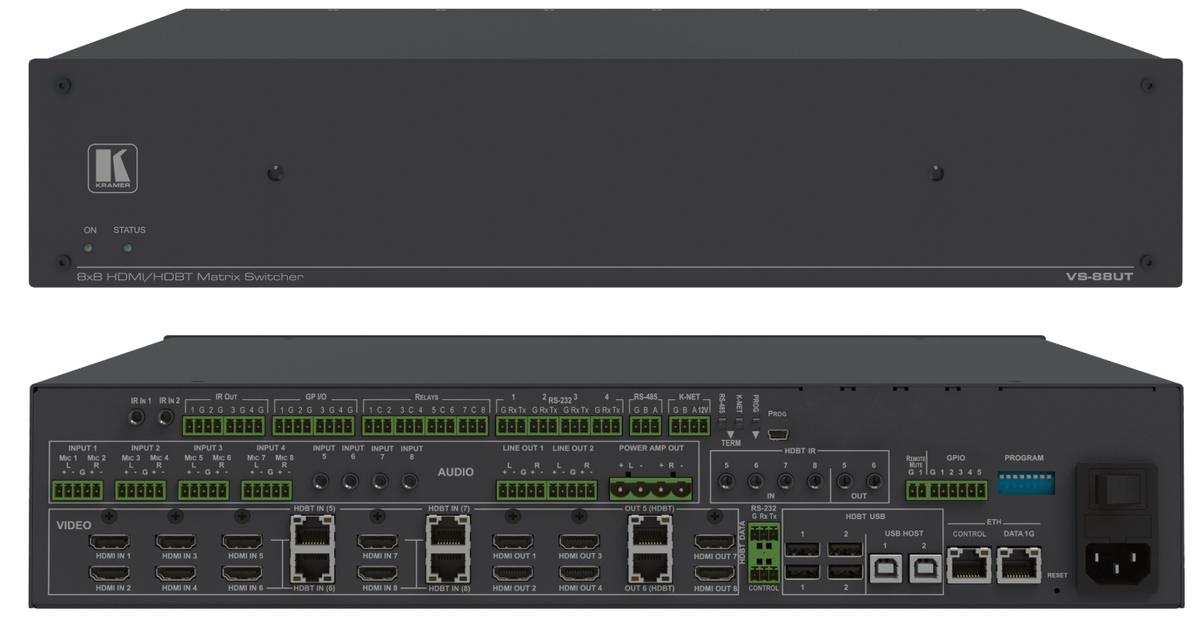

Kramer AV VS-88UT
Presentation System, 8x8 4K60 4:2:0 HDMI/HDBaseT 2.0 Matrix Switch
- Inputs
- 4 HDMI: On female HDMI connectors
- 4HDBaseT / 4HDMI (Selectable) on RJ 45/female HDMI connectors
- 4 Unbalanced Stereo Audio on 3.5mm mini-jacks
-Timothy J.
Description
Kramer's VS-88UT presentation system provides 4K@60Hz (4:2:0) audio-video signal, featuring integrated range extension and a master control system, as well as PoE on HDBaseT output ports. The VS-88UT switches video, embeds audio, and outputs signal to an HDMI and an HDBaseT 2.0 with USB extension. The VS-88UT includes an Ethernet gateway to control and manage remote input/output ports.
The VS-88UT's supports balanced and unbalanced stereo audio and de-embedded audio sources that output to embedded audio, balanced stereo audio, and a power-amplified audio output. This Kramer presentation system includes a master room controller that operates over Ethernet (LAN) with control ports. It includes a KNET connector interface that enables access to the master controller from auxiliary room controllers and provides power to auxiliary room controllers via the KNET connectors.

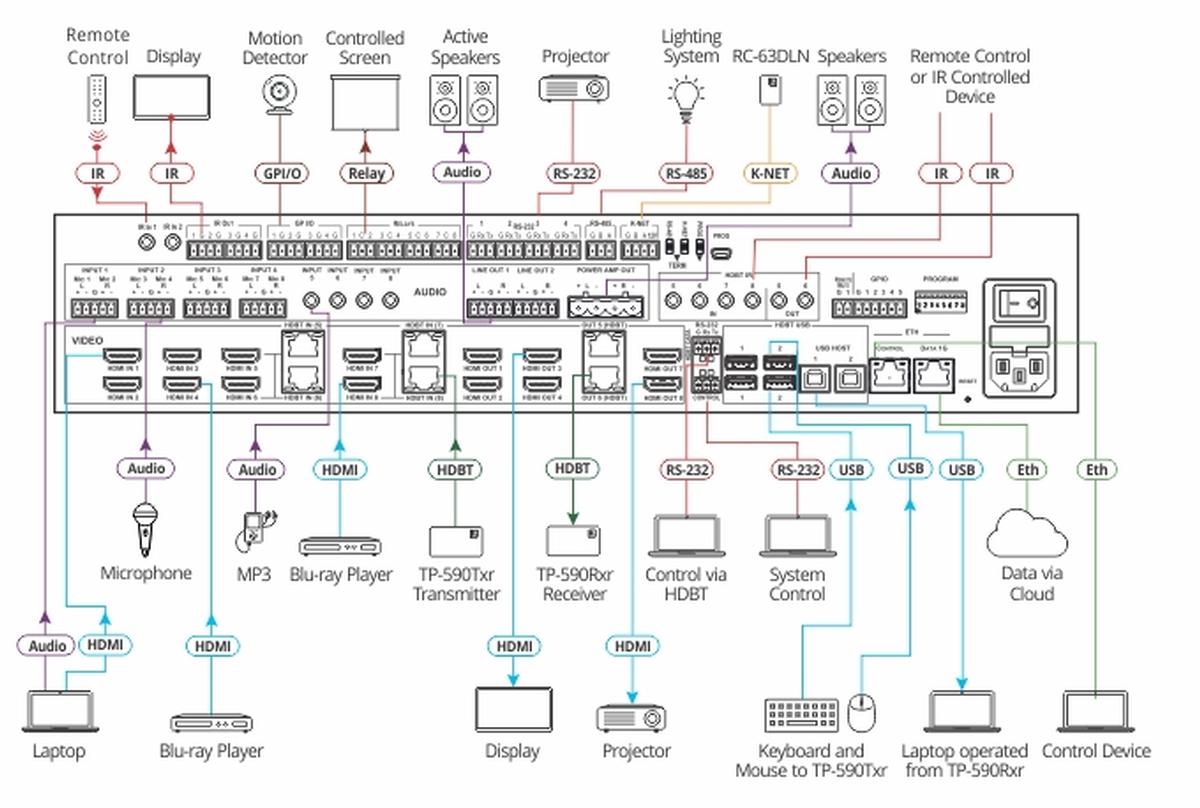

This Kramer presentation system is ideal for the following applications:
- Classrooms
- Lecture rooms
- Theaters
- Education applications
- Projection systems in conference rooms, boardrooms, hotels, and churches
Specifications
- 4 Balanced Stereo Audio/8 Balanced Mic (Selectable) on 5-pin/3-pin terminal block connectors
- 4 IR on 3.5mm mini-jacks for IR tunneling via HDBaseT
- 2 IR (room controller) on 3.5mm mini jacks
- Outputs
- 6 HDMI on female HDMI connectors
- 2 HDBaseT on female RJ 45 connectors
- 2 Balanced Stereo Audio on 5-pin terminal block connectors
- 1 Stereo Speaker Output on a 4-pin terminal block, 2x50W into 4 or 2x30W into 4
- 2 IR on 3.5mm mini-jacks for IR tunneling via HDBaseT
- Ports
- 1 RS-232 on a 3-pin terminal block for Serial Tunneling via HDBaseT
- 1 RS-232 on a 3-pin terminal block for Device Control
- 4 (2x2) USB on female USB A connectors for USB Link Extension
- 2 USB on female USB B connectors for USB Link Extension
- 1 Ethernet Control on an RJ 45 female connector for tunneling data via HDBT ports
- 1 Ethernet 1G on an RJ 45 female connector for tunneling data via HDBT ports
- 1 100BaseT Ethernet on an RJ 45 female connector for Device Control and LAN Extension
- 1 K-NET 5mm mini-jack (room controller) on a 4 pin terminal block connector for learning
- 1 RS-485 (room controller) on a 3-pin terminal block connector
- 4 RS-232 Serial (room controller) on 3-pin terminal blocks
- 8 Relays (room controller) on 2-pin terminal block connectors (36V AC or DC, 2A, 60VAC maximum on non-inductive load)
- 4 GPI/O (room controller) on 2 pin terminal blocks
- Extension Line
- Up to 330 ft: At 4K@60Hz (4:2:0)
- Up to 430 ft: At Full HD (1080p @60Hz 36bpp)
- Up to 590 ft: HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)
- Compliance: HDBaseT 2.0
- Accessories
- Included: Power cord
- Product Dimensions
- 19" x 7.24 x 2U W, D, H
- 19" x 12.05 x 2U W, D, H
- Product Weight
- 8.6 lbs approx.
- 8.6 lbs approx.
- Shipping Dimensions
- 0.71" x 18.70" x 7.24" W, D, H
- 20.71" x 18.70" x 7.24" W, D, H
- Shipping Weight
- 11.8 lbs approx.
- 11.8 lbs approx.
- Warranty
- 7 years limited
