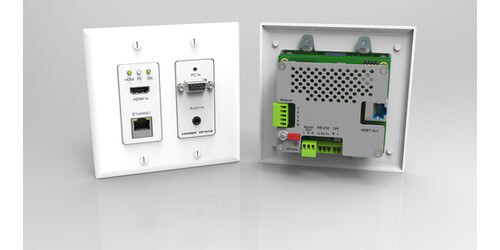

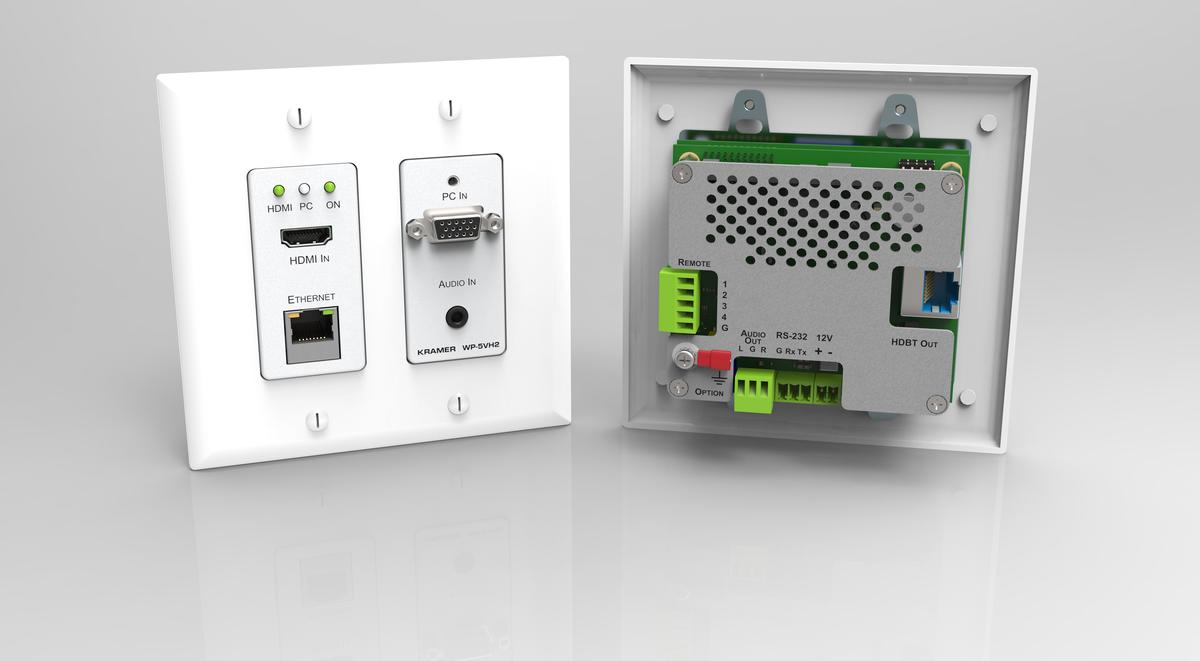

Kramer AV WP-20(W)
HDMI & VGA Auto Switching 4K HDBaseT White Wall Plate w/ Ethernet

Description

The Kramer WP-20(W) is a 4K auto switching white wall plate that can send your video, audio, Ethernet, and control over a single Ethernet cable.  Auto switching means that it will auto detect and automatically switch to the last plugged in video connection.  The range depends on the type of receiver and cable you are using, as well as the resolution you are sending.  1080P resolution can be sent up to 590', 2K can be sent up to 430', and 4K can be sent up to 328' away.  If VGA and audio is plugged in it will send the audio embedded over the Ethernet cable, your HDMI audio is always embedded as well.

The wall plate will also send your RS-232 and even your remote commands for switching and volume control.  The Kramer WP-20 is an ideal solution to send your 4K video over a long distance with auto switching and embedded audio.

Specifications

• HDMI Support: Deep Color, x.v.Color and 3D
• Color: White
• Size: Dual gang
• Range: Up to 430' at normal mode (2K), up to 330' at normal mode (4K), up to 590' ultra mode (1080p @60Hz @24bpp) when using BC HDKat6a cables
• HDCP compliant
• Lockable EDID
• Auto switching
• Remote switching
• Optional Power: PoE (Power over Ethernet)
• Includes power adapter

Downloads

• Kramer AV WP-20(W) Specifications (PDF)
• Kramer AV WP-20(W) Manual (PDF)
