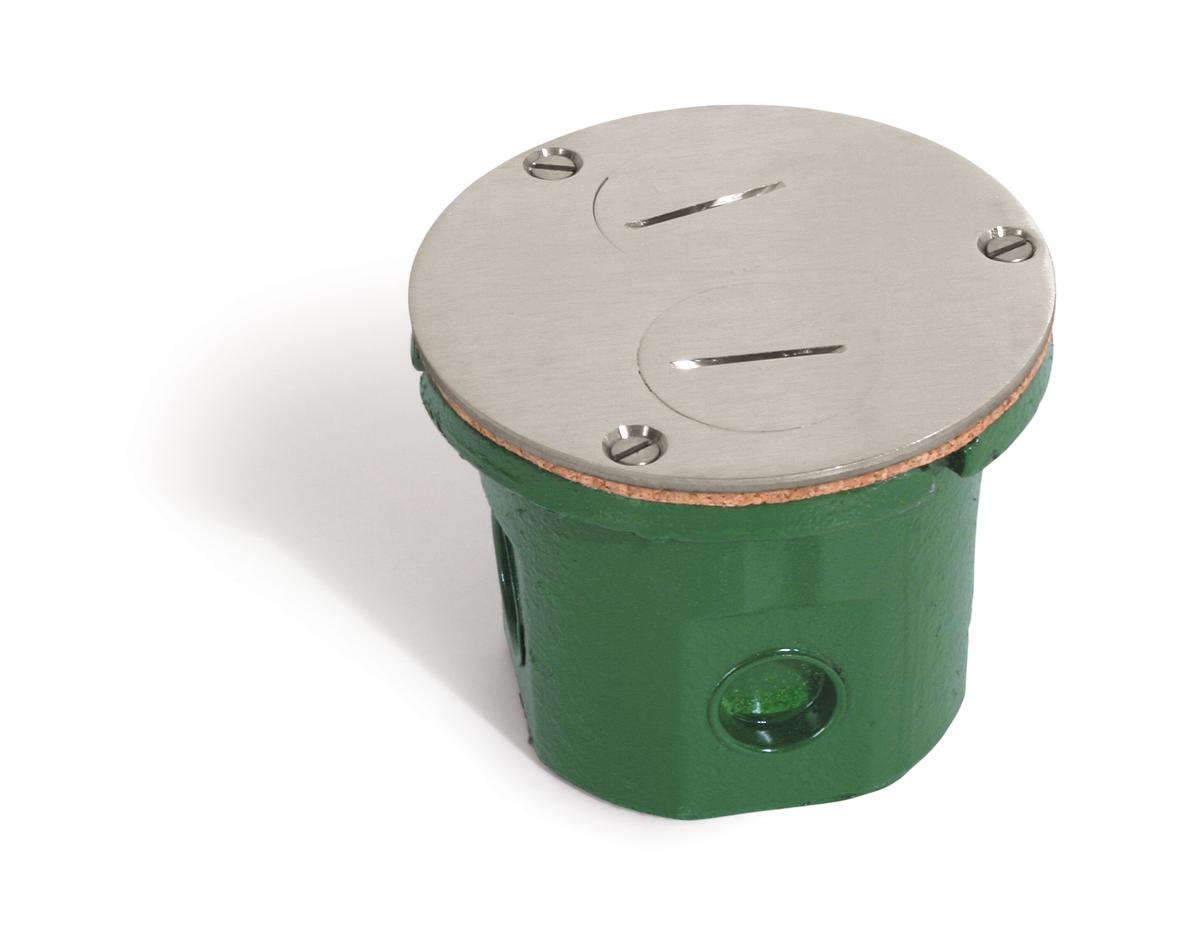

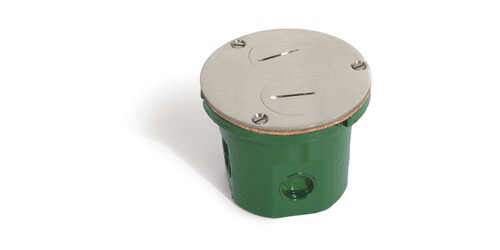

Lew Electric 812-DFB-NS
4" Round Cast Iron Floor Box with 15A TR Duplex Power - Nickel

Description

The Lew Electric 812-DFB-NS is a 4" round floor box with nickel silver top that includes 1 duplex 15 amp tamper resistant outlet, the top features 2 screw plugs to gain access to the power. The box is cast iron with a 14.5 cubic inch interior capacity, there are two 3/4" and two 1/2" conduit openings to bring your wire into the box. The box is UL and cUL listed, the outlet is UL listed. Screws are included to attach the top plate to the box. The box was designed for a wood floor but can be installed in a concrete floor, the box is not recommended for new construction concrete as the box is not adjustable and does not include a temporary cover.

The Lew Electric 812-DFB-NS is a heavy duty versatile floor box that provides convenient access to power.

Specifications

• Box is cUL listed 22.2 #18.1-04
• UL listed receptacle # E333616
• Conduit openings: two 3/4" and two 1/2"
• Cast iron box material
• Warranty: 6 months

Downloads

• Lew Electric 812-DFB-NS Manual (PDF)
