Lew Electric 812-DFB W/DFB-1
4" Round Cast Iron Floor Box w/ 2 Power & Flip Lid - Brass
- 4" round floor box
- Brass top with single flip lid
- Includes 1 duplex 15A tamper resistant outlet
- Box is UL listed # 514A, 489H
-Chad R.
Description

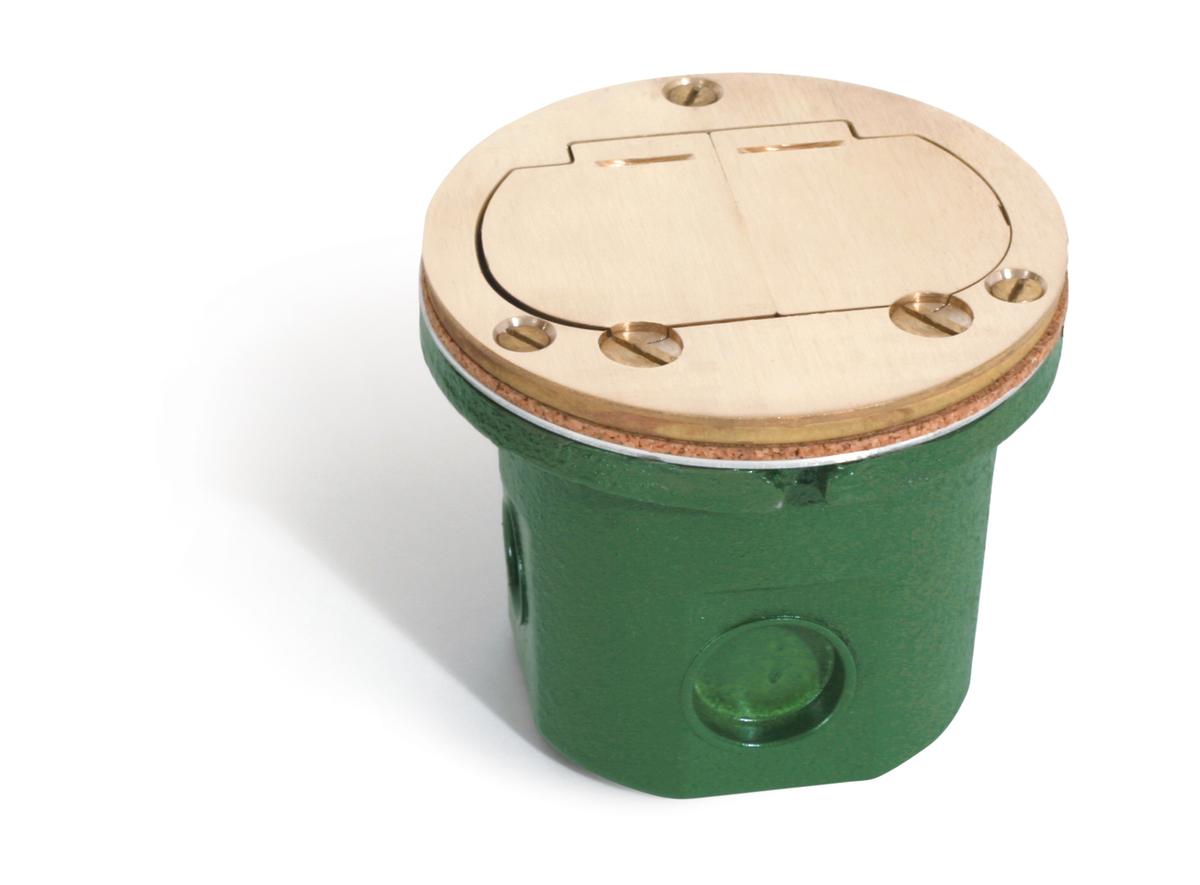

The Lew Electric 812-DFB W/DFB-1 is a 4" round floor box with brass top that includes 1 duplex 15 amp tamper resistant outlet, the top features a single flip lid to gain access to the power. The box is cast iron with a 14.5 cubic inch interior capacity, there are two 3/4" and two 1/2" conduit openings to bring your wire into the box. The box is UL and cUL listed, the outlet is UL listed. Screws are included to attach the top plate to the box. The box was designed for a wood floor but can be installed in a concrete floor, the box is not recommended for new construction concrete as the box is not adjustable and does not include a temporary cover.
The Lew Electric 812-DFB W/DFB-1 is a heavy duty versatile floor box that provides convenient access to power.
Specifications
- Box is cUL listed 22.2 #18.1-04
- UL listed receptacle # E333616
- Conduit openings: two 3/4" and two 1/2"
- Cast iron box material
- Warranty: 6 months
