Lew Electric RF10CKK
4" Raised Access Floor Box w/ Lid, 16 Keystone Openings

Description

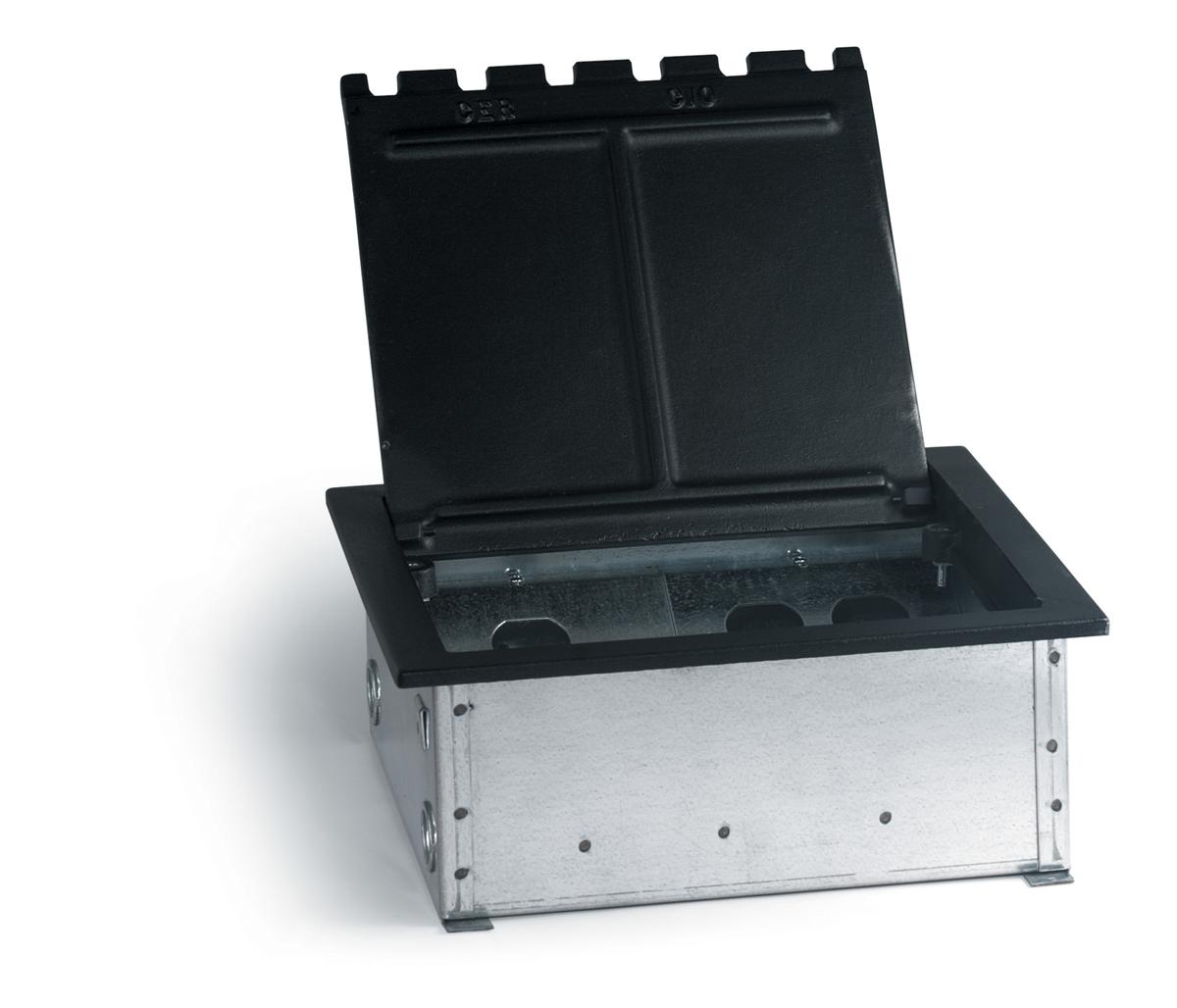

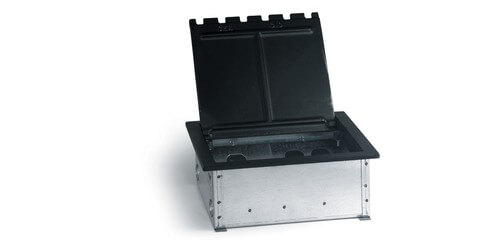

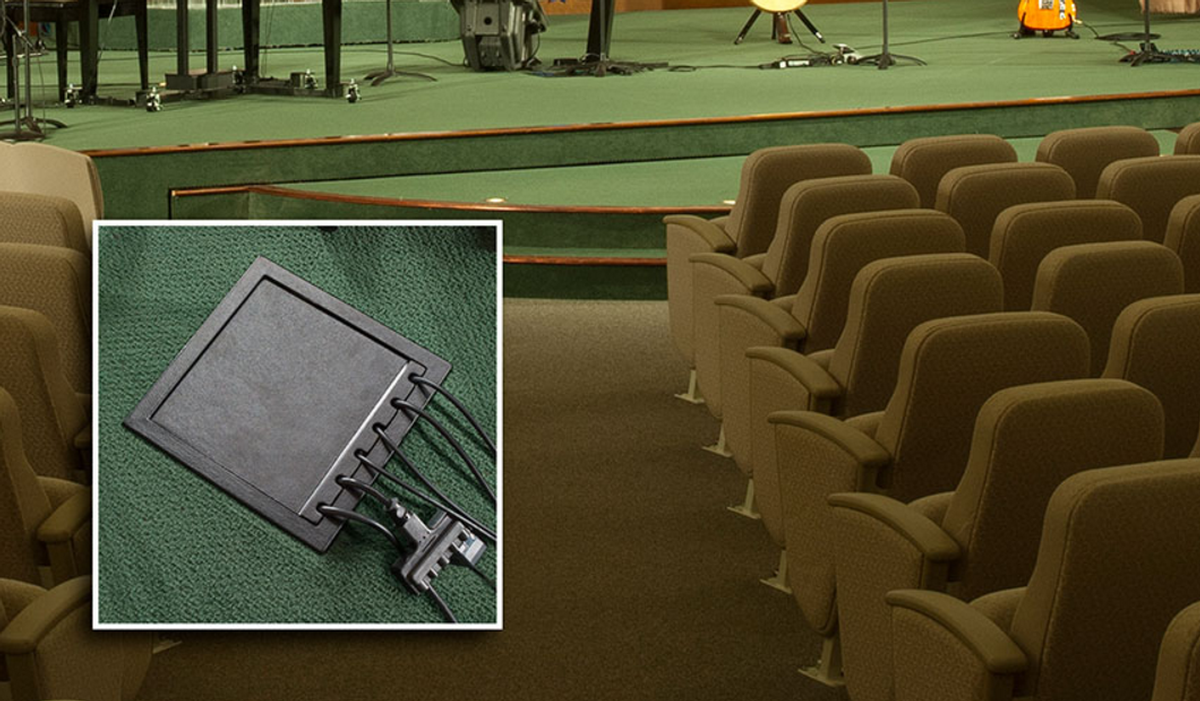

The Lew Electric RF10CKK is a floor box designed specifically for raised floors and stages. Included is a heavy duty cast aluminum black lid, when closed there are 6 gaps for cables to pass through while they are still connected inside the box.

Inside the box you will find openings for 16 keystone openings.

The box is made of a very durable 16 gauge galvanized steel, and the lid features a heavy duty 1/4" thick flange and a 3/4" thick bottom lip. The lid features a 1/4" recess in the top for inserting carpet or tile. There are two knockouts on each side of the box, they can be popped out to accept either 1/2" or 3/4" conduit.

Installing to floor is easy by removing the lid and screwing the flange to the floor, then re-install the lid.

The Lew Electric RF10CKK is an affordable high quality raised access floor box that allows cables to be plugged in with the lid closed.

Specifications:

Inside openings: 16 keystone openings
Lid construction: Black cast aluminum with 1/4" thick flange and 6 cable access holes
Box construction: 16 gauge galvanized steel
Lid dimensions: 11 1/2"L X 11 1/2"W
Box dimensions: 10"L x 10"W x 4"H
4 knockouts, your choice of 1/2" or 3/4
Warranty: 6 months;

Specifications

• Box dimensions: 10"L x 10"W x 4"H
• 4 knockouts, your choice of 1/2" or 3/4"
• Warranty: 6 months

Downloads

• Lew Electric RF10CKK Specifications (PDF)
• Lew Electric RF10CKK Manual (PDF)
• Box diagram (PDF)
