Lew Electric RRP-2-LR
Rectangle Dual 15A Outlet Floor Box w/ Flip Lids - Brass

Description

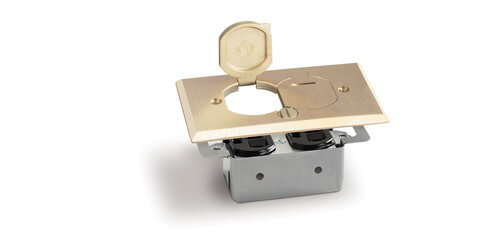

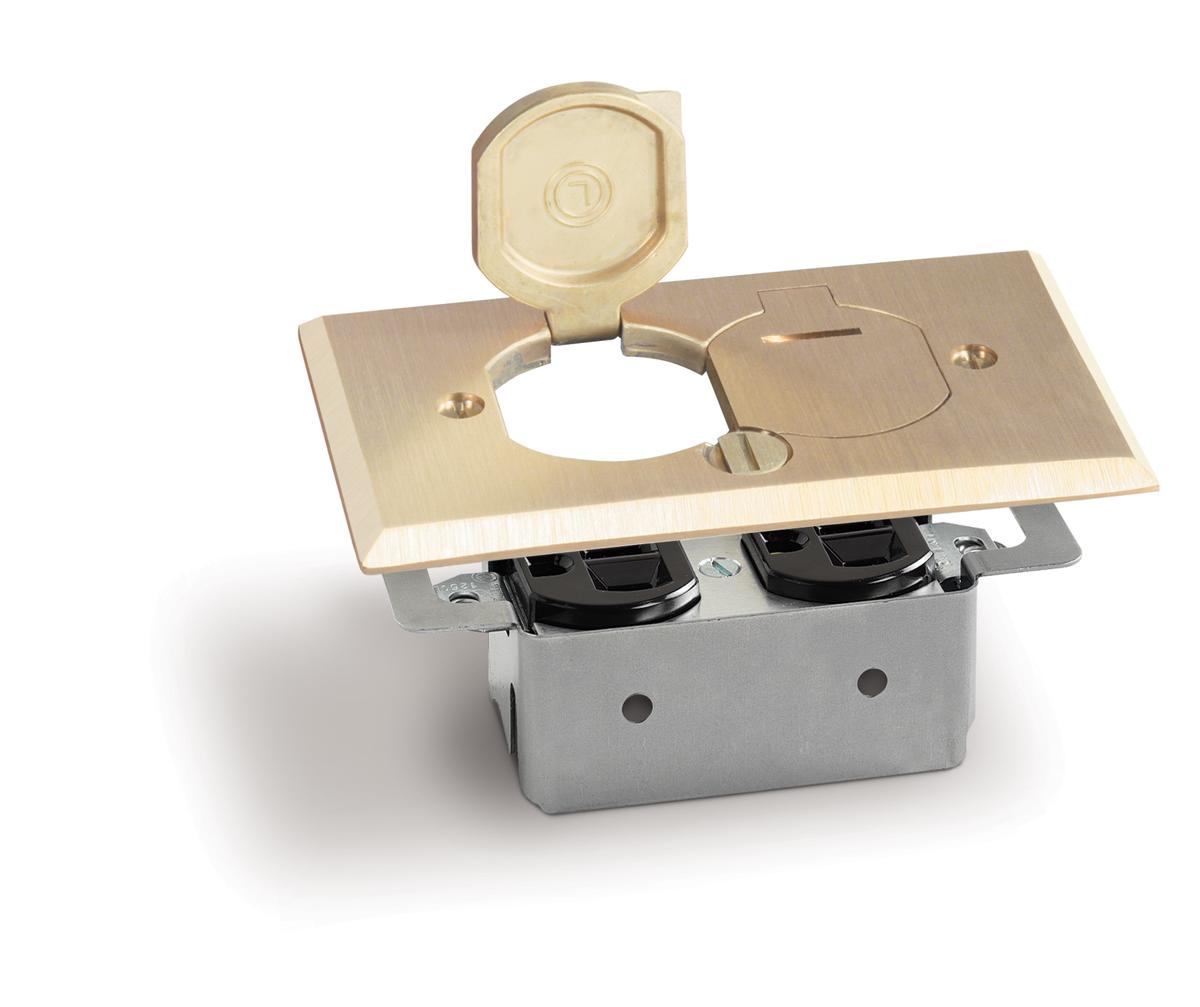

The Lew Electric RRP-2-LR is a floor box that holds (2) 15A tamper resistant power outlets, the top brass plate features two flip up lids. The box meets NEMA WD1-1983 heavy duty requirement for display receptacles, the box and outlet are UL listed. The box features a water tight assembly and includes a neoprene gasket. The box is adjustable and can accommodate any thickness floor up to 3/4".

To install you must use a 2" x 3" box with a 3 1/2" depth (not supplied).  The box may be attached directly to a sub floor or routed into finished floor. Brass screws are included to attach box to plate.

The Lew Electric RRP-2-LR is an economical solution when you need a duplex power that is easy to install and functions perfectly.

Specifications

• Water tight assembly
• Outlet UL listing # 498
• Outlet meets NEMA WD1-1983 heavy-duty requirement for display receptacle code
• Box UL listing # 729A (File # E333616)
• Installation: Must use a 2" x 3" box with a 3 1/2" depth (not supplied)
• Includes 1/16" neoprene gasket and brass installation screws
• Can accommodate any thickness floor up to 3/4"
• Warranty: 6 months

Downloads

• Lew Electric RRP-2-LR Specifications (PDF)
• Lew Electric RRP-2-LR Manual (PDF)
