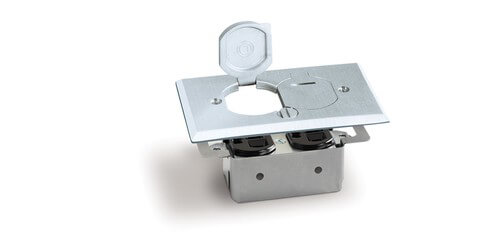

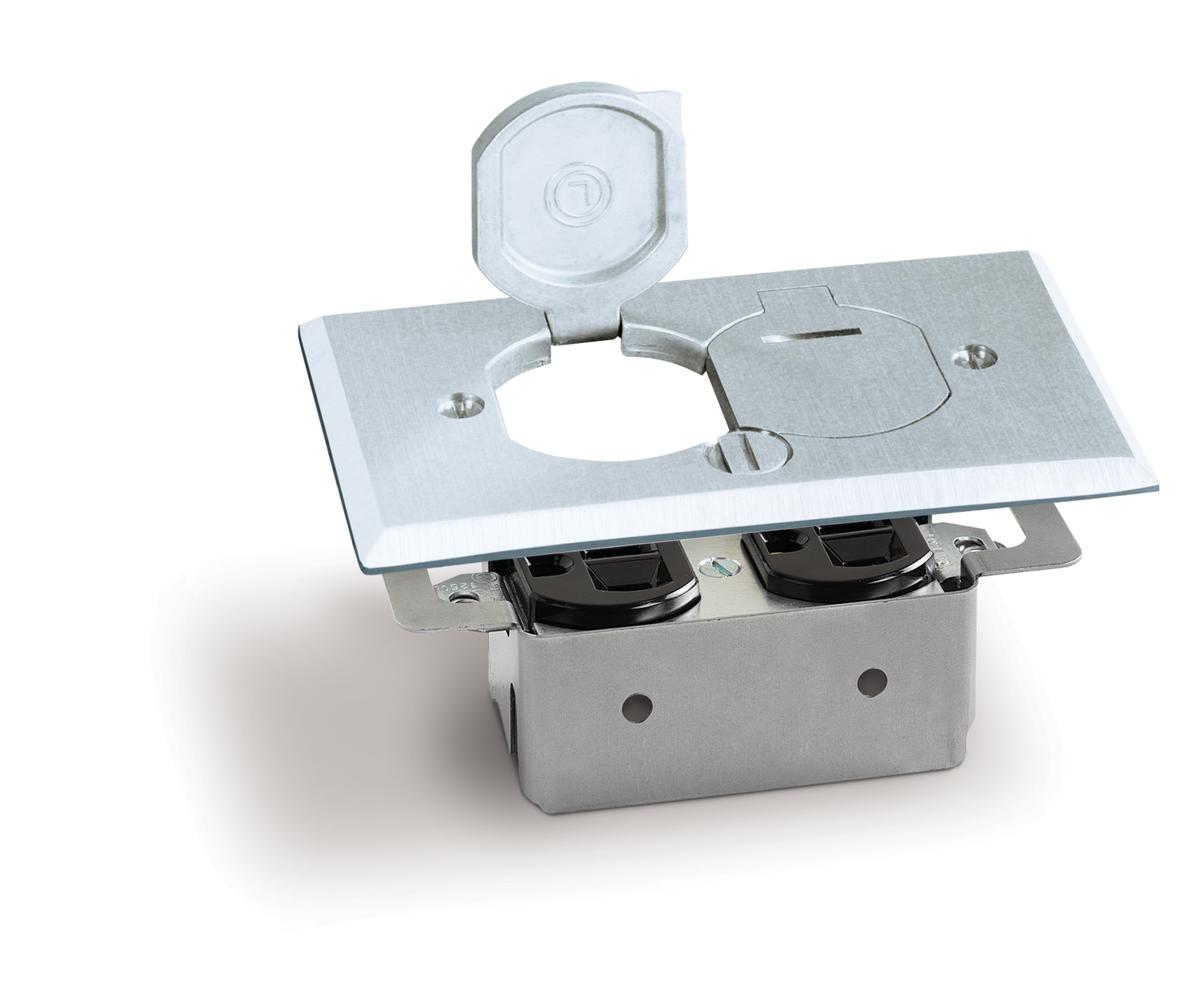

Lew Electric RRP-2-LR-A
Rectangle Dual 15A Outlet Floor Box w/ Flip Lids - Aluminum
- Cover plate: 1/8" thick aluminum
- Two 15A tamper resistant outlets
- Two flip up lids
- Dimensions: 2 7/8" X 5 1/8" X 1 3/8"
Description
The Lew Electric RRP-2-LR-A is a floor box that holds (2) 15A tamper resistant power outlets, the top aluminum plate features two flip up lids. The box meets NEMA WD1-1983 heavy duty requirement for display receptacles, the box and outlet are UL listed. The box features a water tight assembly and includes a neoprene gasket. The box is adjustable and can accommodate any thickness floor up to 3/4".
To install you must use a 2" x 3" box with a 3 1/2" depth (not supplied). The box may be attached directly to a sub floor or routed into finished floor. Installation screws are included to attach the box to the plate.
The Lew Electric RRP-2-LR-A is an economical solution when you need a duplex power that is easy to install and functions perfectly.
Specifications
- Water tight assembly
- Outlet UL listing # 498
- Outlet meets NEMA WD1-1983 heavy-duty requirement for display receptacle code
- Box UL listing # 729A (File # E333616)
- Installation: Must use a 2" x 3" box with a 3 1/2" depth (not supplied)
- Includes 1/16" neoprene gasket and installation screws
- Can accommodate any thickness floor up to 3/4"
- Warranty: 6 months
