Lew Electric SWB-4-LR-A
Floor Box w/ 2 Power & 4 Keystones w/ 4 Flip Lids - Aluminum
- Cover plate: 1/8" thick aluminum
- Two 15A tamper resistant outlets
- Four empty keystone ports
- Four flip lids
-Maciej Z.
Description

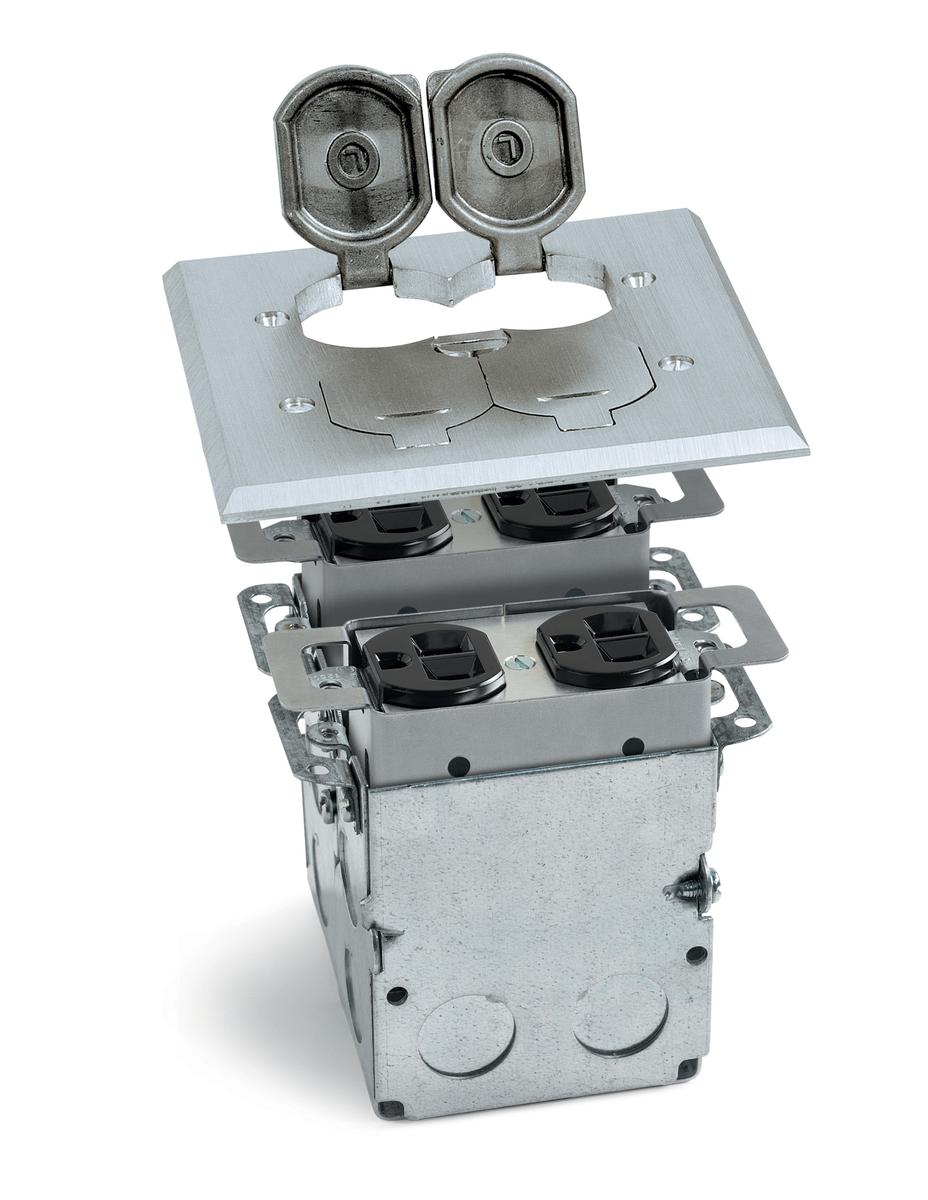

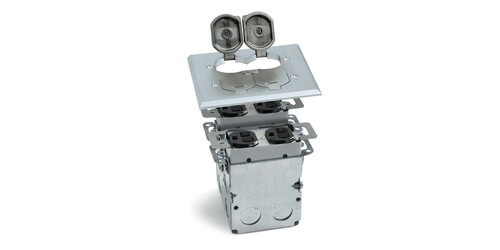

The Lew Electric SWB-4-LR-A is a square floor box that holds (2) 15A tamper resistant power outlets, the top aluminum plate features four flip lids for access. The box meets NEMA WD1-1983 heavy duty requirements for display receptacles, the box and outlet are UL listed. The box features a water tight assembly and includes a neoprene gasket. The box is adjustable and can accommodate any thickness floor up to 3/4".

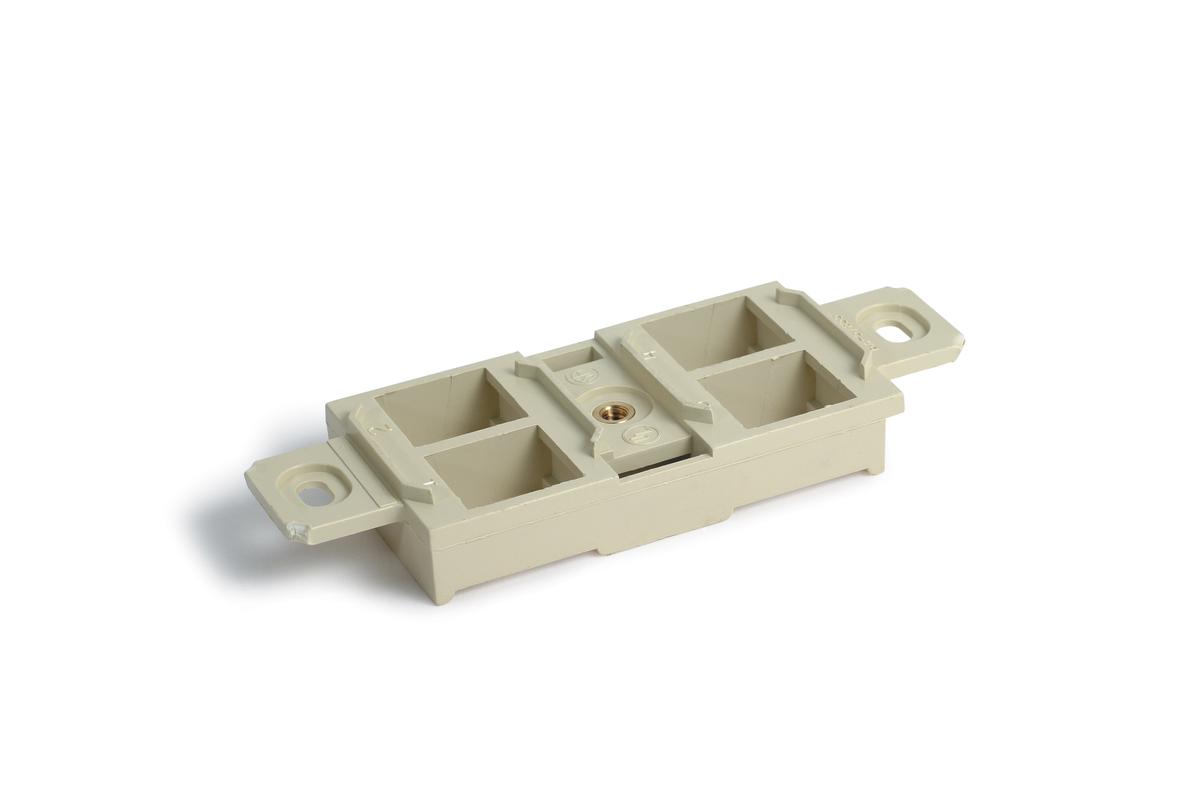

***Includes 4 port keystone plate in case you want to remove one of the power outlets***
To install use the included back box, there are twelve 3/4" conduit knockouts to bring your wire into. The box may be attached directly to a sub floor or routed into finished floor. Screws are included to attach the box to the plate.
The Lew Electric SWB-4-LR-A is an economical solution when you need power and connectivity in your floor that is easy to install and functions perfectly.
Specifications
- Box dimensions: 5" X 5"
- Depth: 4.01"
- Water tight assembly
- Outlet UL listing # 498
- Outlet meets NEMA WD1-1983 heavy-duty requirement for display receptacle code
- Box UL listing # 729A (File # E333616)
- Cutout max dimensions: 4" x 3 1/2"
- Includes 4 port keystone plate, back box, 1/16" neoprene gasket, and installation screws
- Can accommodate any thickness floor up to 3/4"
- Warranty: 6 months
