Lew Electric SWB-6-A
Rectangle Six Power Floor Box w/ 6 Screw Plugs - Aluminum
- Cover plate: 1/8" thick brass
- Six 15A tamper resistant outlets
- Six screw plug openings
- Box dimensions: 7" X 5"
-Brandon K.
Description

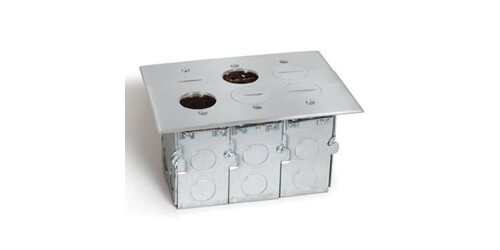

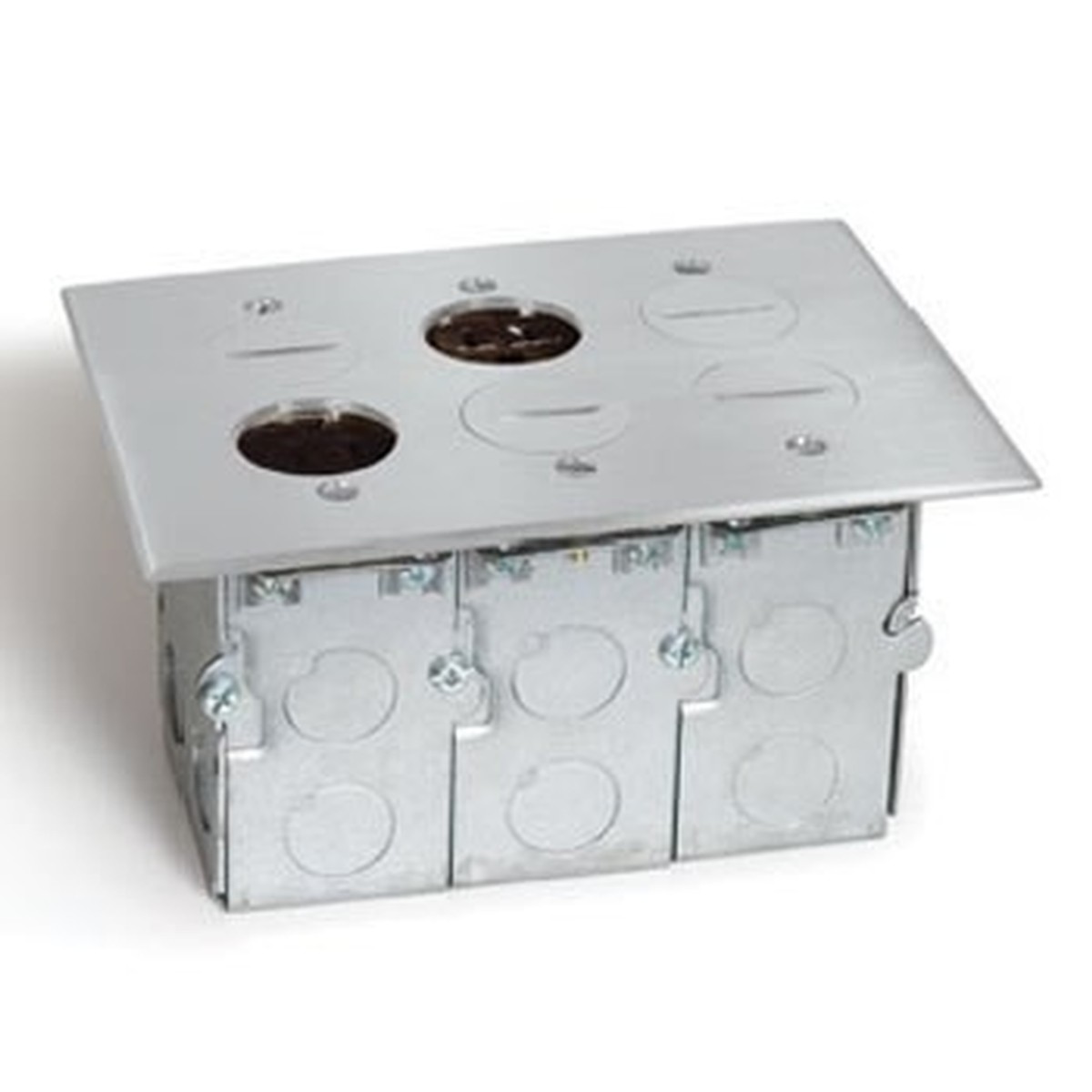

The Lew Electric SWB-6-A is a rectangular floor box that holds (6) 15A tamper resistant power outlets, the top aluminum plate features six screw plugs. The box meets NEMA WD1-1983 heavy duty requirement for display receptacles, the box and outlets are UL listed. The box features a water tight assembly and includes a neoprene gasket. The box is adjustable and can accommodate any thickness floor up to 3/4".

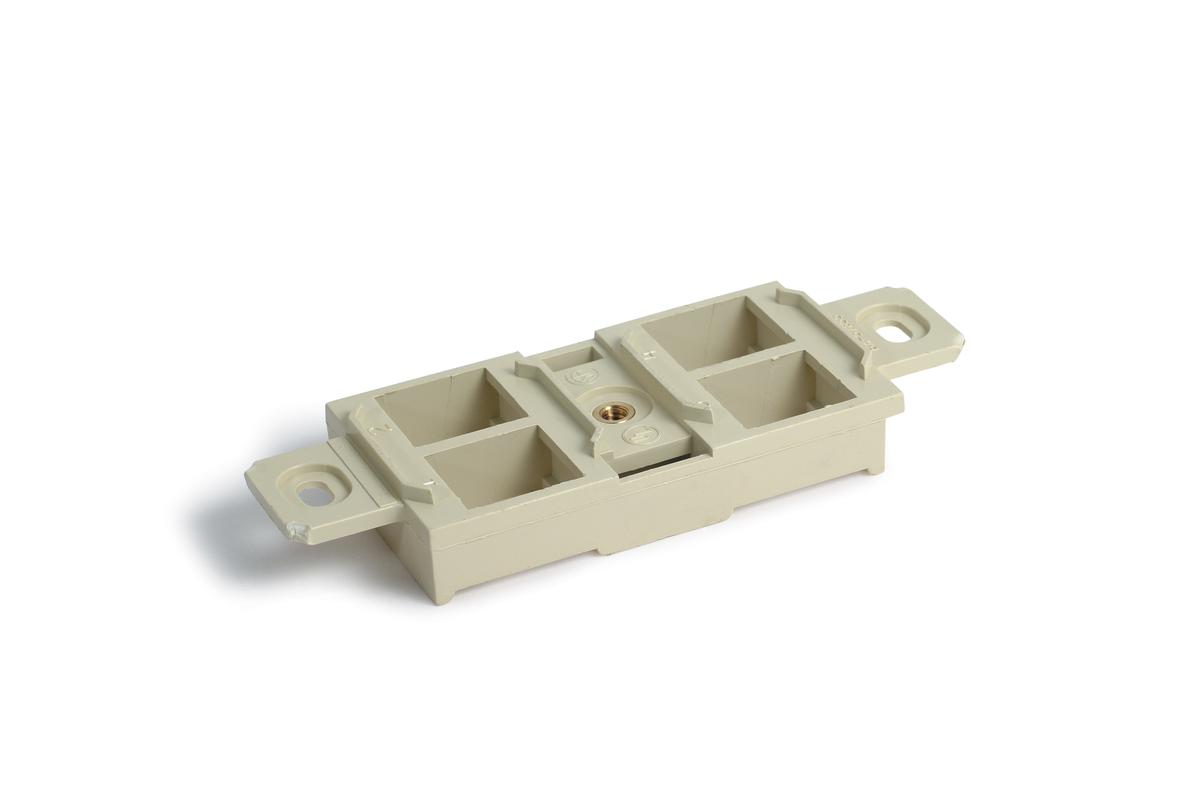

***Includes 4 port keystone plate in case you want to replace one of the outlets***
To install use the included back box, there are sixteen 3/4" conduit knockouts to bring your wire into. The box may be attached directly to a sub floor or routed into finished floor. Screws are included to attach the box to the plate.
The Lew Electric SWB-6-A is an economical solution when you need three duplex powers that is easy to install and functions perfectly in a small compact box.
Specifications
- Depth: 4.01"
- Water tight assembly
- Outlet UL listing # 498
- Outlet meets NEMA WD1-1983 heavy-duty requirement for display receptacle code
- Box UL listing # 729A (File # E333616)
- Cutout max dimensions: 6" x 3 1/2"
- Includes 4 port keystone plate, back box, 1/16" neoprene gasket, and brass installation screws
- Can accommodate any thickness floor up to 3/4"
- Warranty: 6 months
