Liberty AV 24-4P-P-L7SH-BLU
Cat7 Class F HDBaseT 2.0 S/FTP Plenum Cable - 1000'
Part #: 24-4P-P-L7SH-BLU
Satisfaction Guaranteed!
MSRP: $2,884.32
Our Price:
$2,518.01
Top 24-4P-P-L7SH-BLU Specifications
- 1000' spool
- Plenum rated
- Color: Blue
- 22 AWG solid bare copper conductors
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

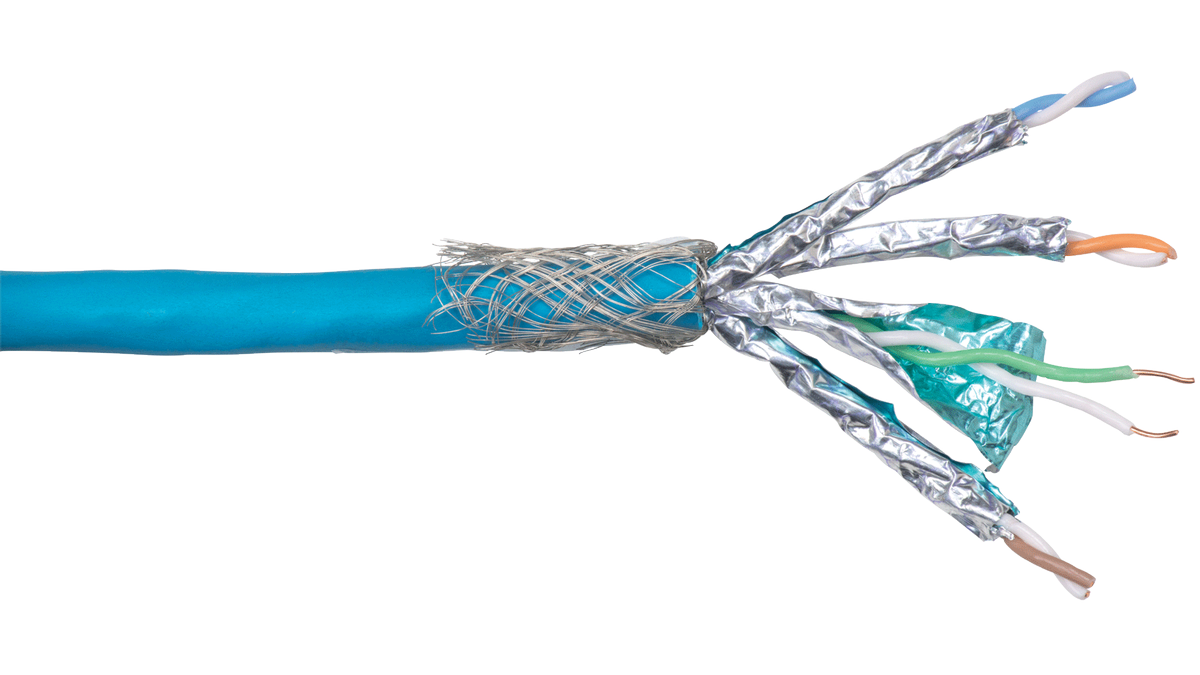

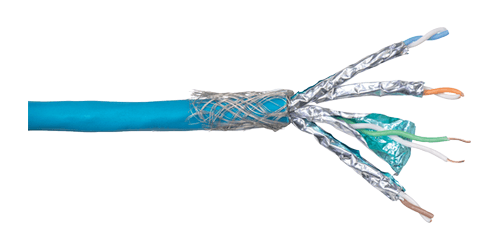

The Liberty AV 24-4P-P-L7SH-BLU is a Category F HDBaseT S/FTP cable in a 1000' reel spool, it is 4 pair twisted and individually shielded. It is plenum rated for those installations that require the UL 444 rating. What makes this cable special is that it gets you ready for HDBaseT 2.0 specifications, now you can be ready for 500MHz bandwidth and above. Be ready for the new 4K/8K specifications and future-proof your wiring installation.
Specifications
- Solid bare copper conductors
- Individually shielded twisted pairs
- Overall 65% braid shield and drain wire
- Ripcord under the jacket
- Third Party verified to ISO 11801 Class F (Cat 7)
- NEC CM, NEC CMP, CEC CMP FT6, CEC CMG FT4, RoHS Compliant
- Applications: PoE, HDBaseT 4K 30/60Hz, Analog and Digital Multimedia
- Outside diameter: .315"
- Pull tensions: 25 lbs
- Warranty: 2 years
