Liberty AV BYOD-HUB-UT
Connection Hub - 6 Input to HDMI Under-Table Auto Switcher

Description

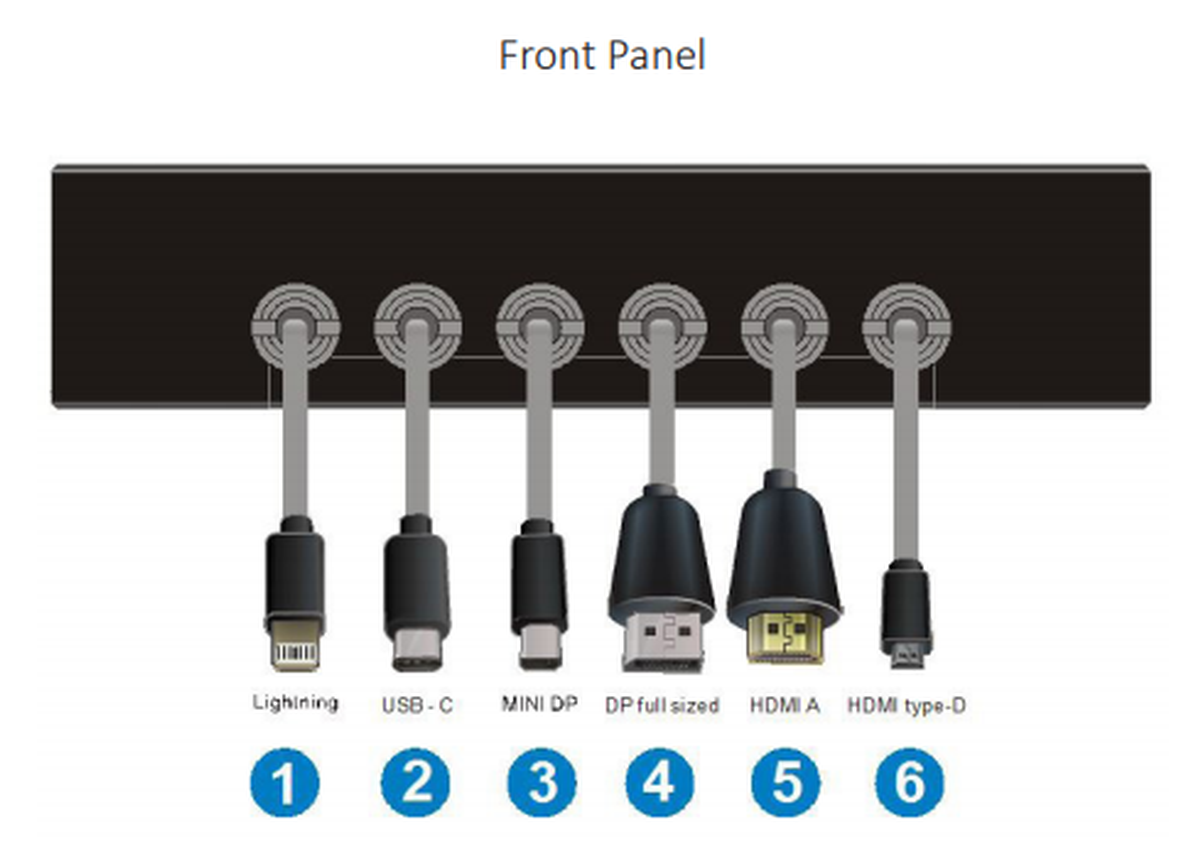

Liberty AV Solution presents the DigitaLinx BYOD-HUB-UT. This multi-format video converter connects mobile devices using the following inputs: DP, MiniDP, USB-C, Apple Lightning, HDMI, mini HDMI.

Features and Benefits

• All listed input types converted to HDMI and scaled to 1080P or 4K
• Cables are 4 1/2' for under-table mounting, pass-through cubbies, table grommets, etc.
• Output resolution can be set to 4k or 1080p
• Auto-switching to last connected device
• HDCP-Compliant

Applications

• Under-table mount on conference room and huddle room tables
• Lectern mount for BYOD connectivity in Education or Training rooms
• Use without table mount and sit on top of table for BYOD connectivity
• Mount on mobile carts for easy device connectivity

Specifications

• Display Port Video Resolution: Up to 4Kx2K@30Hz
• Mini Display Port Video Resolution: Up to 4Kx2K@30Hz
• HDMI Standard: HDMI 1.4
• HDCP Compliance: HDCP 2.2
• Video Bandwidth: 10.2 Gbps

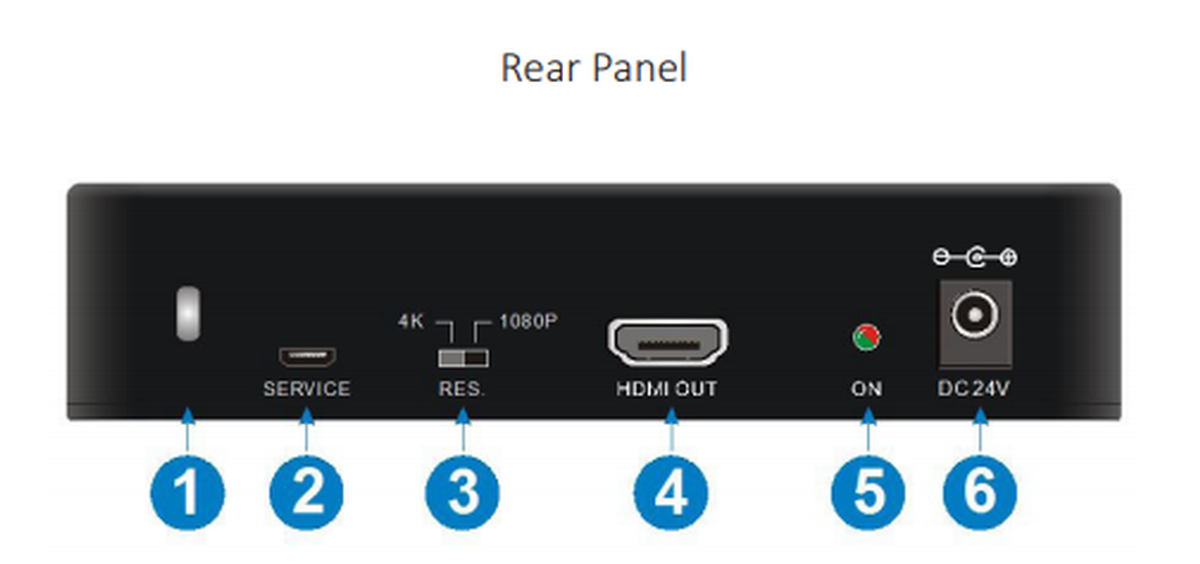

• Video Output
• Connector Type: HDMI Type A
• HDMI Standard: HDMI 1.4
• HDCP Compliance: HDCP 1.4
• Video Resolution: 4Kx2K@30Hz 4:4:4
• General
• Operating Temperature: 0 to +40 C (+32 to +104 F)
• Storage Temperature: -10 to +55 C (+14 to +131 F)
• Operating Humidity (Environment): 10% to 90%, Non-condensing
• Dimensions (W*H*D): 5.3" x 5.3" x 1.2"
• Cable Lead Length: 4.2 ft
• Net Weight: 1.7lbs
• Power
• Maximum Power Consumption: 18 watts (full load, all inputs in use)
• Power Supply Input Voltage: 100-240V AC at 50-60 Hz
• Power Supply Output Voltage: 24V DC 1.25A
• Regulatory: CE, FCC, RoHS
• Other
• Standard Warranty: 2 Years
• Included Items: BYOD-HUB-UT Auto Switcher
• Install Guide
• (1) 24VDC Power Supply with 4 power plug adapters for US, EU, AU, and UK
• (1) Mounting Bracket
• (1) USB A to Micro USB cable
