Liberty AV DL-1H1A1UWP-H3
Digitalinx Series 4K60 HDMI & USB HDBaseT 3.0 Wall Plate Extension Set
Part #: DL-1H1A1UWP-H3
Satisfaction Guaranteed!
MSRP: $1,000.00
Our Price:
$873.00
Top DL-1H1A1UWP-H3 Specifications
- Single Gang Decora style wall plate format Transmitter and standard style Receiver set with accessories
- Uncompressed HDMI 2.0 extension featuring HDBaseT 3.0
- HDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 to 40m over Cat6a or above, 10.2Gbps 4K60 4:2:0 to 70m
"Excellent and prompt call back from customer service!"
-Maciej Z.
-Maciej Z.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

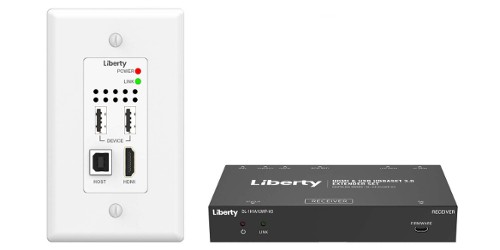

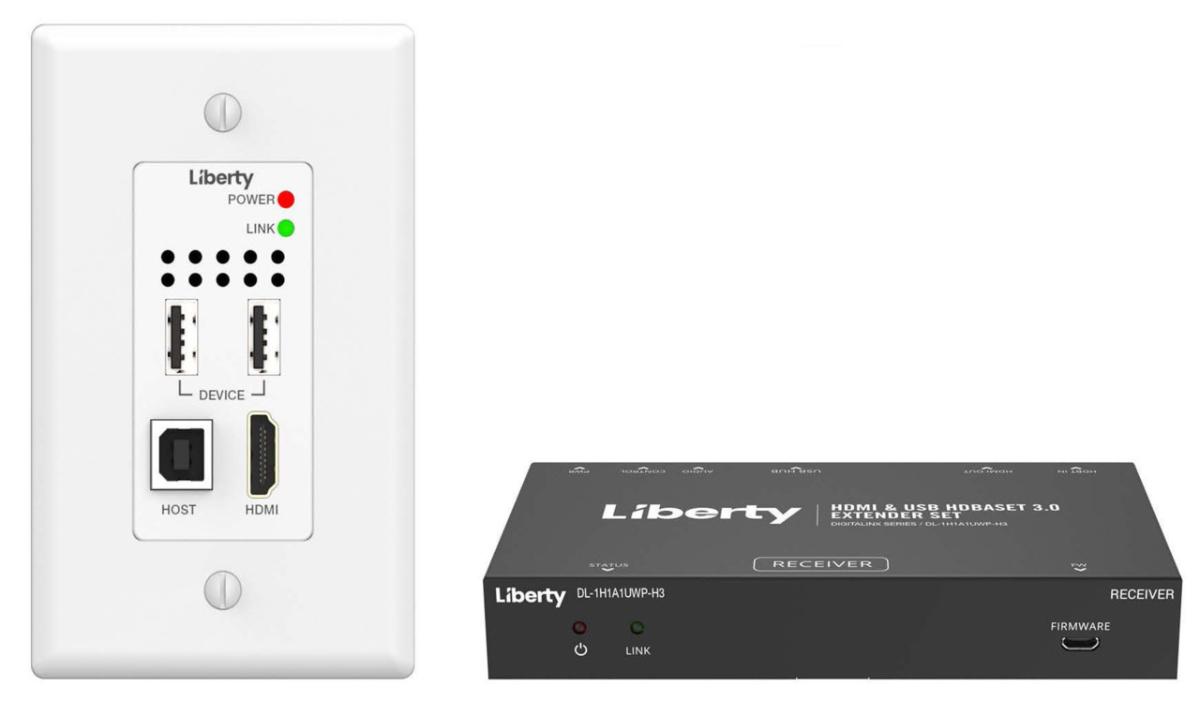

This wall plate extension set is based on HDBaseT 3.0 VS300R, with a standard US 1GANG Decora design. Uncompressed video signal transmission distance can be extended up to 230ft/70m for 4K@30Hz, or

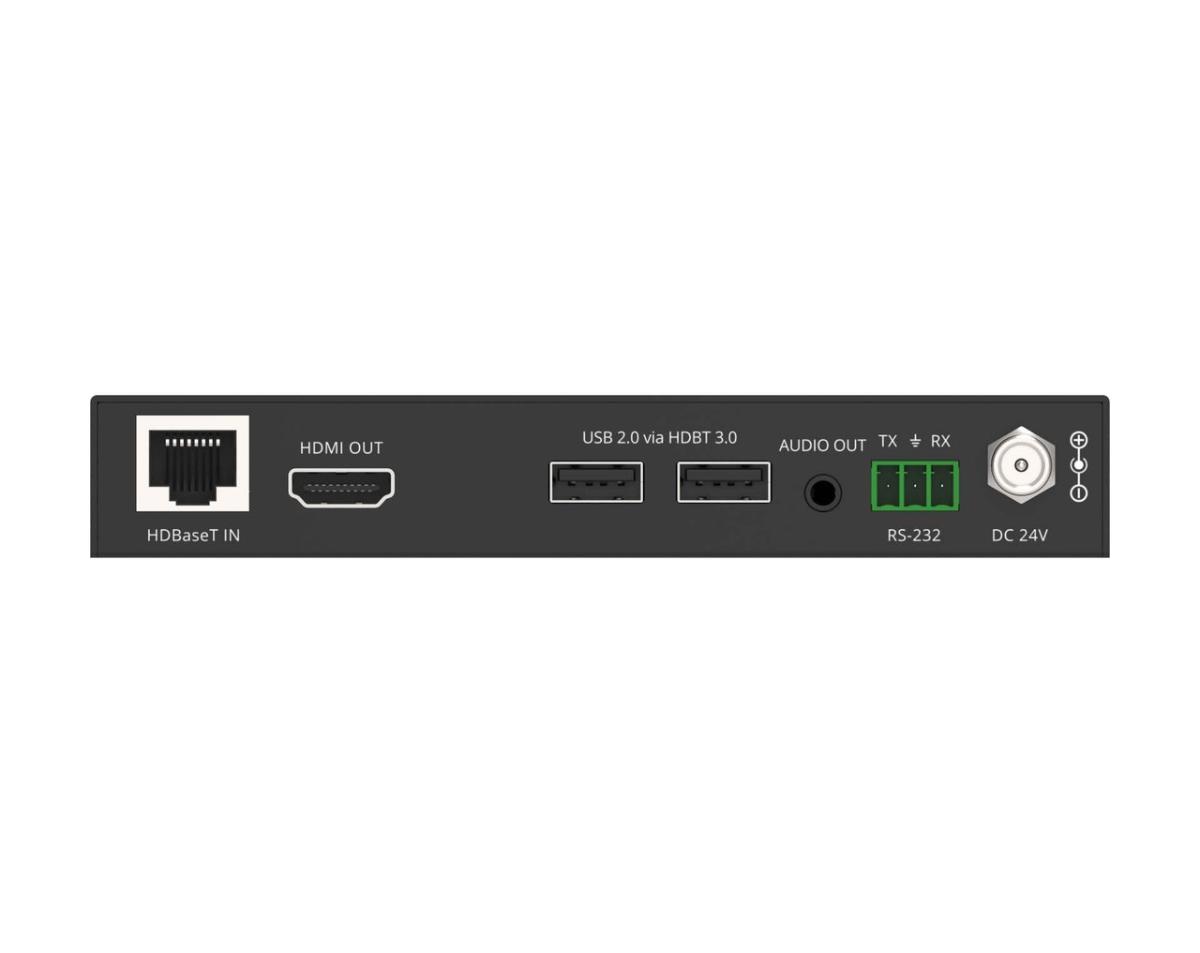

131ft/40m for 4K@60Hz over a single CAT6A/7 (F/FTP) cable. The transmitter features 1x HDMI input, 1x USB-B host and 2x USB-A client ports. The receiver features with 1x HDMI output, 2x USB-A client ports, 1x Audio de-embedding port. This product supports RS-232 signal pass-through, EDID management, and 24V bidirectional PoC (power over cable) function.
