Liberty AV DL-2H1V1U-WP-W
Digitalinx HDMI, VGA, and USB 2.0 Extender with Display Control
-Patrick S.
Description

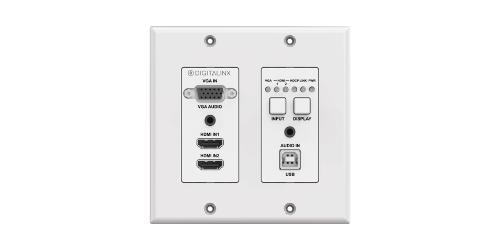

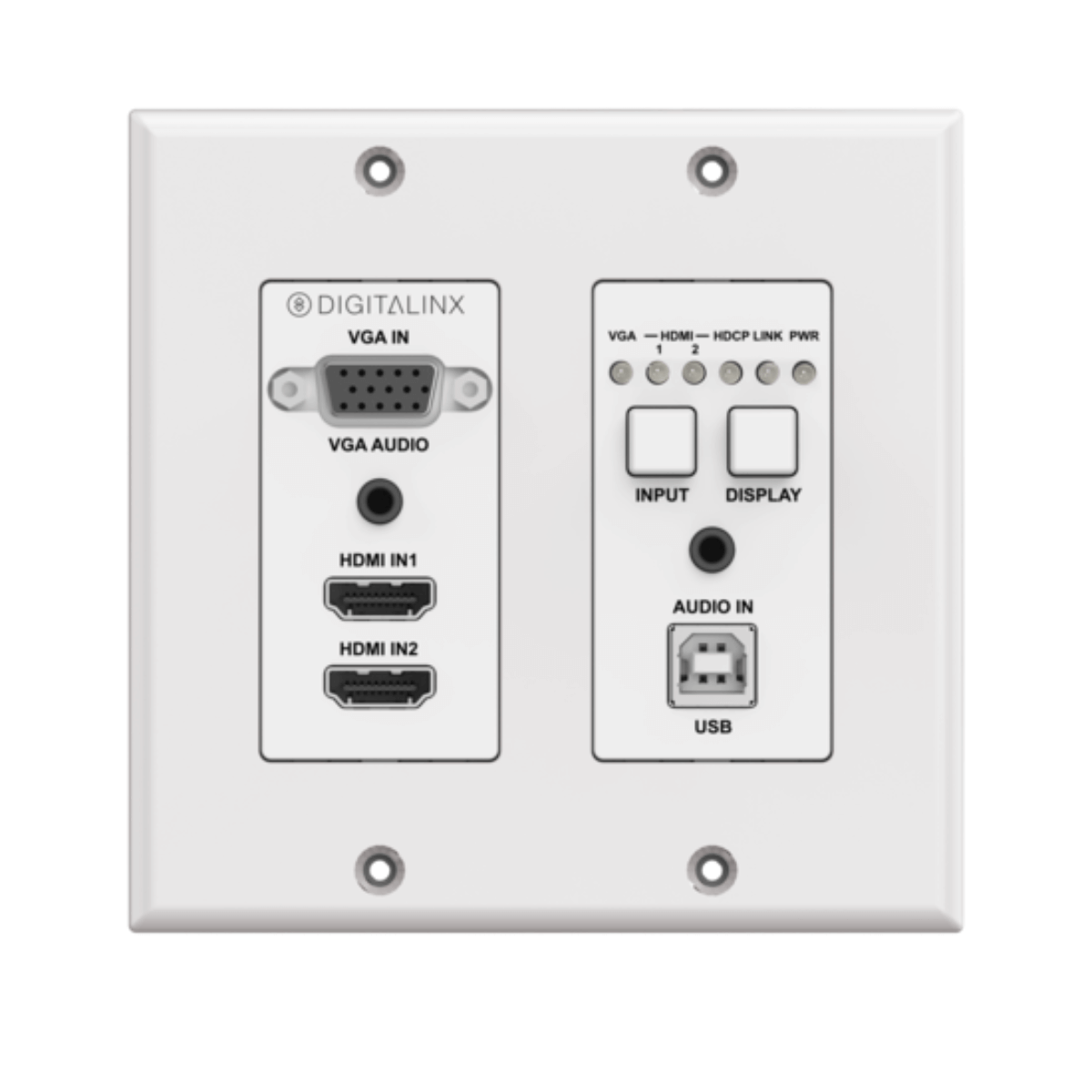

The DigitaLinx DL-2H1V1U-WP-W is a 3x1 auto switching HDBaseT 2.0 audio, video and USB transmitter that supports the long distance transport of HDMI, VGA and High Speed USB 2.0 signals up to 100 meters / 330' using category cabling. The DL-2H1V1U-WP-W is 4K compatible with a max resolution of 4K@60Hz / 4:2:0 8bit deep color. An additional analog audio input is located on the wall plate that allows for independent audio pass through to a compatible Digitalinx HDBaseT receiver (not included). With 48V integrated PoH, the DL-2H1V1U-WP-W can be powered by the HDBaseT receiver with a power supply or the wall plate can be powered by a local DC power supply. The DL-2H1V1U-WP-W is ideal for applications where USB must be extended alongside HDMI, VGA video for interactive whiteboard display interactivity.
The DL-2H1V1U-WP-W gives you the ability to program and automate TV display / projector ON status by using pre-loaded RS232 commands or HDMI CEC whenever a video signal is introduced to the system using either HDMI or VGA input. It can also automate the display power OFF after a specified amount of time has passed when no video signal is present. It also gives you the ability to turn the display ON or OFF as well and switch from one input to another manually using the front panel buttons on the transmitter face plate.
NOTE: The DL-2H1V1U-WP-W HDBaseT transmitter must be used with the DL-HD2-RX or the DL-HD2A-RX HDBaseT 2.0 receiver (sold separately) to complete the circuit.
