Liberty AV DL-AR7568
DigitalLinx Universal HDMI Adapter Ring Kit

Description

The Liberty AV Solutions DL-AR7568 adapter ring kit is a multiple format to HDMI adapter ring that locks on to the end of your existing HDMI cable and provides all your adapters on a conveniently located, easy to use, ring. Your adapters can no longer be lost or stolen, with the high strength steel cable, your adapters are securely attached to your HDMI cable, making them available for use when needed. To use, simply choose the adapter you need from the ring, attach it to your device and plug into your HDMI cable, it is that easy. There is no signal loss using any of the adapters, your picture quality will remain the same. Perfect for your presentations and adapting mobile content to an HDMI infrastructure, the DL-AR7568 gives you coverage for the exact video format you need and solves your issues of trying to find the right cable or adapter.

These adapters are sleek, take up very little space, are ideal in a fixed installation, or for the on the go presenter that wants to make sure they will have the right adapter for the right situation. Each adapter features gold plated connectors that provide the most reliable connection possible. While this adapter ring does not need to be securely fastened to an HDMI cable, it does come with a security clamp that attaches to any HDMI cable ranging from micro 4mm thick to large 11mm thick. Please do note: to secure the clamp to an HDMI cable, or add more adapters later, you will need to use the optionally purchased Liberty AV T10PD - DL-AR Adapter Ring Tool Kit with Torx T-10 Driver & 1.5mm Hex Wrench. If you need this toolkit, please purchase part number T10PD.

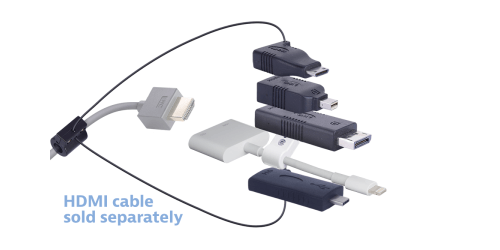

The DL-AR7568 includes the ring, clamps, and all necessary hardware as well as the following adapters, ships pre-assembled:

• 1x - ARMCHD Mini HDMI C Male to HDMI Female Adapter
• 1x - ARMDPHD Mini DisplayPort Male to HDMI Female Adapter
• 1x - ARUCMHDF USB Type C Male to HDMI Female Adapter
• 1x - ARDPHD DisplayPort Male to HDMI Female Adapter
• 1x - MD826AM/A Lightning Male to HDMI Female Certified Adapter Cable

Need a custom ring built with your specific adapters? Please see our DL-AR custom ring builder to build your own adapter ring. To request a quote for larger quantities or to attach your own custom logo dog tags, please call us at 888-999-3759, email us or contact us via Live Chat.

Specifications

• 1x - ARDPHD DisplayPort Male to HDMI Female Adapter
• 1x - MD826AM/A Lightning Male to HDMI Female Certified Adapter Cable
• Base security clamp, cable and hardware for DL-AR system
• *Does not include HDMI cable in pictures
• Also includes: Four T-10 screws, Four M3 nuts, one retaining ring, one 1.5 mm hex retaining screw, 2 sets of foam rubber inserts for varying diameter HDMI cables
• Security: Clamp cannot be opened or installed without a Torx T10 Pin driver
• Attaches to HDMI cables from 4mm to 11 mm thick
• Warranty: 2 years

Downloads

• Liberty AV DL-AR7568 Specifications (PDF)
• Liberty AV DL-AR7568 Manual (PDF)
