Liberty AV
DL-AS31-2H1DP-BSTK

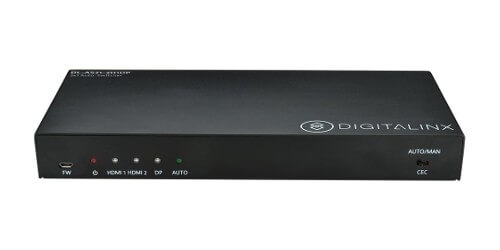

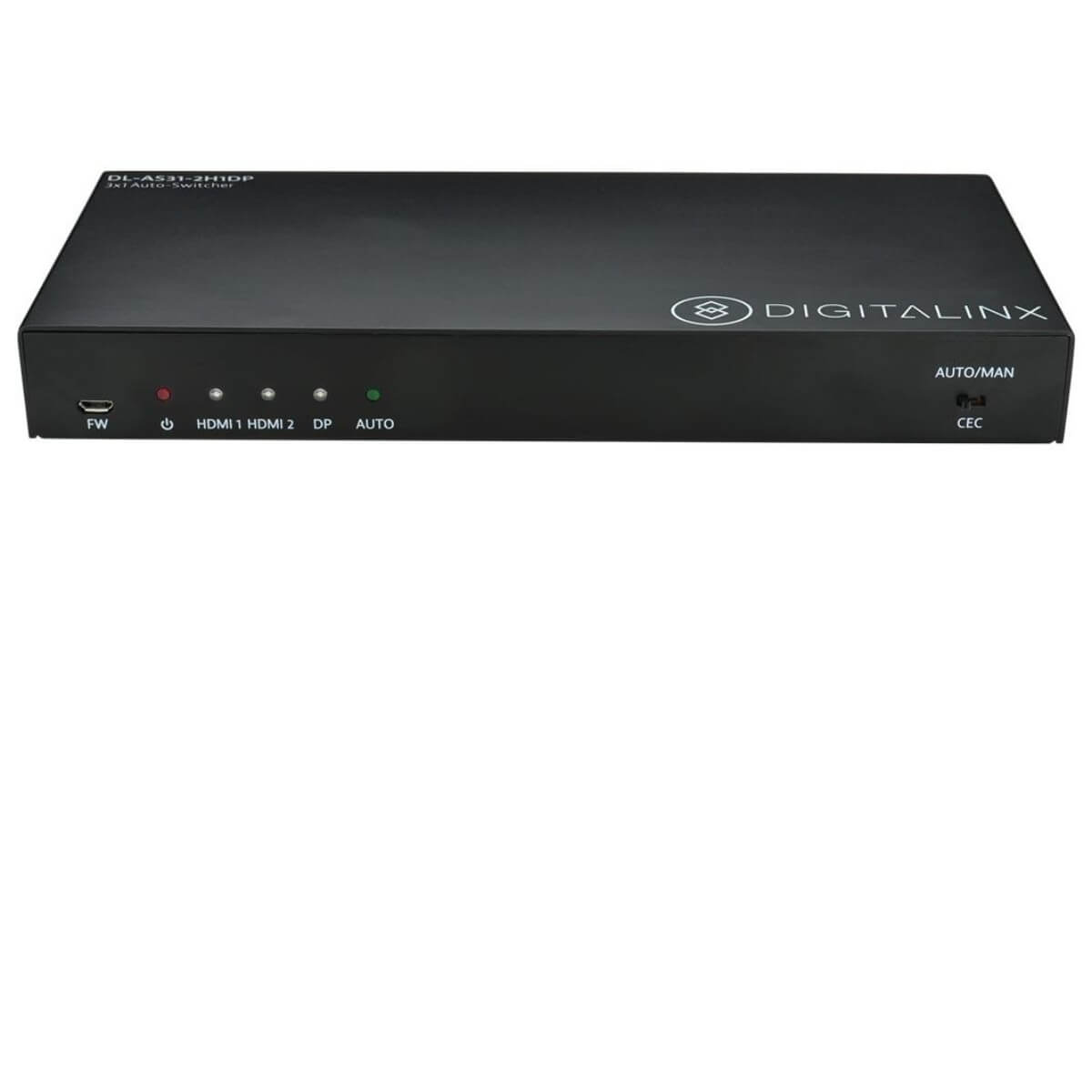

DigitaLinx 3x1 HDMI & DisplayPort Auto-Switcher
-Jeff A.
Description
The DL-AS31-2H1DP is a multiformat auto-switcher with two HDMI inputs, one DisplayPort with analog audio input, one HDMI output, and one balanced analog audio output. This auto-switcher supports HDMI and DisplayPort video resolutions up to 4Kx2K at 30 Hz and multichannel audio. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The DL-AS31-2H1DP will de-embed the digital audio from the HDMI output signal, and output it via the balanced analog audio output port.
When in auto-switch mode, the DL-AS31-2H1DP will switch to a signal input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input. The DL-AS31-2H1DP may also be controlled via RS232 commands or by contact closures on the rear of the switcher.
