Liberty AV DL-AS61-BSTK
4 HDMI + 2 VGA Input Auto-Switcher
-Lynn Y.
Description

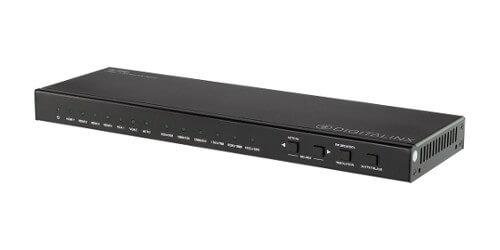

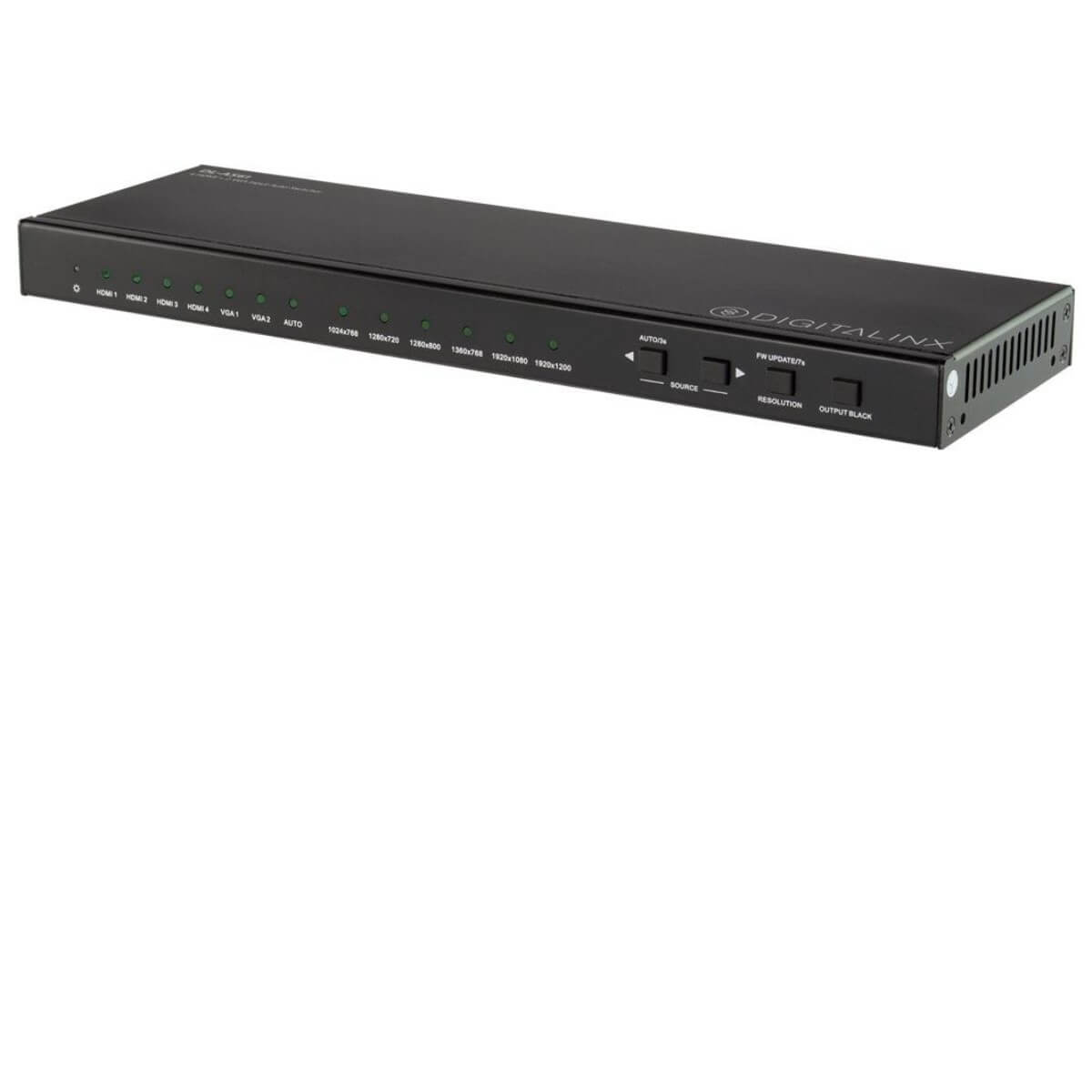

The DigitaLinx DL-AS61 is a compact multi-format switcher with support for video resolutions up to UHD (3840x2160). With multiple built-in EDID settings, including an EDID pass-through option, the highest quality digital video signal will be routed directly to the display. When a VGA video signal is connected, the video signal will be scaled up to 1920x1200.
The DL-AS61 supports stereo and multichannel audio on the HDMI inputs. The analog audio paired with the VGA inputs is embedded into the digital video stream. In addition to the audio embedded in the HDMI output stream, which may be muted, the audio is simultaneously de-embedded to a digital optical audio output and two analog audio outputs: 3.5mm TRS and 3-pin removable terminal block.
The DL-AS61 features multiple methods of control. When set to Auto, the switcher will automatically switch to the newest source device added to the DL-AS61; when the active source is removed, the DL-AS61 will switch to the lowest numbered input. The DL-AS61 may be manually controlled by switching via the front panel, IR or RS232.
