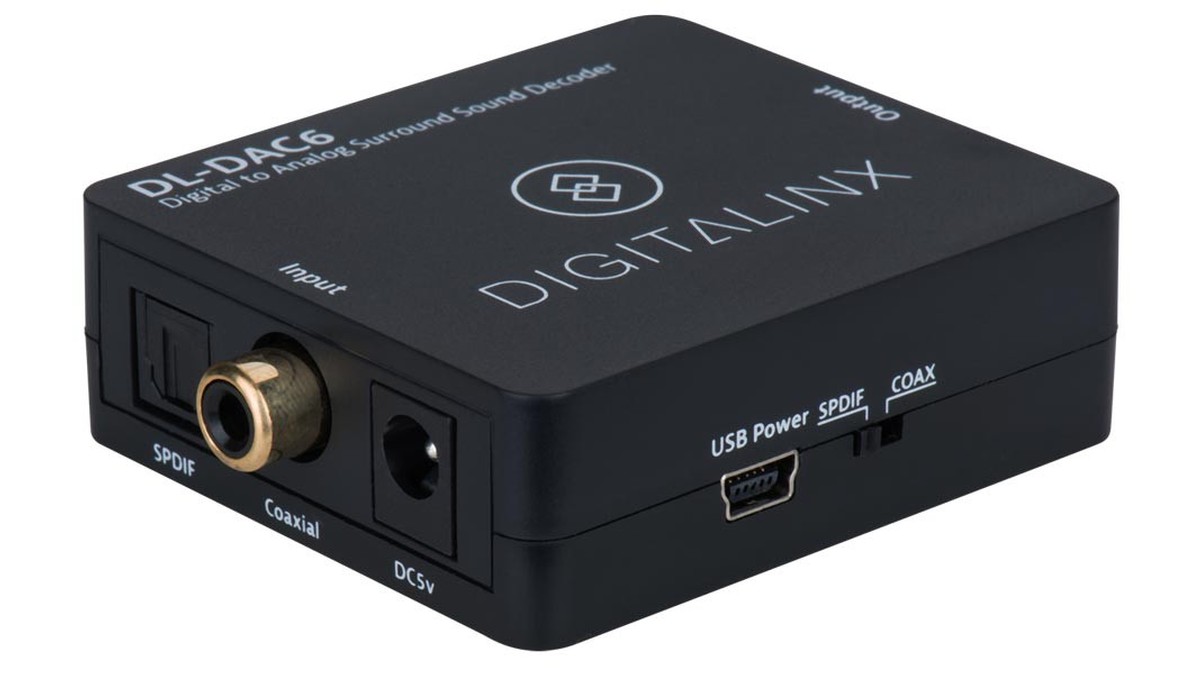

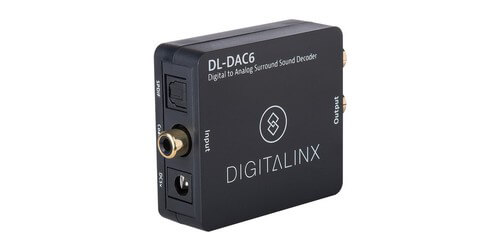

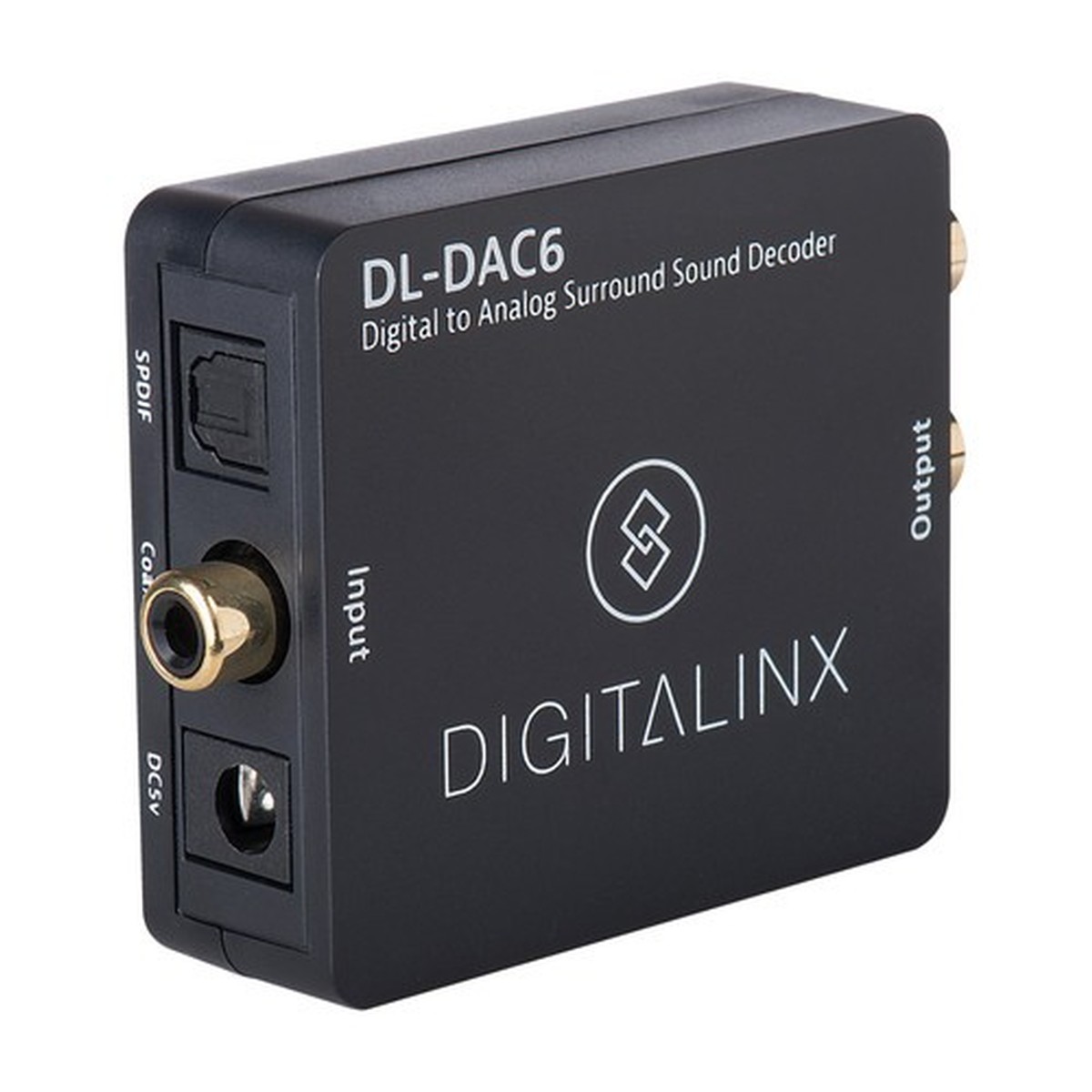

Liberty AV DL-DAC6
Digital to Analog Surround Sound Decoder

Description

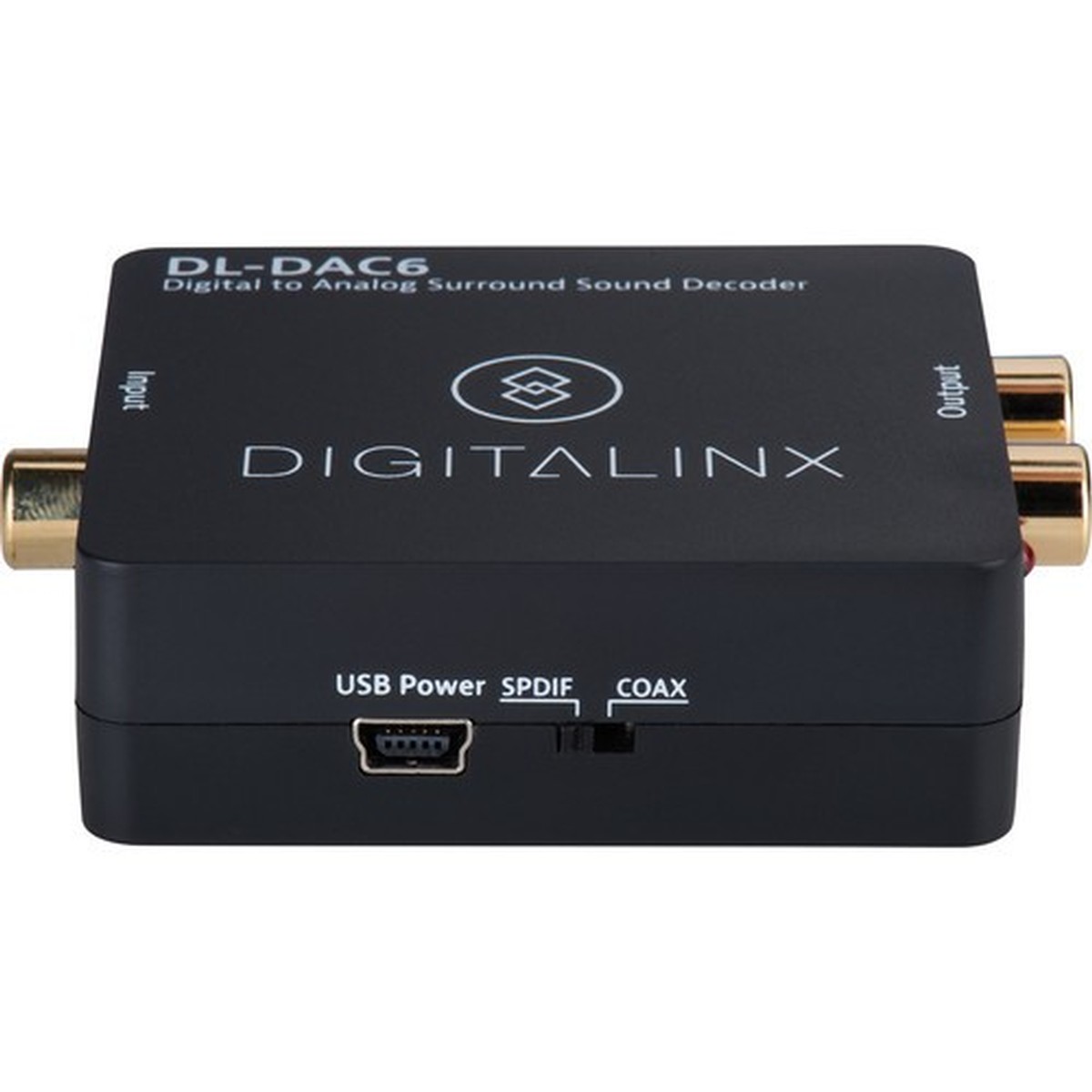

The DigitalLinx DL-DAC6 from Liberty AV is a quality made surround sound to stereo audio converter. This device features optical and digital coaxial input audio connections and an Analog output that is simultaneously available on the 3.5mm jack and the stereo RCA jacks. The DL-DAC6 features a switch to specify which audio input is being used. Making this a perfect device when needing to add digital audio source to analog audio distribution.

Additional features for the DL-DAC6 include:

• Decodes digital surround audio to stereo analog audio

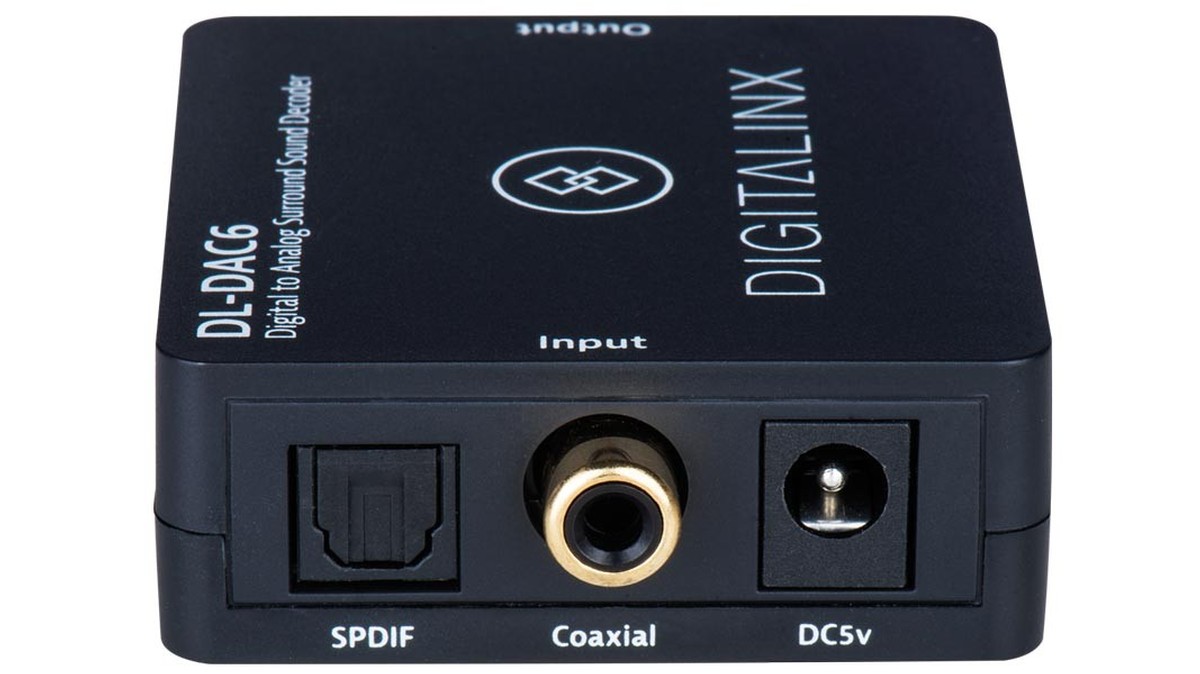

• Digital optical and coaxial audio inputs

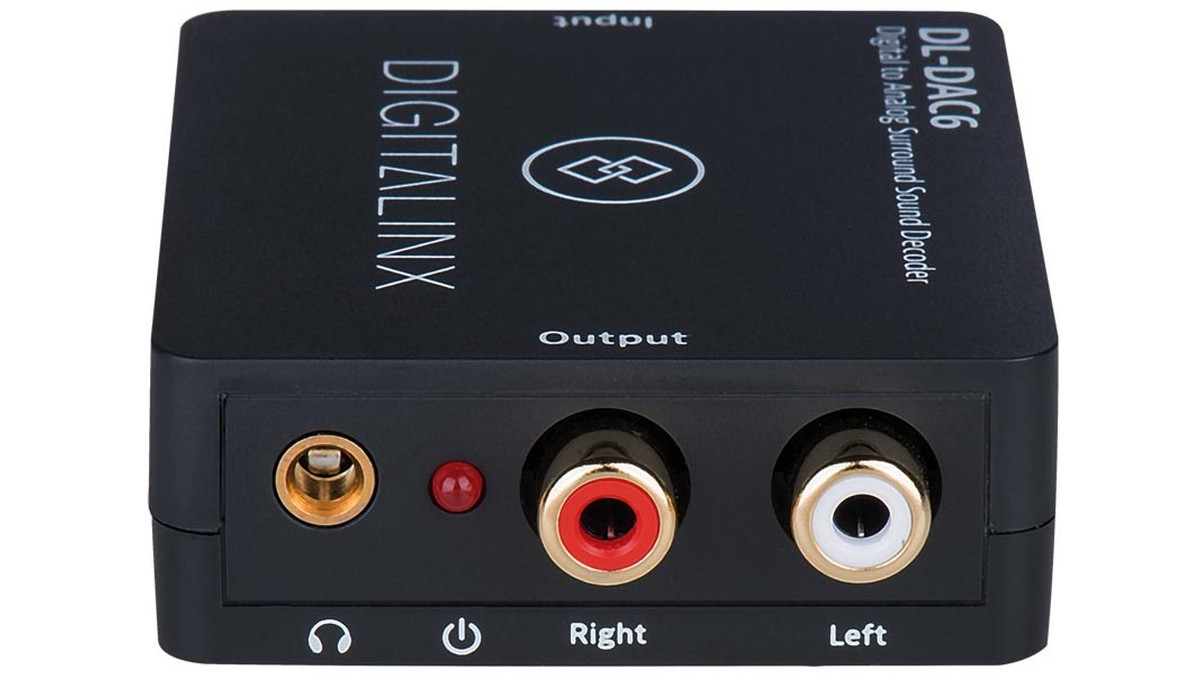

• Analog outputs (3.5mm and RCA) pass audio simultaneously
• Built-in surge protection, power LED

Specifications

• Output Signal to Noise Ratio: 120 dB
• Output Frequency Response: 20 Hz through 20 KHz +- 0.5 dB
• Enclosure: Black ABS Plastic
• Power Supply Input: 100-240V AC at 50/60 Hz
• Power Supply Output: 5V DC
• 1 Amp
• Power Consumption: 2.5 watts (max)
• Dimensions With Connectors (HxDxW): 0.79 x 2.83 x 2.17"
• Regulatory: FCC, CE, RoHS
• Included Accessories: Power Supply
• Warranty: 2 Years

Downloads

• Liberty AV DL-DAC6 Specifications (PDF)
• Liberty AV DL-DAC6 Manual (PDF)
